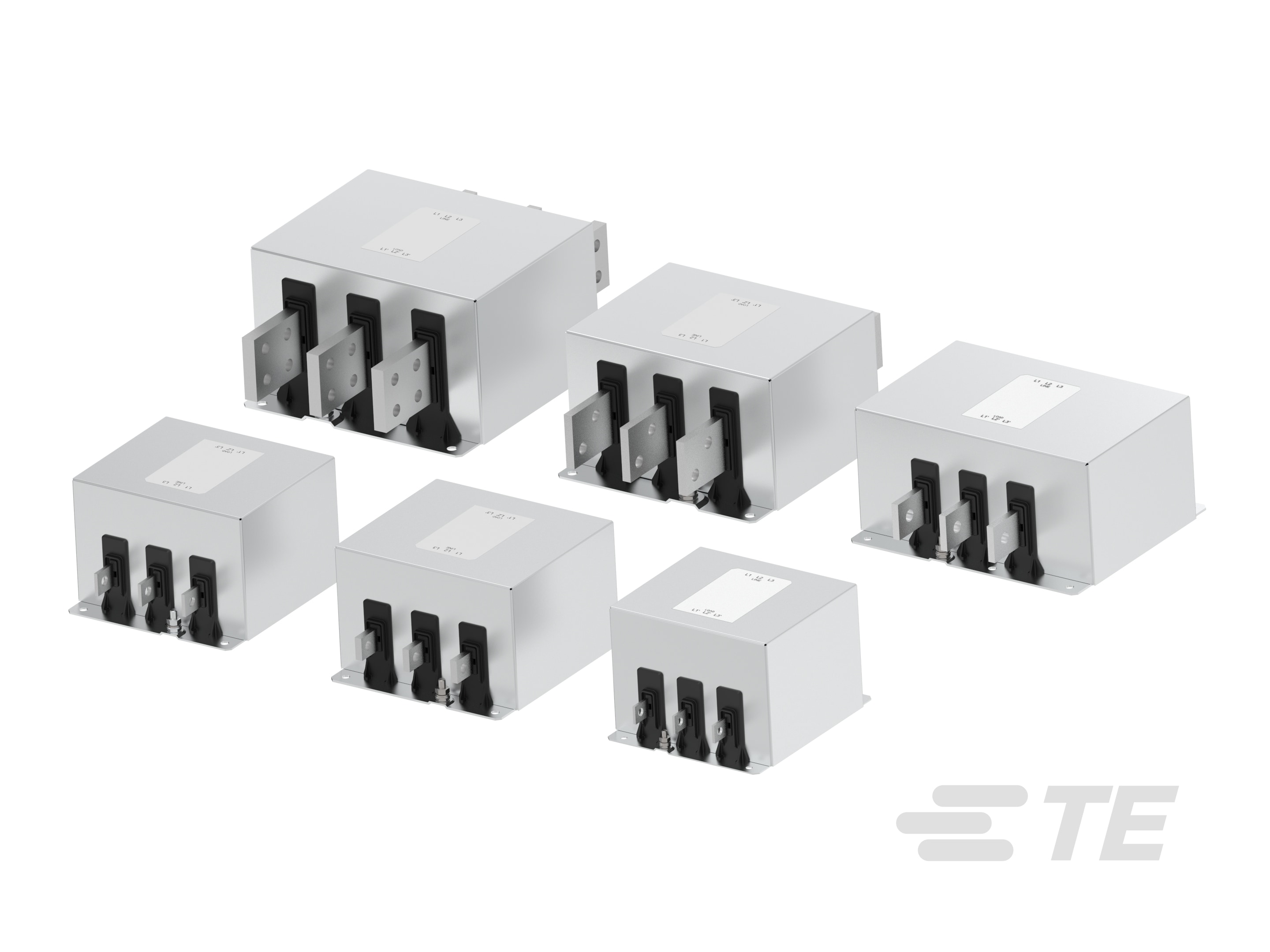

3-Phase Filters, Compact Power Line AC EMC/RFI Filter (FN3310 / FN3311)

3-Phase Filters, Compact Power Line AC EMC/RFI Filter (FN3310 / FN3311)-CAT-P99-F3311
High-current 3-phase EMC/RFI filters rated up to 2300 A. Featuring an extremely compact, lightweight design with a minimal installation footprint. Optimised for standard industrial applications. FN3310 version excludes Cy capacitors to ground for low leakage; FN3311 IT versions are designed for IT power networks.
More Less

Product Features

  • Current Rating (A): 250, 400, 600, 1000, 1500, 2300

  • Input Termination Type : Busbar

  • Output Termination Type : Busbar

  • Wiring Configuration : Three Phase

  • Operating Voltage (VAC): 520, 760

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Filtering Requirements  Unfiltered

  • Input Termination Type  Busbar

  • Output Termination Type  Busbar

Configuration Features

  • Wiring Configuration  Three Phase

Electrical Characteristics

  • Overvoltage Category  II

  • Current Rating (A) 250, 400, 600, 1000, 1500, 2300

  • Operating Voltage (VAC) 520, 760

Body Features

  • Product Weight (g) 2300, 2700, 3100, 3300, 4000, 4500, 5500, 6100, 9900, 11000, 18000, 18200

  • Product Weight (oz) 81.13, 95.23, 109.34, 116.4, 141.09, 158.73, 194, 215.17, 349.21, 388.01, 634.93, 641.98

Mechanical Attachment

  • Product Mount Type  Chassis Mount

Dimensions

  • Product Width (mm) 195, 210, 220, 255, 267, 280, 290, 310, 330

  • Product Width (in) 7.67, 8.26, 8.66, 10.03, 10.51, 11.02, 11.41, 12.2, 12.99

  • Product Length (mm) 170, 175, 190, 195, 220

  • Product Length (in) 6.69, 6.88, 7.48, 7.67, 8.66

  • Product Height (mm) 140, 150, 165

  • Product Height (in) 5.51, 5.9, 6.49

Usage Conditions

  • Operating Temperature Range  -40 – 100 °C [ -40 – 212 °F ]

Operation/Application

  • Cooling Method  Natural Convection

Industry Standards

  • UL Flammability Rating  UL 94V-0

  • Pollution Degree  PD2

  • Certified To  CSA 22.2 No. 8 1986, EN 60721-3, IEC/EN 60939, UL 1283

  • IP Rating  IP00

Reference Number

  • TE Internal Number CAT-P99-F3311
