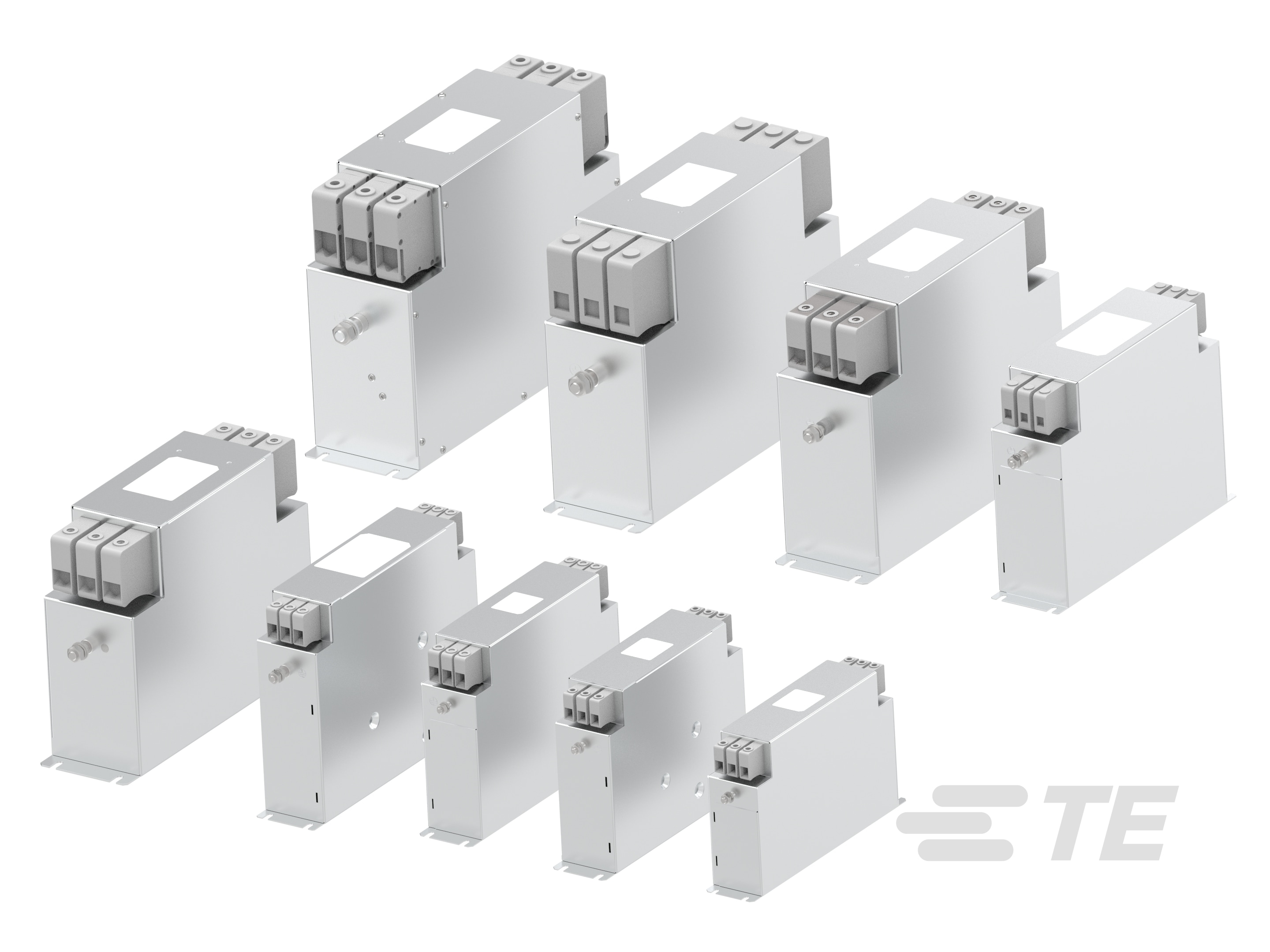

3-Phase Filters, FN3288 Compact High-Performance EMC/RFI Filter for Inverters and Drive Systems

Please review product documents or contact us for the latest agency approval information.

• Filtering Requirements  Unfiltered

• Input Termination Type  Terminal Block

• Output Termination Type  Terminal Block

• Wiring Configuration  DELTA (3 wire + ground) | Three Phase

• Overvoltage Category  III

• Leakage Current (Max) (250VAC, 50Hz) (mA) .1 | .4 | 1.8 | 2.5 | 2.6 | 2.7 | 3.4 | 3.5 | 5.9 | 6 | 6.6 | 7.1 | 7.5 | 12.4

• Current Rating (A) 10 | 16 | 20 | 25 | 40 | 50 | 63 | 80 | 100 | 125 | 160 | 230

• Operating Voltage (VAC) 480 | 530 | 760

• Product Weight (kg) .8 | 1 | 1.1 | 1.2 | 1.3 | 1.5 | 1.6 | 1.8 | 1.9 | 2.5 | 2.7 | 2.8 | 2.9 | 3.3 | 3.5 | 4.3 | 4.6 | 4.9 | 5 | 5.1 | 5.3 | 5.4 | 5.8 | 5.9 | 6.6 | 7.2 | 9.3

• Product Weight (lb) 1.764 | 2.205 | 2.426 | 2.646 | 2.867 | 3.307 | 3.528 | 3.969 | 4.189 | 5.512 | 5.953 | 6.173 | 6.394 | 7.276 | 7.717 | 9.48 | 10.142 | 10.803 | 11.024 | 11.244 | 11.685 | 11.905 | 12.787 | 13.008 | 14.551 | 15.874 | 20.503

• Product Mount Type  Chassis Mount

• Product Width (mm) 40 | 45 | 50 | 55 | 60 | 65 | 70 | 80 | 90 | 95 | 100 | 105

• Product Width (in) 1.57 | 1.77 | 1.96 | 2.16 | 2.36 | 2.55 | 2.75 | 3.14 | 3.54 | 3.74 | 3.93 | 4.13

• Product Length (mm) 185 | 195 | 210 | 230 | 235 | 245 | 255 | 265 | 290 | 300 | 310 | 320 | 330 | 350

• Product Length (in) 7.28 | 7.67 | 8.26 | 9.05 | 9.25 | 9.64 | 10.03 | 10.43 | 11.41 | 11.81 | 12.2 | 12.59 | 12.99 | 13.77

• Product Height (mm) 120 | 132 | 140 | 145 | 159 | 167 | 168 | 180 | 191 | 194 | 205 | 210 | 220 | 225 | 230 | 240

• Product Height (in) 4.72 | 5.19 | 5.51 | 5.7 | 6.25 | 6.57 | 6.61 | 7.08 | 7.51 | 7.63 | 8.07 | 8.26 | 8.66 | 8.85 | 9.05 | 9.44

• Operating Temperature Range  -40 – 100 °C [ -40 – 212 °F ]

• Cooling Method  Natural Convection
