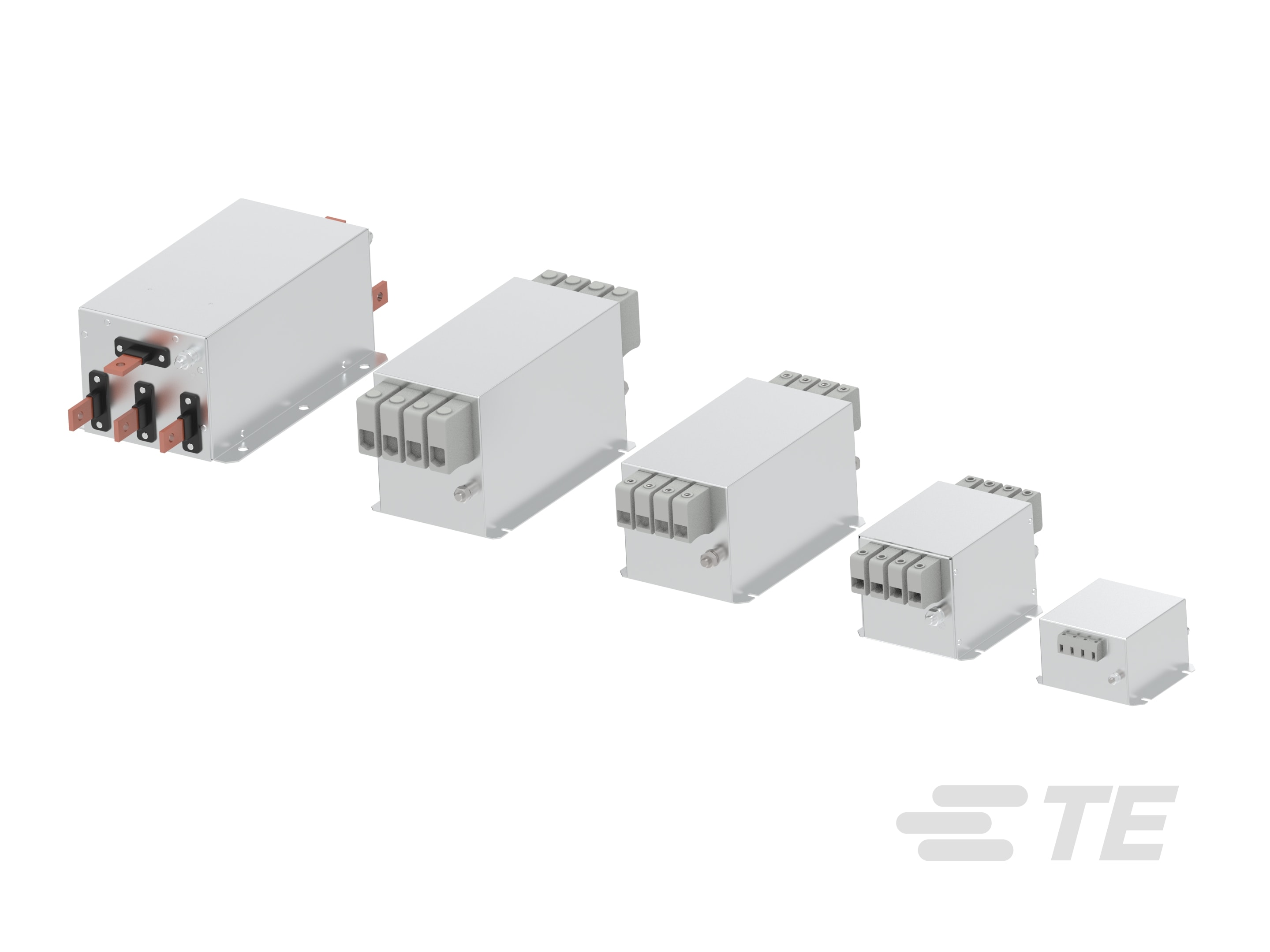

3-Phase Filters, High-End Line Filter for Industrial Machinery and Equipment

3-Phase Filters, High-End Line Filter for Industrial Machinery and Equipment-CAT-P99-F3280
At TE, now available up to 600 A, this high-end EMC/RFI filter combines exceptional attenuation performance with low leakage current. Designed for compact spaces, it’s optimised for industrial machinery and suitable for use in mixed or domestic environments (Class A/B). Also improves system immunity when connected directly to the mains input.
More Less
Connect with Us

Product Features

  • Current Rating (A): 8 | 16 | 25 | 36 | 64 | 80 | 120 | 160 | 200 | 300 | 400 | 600

  • Input Termination Type : Busbar | Terminal Block

  • Output Termination Type : Busbar | Terminal Block

  • Wiring Configuration : DELTA (3 wire + ground)

  • Operating Voltage (VAC): 520

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Filtering Requirements  Unfiltered

  • Input Termination Type  Busbar | Terminal Block

  • Output Termination Type  Busbar | Terminal Block

Configuration Features

  • Wiring Configuration  DELTA (3 wire + ground)

Electrical Characteristics

  • Overvoltage Category  II

  • Leakage Current (Max) (250VAC, 50Hz) (mA) 10.7 | 42.1

  • Current Rating (A) 8 | 16 | 25 | 36 | 64 | 80 | 120 | 160 | 200 | 300 | 400 | 600

  • Operating Voltage (VAC) 520

Body Features

  • Product Weight (g) 800 | 1300 | 1600 | 2700 | 4100 | 5900 | 7900 | 8500 | 10000 | 11000

  • Product Weight (oz) 28.21 | 45.85 | 56.43 | 95.23 | 144.62 | 208.11 | 278.66 | 299.82 | 352.73 | 388.01

Mechanical Attachment

  • Product Mount Type  Chassis Mount

Dimensions

  • Product Width (mm) 115 | 125 | 135 | 140 | 170

  • Product Width (in) 4.52 | 4.92 | 5.31 | 5.51 | 6.69

  • Product Length (mm) 120 | 130 | 160 | 230 | 250 | 280 | 325

  • Product Length (in) 4.72 | 5.11 | 6.29 | 9.05 | 9.84 | 11.02 | 12.79

  • Product Height (mm) 80 | 115 | 125 | 140 | 150 | 170

  • Product Height (in) 3.14 | 4.52 | 4.92 | 5.51 | 5.9 | 6.69

Usage Conditions

  • Operating Temperature Range  -25 – 100 °C [ -13 – 212 °F ]

Operation/Application

  • Cooling Method  Natural Convection

Industry Standards

  • UL Flammability Rating  UL 94V-2

  • Pollution Degree  PD2

  • Certified To  CSA 22.2 No. 8 1986 | IEC/EN 60939 | UL 1283

  • IP Rating  IP00 | IP20

Reference Number

  • TE Internal Number CAT-P99-F3280
