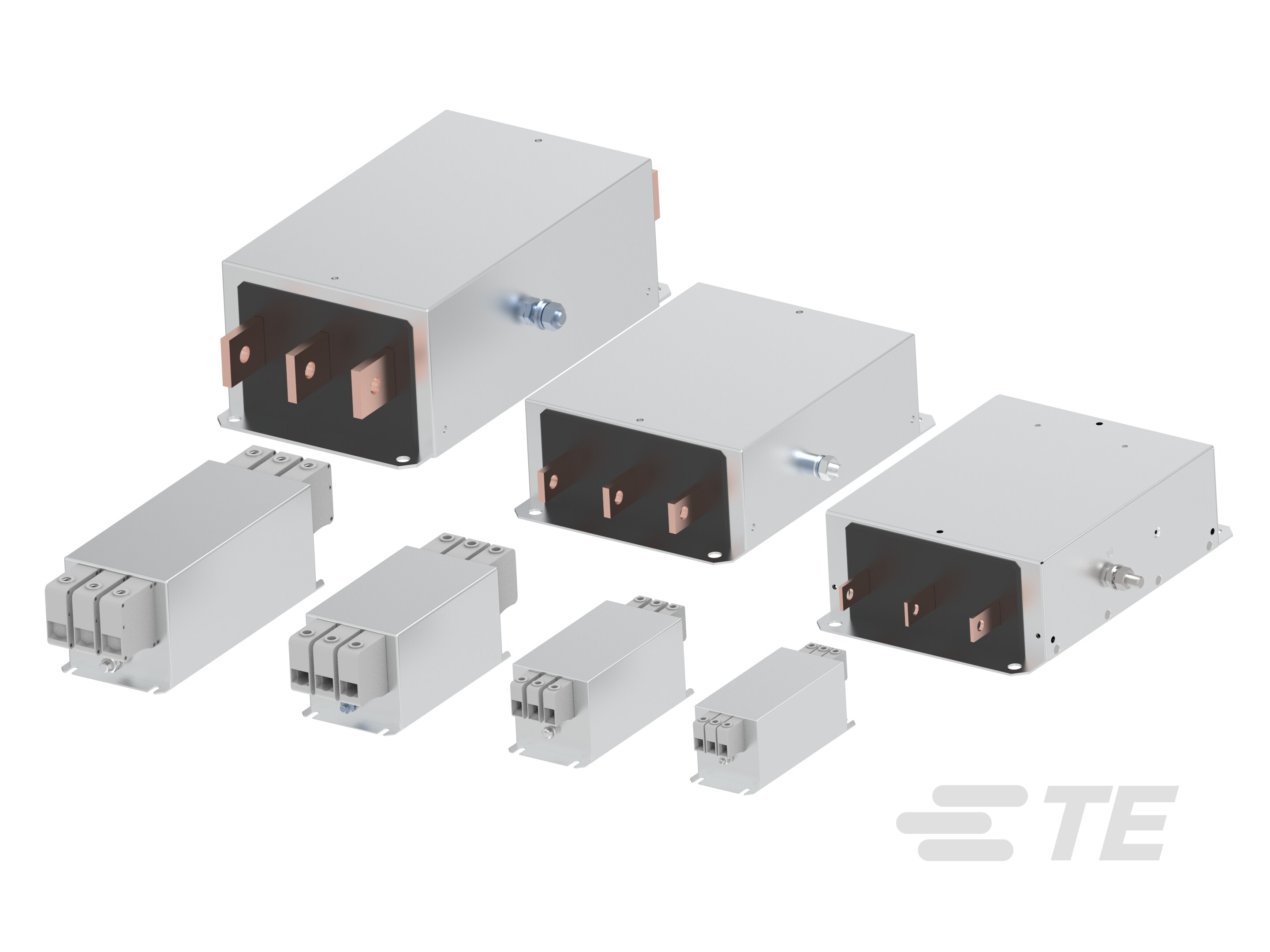

3-Phase Filters FN3270, Compact EMC/RFI Filter for Industrial Motor Drives

3-Phase Filters FN3270, Compact EMC/RFI Filter for Industrial Motor Drives-CAT-P99-F3270
Compact and lightweight filter optimized for industrial motor drive applications. Ensures easy installation with minimal space requirements and provides excellent attenuation performance per EN 61800-3/A11. Optional protective covers are available for added safety.
More Less

Product Features

  • Current Rating (A): 10, 20, 35, 50, 65, 80, 100, 150, 200, 250, 320, 400, 600, 800, 1000

  • Input Termination Type : Busbar, Terminal Block

  • Output Termination Type : Busbar, Terminal Block

  • Wiring Configuration : Three Phase

  • Operating Voltage (VAC): 480, 520

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Filtering Requirements  Unfiltered

  • Input Termination Type  Busbar, Terminal Block

  • Output Termination Type  Busbar, Terminal Block

Configuration Features

  • Wiring Configuration  Three Phase

Electrical Characteristics

  • Overvoltage Category  II

  • Leakage Current (Max) (250VAC, 50Hz) (mA) .4, .9, 3.1, 3.4, 6.9

  • Current Rating (A) 10, 20, 35, 50, 65, 80, 100, 150, 200, 250, 320, 400, 600, 800, 1000

  • Operating Voltage (VAC) 480, 520

Body Features

  • Product Weight (g) 400, 500, 700, 1200, 1300, 2200, 2600, 6100, 7200, 7700, 15800

  • Product Weight (oz) 14.1, 17.63, 24.69, 42.32, 45.85, 77.6, 91.71, 215.17, 253.97, 271.6, 557.32

Mechanical Attachment

  • Product Mount Type  Chassis Mount

Dimensions

  • Product Width (mm) 58, 70, 85, 95, 190, 200

  • Product Width (in) 2.28, 2.75, 3.34, 3.74, 7.48, 7.87

  • Product Length (mm) 120, 130, 140, 170, 200, 240, 310, 320

  • Product Length (in) 4.72, 5.11, 5.51, 6.69, 7.87, 9.44, 12.2, 12.59

  • Product Height (mm) 58, 68, 80, 86, 90, 125

  • Product Height (in) 2.28, 2.67, 3.14, 3.38, 3.54, 4.92

Usage Conditions

  • Operating Temperature Range  -25 – 100 °C [ -13 – 212 °F ]

Operation/Application

  • Cooling Method  Natural Convection

Industry Standards

  • UL Flammability Rating  UL 94V-0

  • Pollution Degree  PD2

  • Certified To  CSA 22.2 No. 8 1986, IEC/EN 60939, UL 1283

  • IP Rating  IP00, IP20

Reference Number

  • TE Internal Number CAT-P99-F3270
