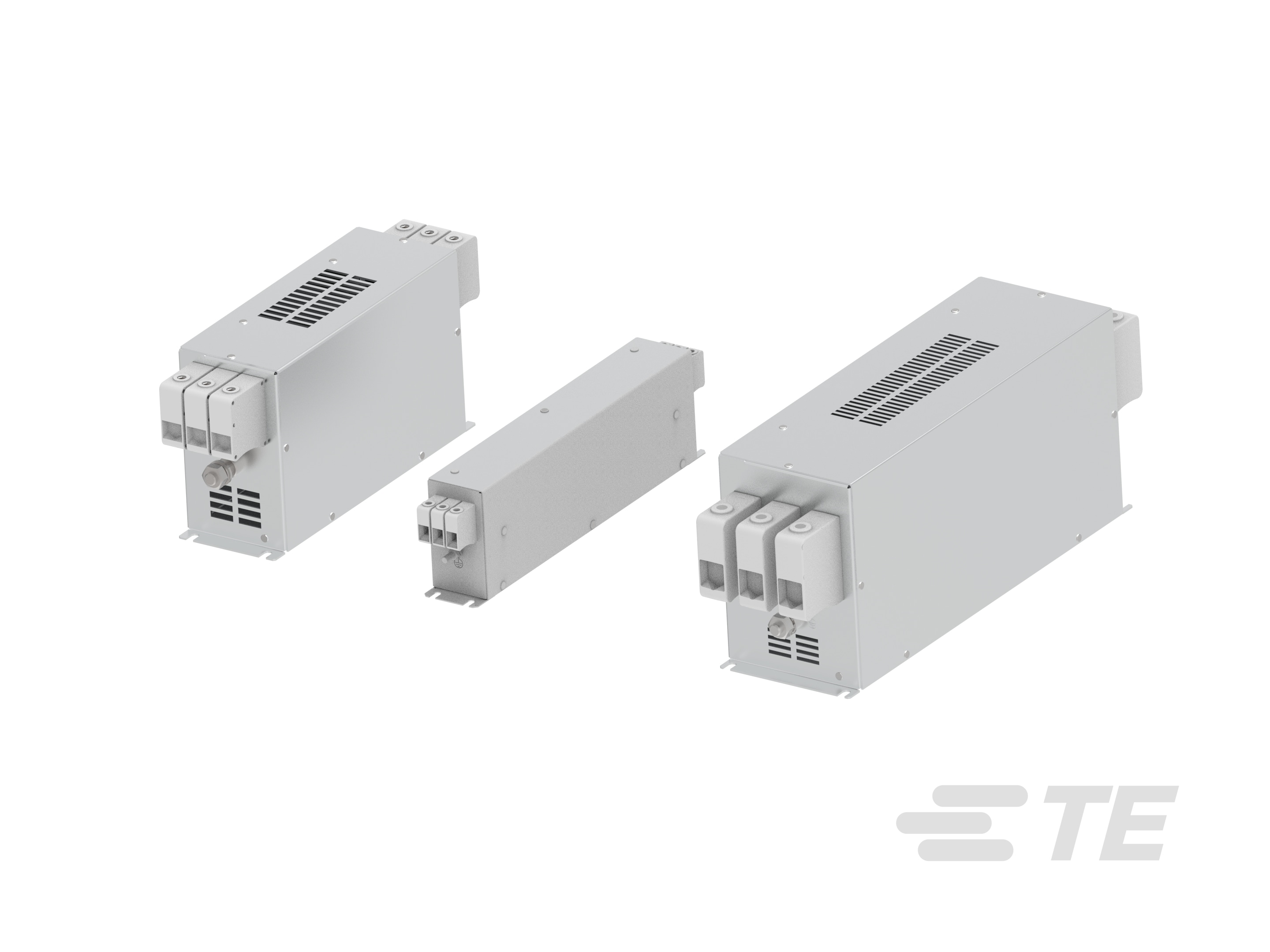

3-Phase Filters, Ultra-Compact EMC/RFI Filter for Motor Drive Applications

3-Phase Filters, Ultra-Compact EMC/RFI Filter for Motor Drive Applications-CAT-P99-F3258
New with solid safety connector blocks across all models. Offers exceptional attenuation from 150 kHz to 30 MHz and excellent saturation resistance for cable lengths up to 50 m. One of the most compact and slim filters in its class.
More Less

Product Features

  • Current Rating (A): 7, 16, 30, 42, 55, 75, 100, 130, 180

  • Input Termination Type : Terminal Block

  • Output Termination Type : Terminal Block

  • Wiring Configuration : DELTA (3 wire + ground), Three Phase

  • Operating Voltage (VAC): 480, 520

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Filtering Requirements  Unfiltered

  • Input Termination Type  Terminal Block

  • Output Termination Type  Terminal Block

Configuration Features

  • Wiring Configuration  DELTA (3 wire + ground), Three Phase

Electrical Characteristics

  • Overvoltage Category  II

  • Leakage Current (Max) (250VAC, 50Hz) (mA) 4.3, 4.7

  • Current Rating (A) 7, 16, 30, 42, 55, 75, 100, 130, 180

  • Operating Voltage (VAC) 480, 520

Body Features

  • Product Weight (g) 500, 600, 800, 1200, 1400, 2000, 2700, 4300, 4500

  • Product Weight (oz) 17.63, 21.16, 28.21, 42.32, 49.38, 70.54, 95.23, 151.67, 158.73

Mechanical Attachment

  • Product Mount Type  Chassis Mount

Dimensions

  • Product Width (mm) 40, 45, 50, 80, 85, 90, 120

  • Product Width (in) 1.57, 1.77, 1.96, 3.14, 3.34, 3.54, 4.72

  • Product Length (mm) 160, 220, 240, 280, 350

  • Product Length (in) 6.29, 8.66, 9.44, 11.02, 13.77

  • Product Height (mm) 70, 85, 90, 135, 150, 170

  • Product Height (in) 2.75, 3.34, 3.54, 5.31, 5.9, 6.69

Usage Conditions

  • Operating Temperature Range  -25 – 100 °C [ -13 – 212 °F ]

Operation/Application

  • Cooling Method  Active Air Cooling, Natural Convection

Industry Standards

  • UL Flammability Rating  UL 94V-0

  • Pollution Degree  PD2

  • Certified To  CSA 22.2 No. 8 1986, IEC/EN 60939, UL 1283

  • IP Rating  IP20

Reference Number

  • TE Internal Number CAT-P99-F3258
