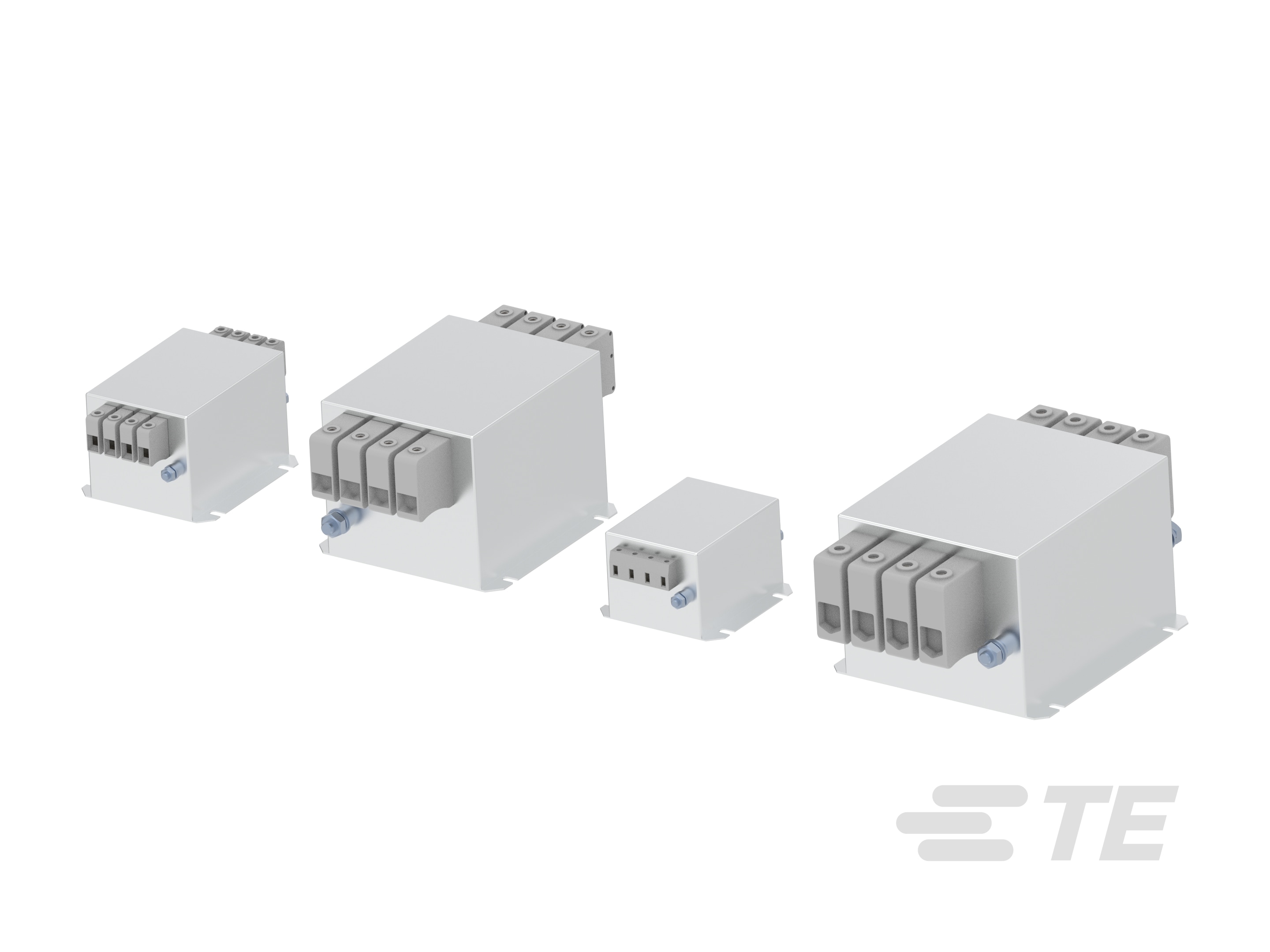

3-Phase Filters, Compact Line Filter for Industrial Equipment

3-Phase Filters, Compact Line Filter for Industrial Equipment-CAT-P99-F3256
Compact and Space-saving EMC/RFI filter designed for industrial machinery. Delivers high attenuation with low leakage current. Compliant with EN 50370-1 machine tool standards and enhances immunity when connected at the mains input.
More Less

Product Features

  • Current Rating (A): 8, 16, 25, 36, 64, 80, 120, 160

  • Input Termination Type : Terminal Block

  • Output Termination Type : Terminal Block

  • Wiring Configuration : DELTA (3 wire + ground)

  • Operating Voltage (VAC): 520

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Filtering Requirements  Unfiltered

  • Input Termination Type  Terminal Block

  • Output Termination Type  Terminal Block

Configuration Features

  • Wiring Configuration  DELTA (3 wire + ground)

Electrical Characteristics

  • Overvoltage Category  II

  • Leakage Current (Max) (250VAC, 50Hz) (mA) .6, .9, 1.3

  • Current Rating (A) 8, 16, 25, 36, 64, 80, 120, 160

  • Operating Voltage (VAC) 520

Body Features

  • Product Weight (g) 600, 700, 1100, 1200, 2300, 3500, 4700, 5700

  • Product Weight (oz) 21.16, 24.69, 38.8, 42.32, 81.13, 123.45, 165.78, 201.06

Mechanical Attachment

  • Product Mount Type  Chassis Mount

Dimensions

  • Product Width (mm) 82, 90, 115, 135, 140, 160

  • Product Width (in) 3.22, 3.54, 4.52, 5.31, 5.51, 6.29

  • Product Length (mm) 115, 120.9, 155, 179, 251, 255

  • Product Length (in) 4.52, 4.75, 6.1, 7.04, 9.88, 10.03

  • Product Height (mm) 70, 85, 115, 125, 130

  • Product Height (in) 2.75, 3.34, 4.52, 4.92, 5.11

Usage Conditions

  • Operating Temperature Range  -25 – 100 °C [ -13 – 212 °F ]

Operation/Application

  • Cooling Method  Natural Convection

Industry Standards

  • UL Flammability Rating  UL 94V-2

  • Pollution Degree  PD2

  • Certified To  CSA 22.2 No. 8 1986, IEC/EN 60939, UL 1283

  • IP Rating  IP20

Reference Number

  • TE Internal Number CAT-P99-F3256
