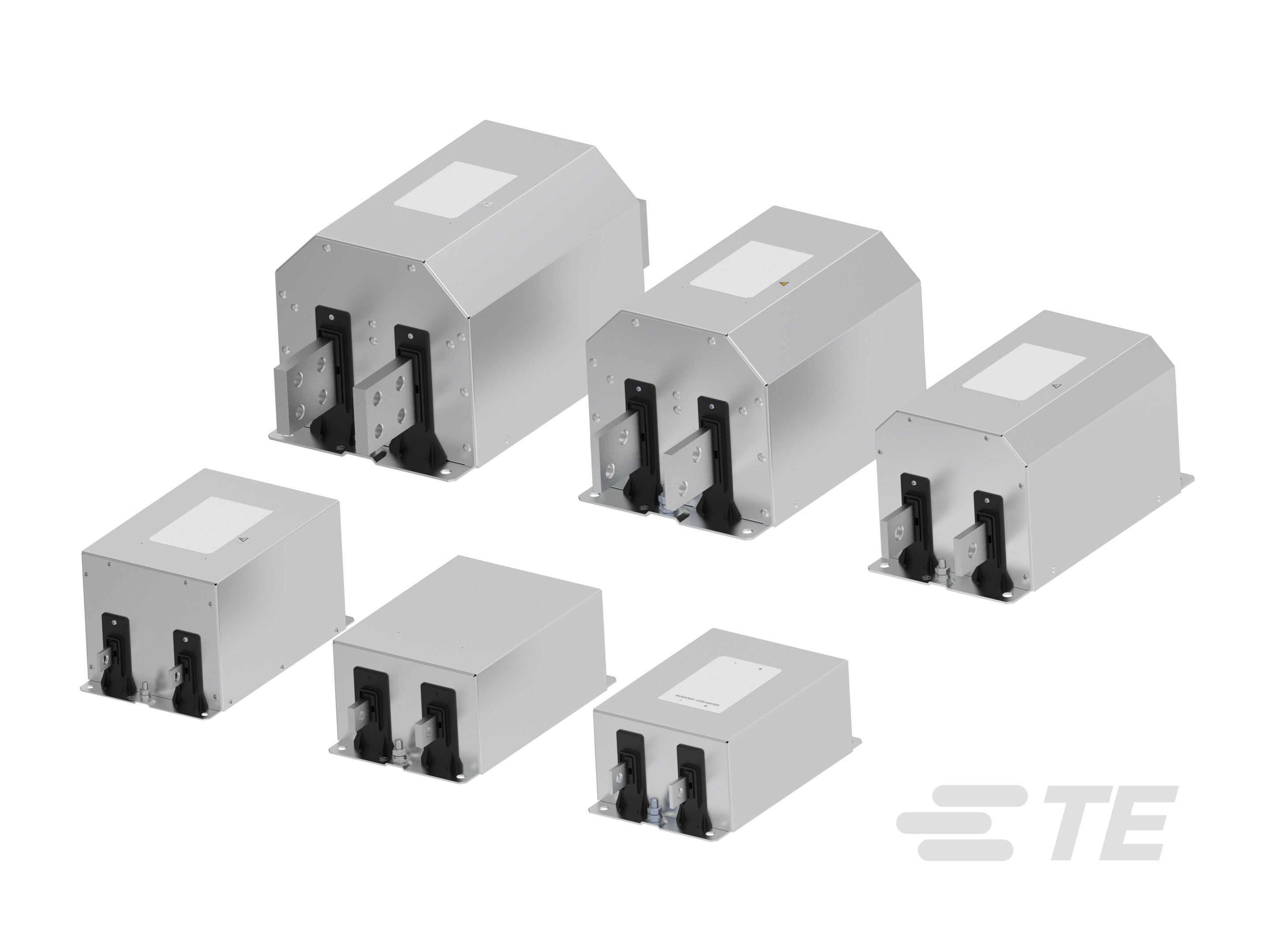

Compact High-Current DC EMC/RFI Filter for Solar Applications

Compact High-Current DC EMC/RFI Filter for Solar Applications-CAT-P99-F2211
Effectively reduces conducted emissions toward the solar panel and minimises the risk of EMI radiation. Supports longer panel life by preventing premature ageing. Enables compliance with global EMC standards. Industry’s most compact standard DC filter solution—FN2210 variant available awithout Cy capacitors to ground for optimised PV system design.
More Less

Product Features

  • Current Rating (A): 250, 400, 600, 1000, 1500, 2300

  • Operating Voltage (VDC): 1000, 1500

  • Input Termination Type : Busbar

  • Output Termination Type : Busbar

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Filtering Requirements  Unfiltered

  • Input Termination Type  Busbar

  • Output Termination Type  Busbar

Electrical Characteristics

  • Overvoltage Category  II

  • Current Rating (A) 250, 400, 600, 1000, 1500, 2300

  • Operating Voltage (VDC) 1000, 1500

Body Features

  • Product Weight (g) 3020, 3300, 4000, 4150, 4600, 4800, 6750, 6800, 7100, 11500, 11800, 12200, 12350, 18100, 18300

  • Product Weight (oz) 106.52, 116.4, 141.09, 146.38, 162.26, 169.31, 238.09, 239.86, 250.44, 405.65, 416.23, 430.34, 435.63, 638.45, 645.51

Mechanical Attachment

  • Product Mount Type  Chassis Mount

Dimensions

  • Product Width (mm) 160, 175, 180, 215, 230

  • Product Width (in) 6.29, 6.88, 7.08, 8.46, 9.05

  • Product Length (mm) 265, 275, 285, 310, 315, 380, 440, 495

  • Product Length (in) 10.43, 10.82, 11.22, 12.2, 12.4, 14.96, 17.32, 19.48

  • Product Height (mm) 135, 140, 150, 160, 165, 200, 210

  • Product Height (in) 5.31, 5.51, 5.9, 6.29, 6.49, 7.87, 8.26

Usage Conditions

  • Operating Temperature Range  -40 – 100 °C [ -40 – 212 °F ]

Operation/Application

  • Cooling Method  Natural Convection

Industry Standards

  • UL Flammability Rating  UL 94V-0

  • Pollution Degree  PD2

  • Certified To  CSA 22.2 No. 8 1986, EN 60721-3, EN 62109, IEC/EN 60939, UL 1283

  • IP Rating  IP00

Reference Number

  • TE Internal Number CAT-P99-F2211
