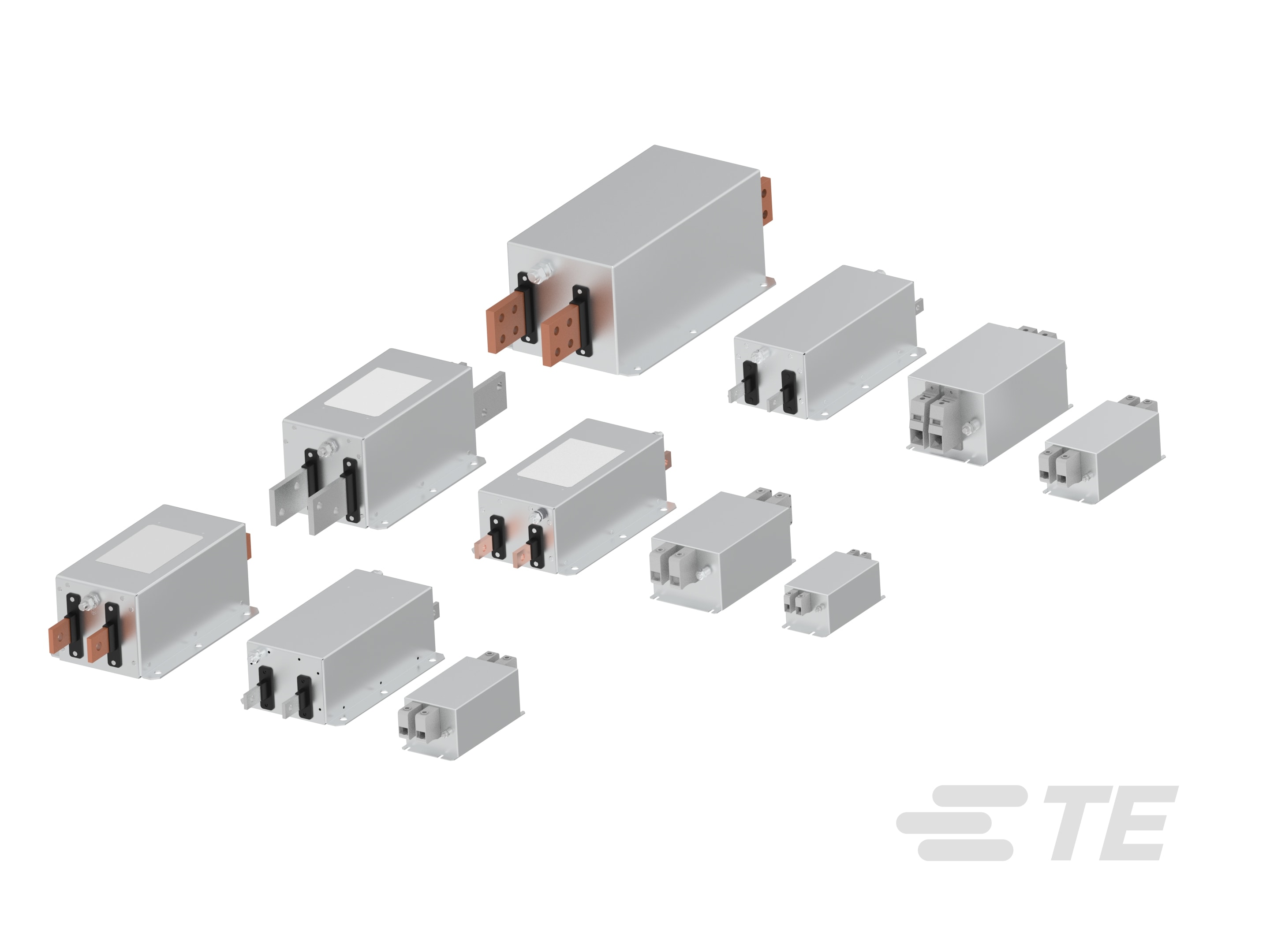

High-Performance EMC/RFI Filter for PV Inverters, Up to 2300 A

High-Performance EMC/RFI Filter for PV Inverters, Up to 2300 A-CAT-P99-F2200
Minimising emissions directed toward the solar panel reduces the risk of EMI radiation. Protects solar panels from premature ageing caused by high-frequency (HF) leakage currents. Ensures compliance with international EMC standards for the complete PV system. Industry’s most compact standard filter solution—also available in B types without capacitors to ground. Now available with current ratings up to 2300 A.
More Less
Connect with Us

Product Features

  • Current Rating (A): 25 | 50 | 75 | 100 | 150 | 250 | 400 | 600 | 800 | 1000 | 1500 | 2300

  • Operating Voltage (VDC): 1200

  • Input Termination Type : Busbar | Terminal Block

  • Output Termination Type : Busbar | Terminal Block

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Filtering Requirements  Unfiltered

  • Input Termination Type  Busbar | Terminal Block

  • Output Termination Type  Busbar | Terminal Block

Electrical Characteristics

  • Overvoltage Category  II

  • Current Rating (A) 25 | 50 | 75 | 100 | 150 | 250 | 400 | 600 | 800 | 1000 | 1500 | 2300

  • Operating Voltage (VDC) 1200

Body Features

  • Product Weight (g) 900 | 1600 | 1700 | 2700 | 4900 | 5000 | 6100 | 6500 | 9300 | 9400 | 14600 | 25000

  • Product Weight (oz) 31.74 | 56.43 | 59.96 | 95.23 | 172.84 | 176.36 | 215.17 | 229.28 | 328.04 | 331.57 | 514.99 | 881.84

Mechanical Attachment

  • Product Mount Type  Chassis Mount

Dimensions

  • Product Width (mm) 80 | 95 | 125 | 140 | 180 | 190 | 200 | 250

  • Product Width (in) 3.14 | 3.74 | 4.92 | 5.51 | 7.08 | 7.48 | 7.87 | 9.84

  • Product Length (mm) 170 | 200 | 220 | 250 | 300 | 400

  • Product Length (in) 6.69 | 7.87 | 8.66 | 9.84 | 11.81 | 15.74

  • Product Height (mm) 65 | 80 | 95 | 110 | 115 | 140 | 150 | 180

  • Product Height (in) 2.55 | 3.14 | 3.74 | 4.33 | 4.52 | 5.51 | 5.9 | 7.08

Usage Conditions

  • Operating Temperature Range  -40 – 100 °C [ -40 – 212 °F ]

Operation/Application

  • Cooling Method  Natural Convection

Industry Standards

  • UL Flammability Rating  UL 94V-2

  • Pollution Degree  PD2

  • Certified To  CSA 22.2 No. 8 1986 | EN 60721-3 | EN 62109 | IEC/EN 60939 | UL 1283

  • IP Rating  IP00 | IP20

Reference Number

  • TE Internal Number CAT-P99-F2200
