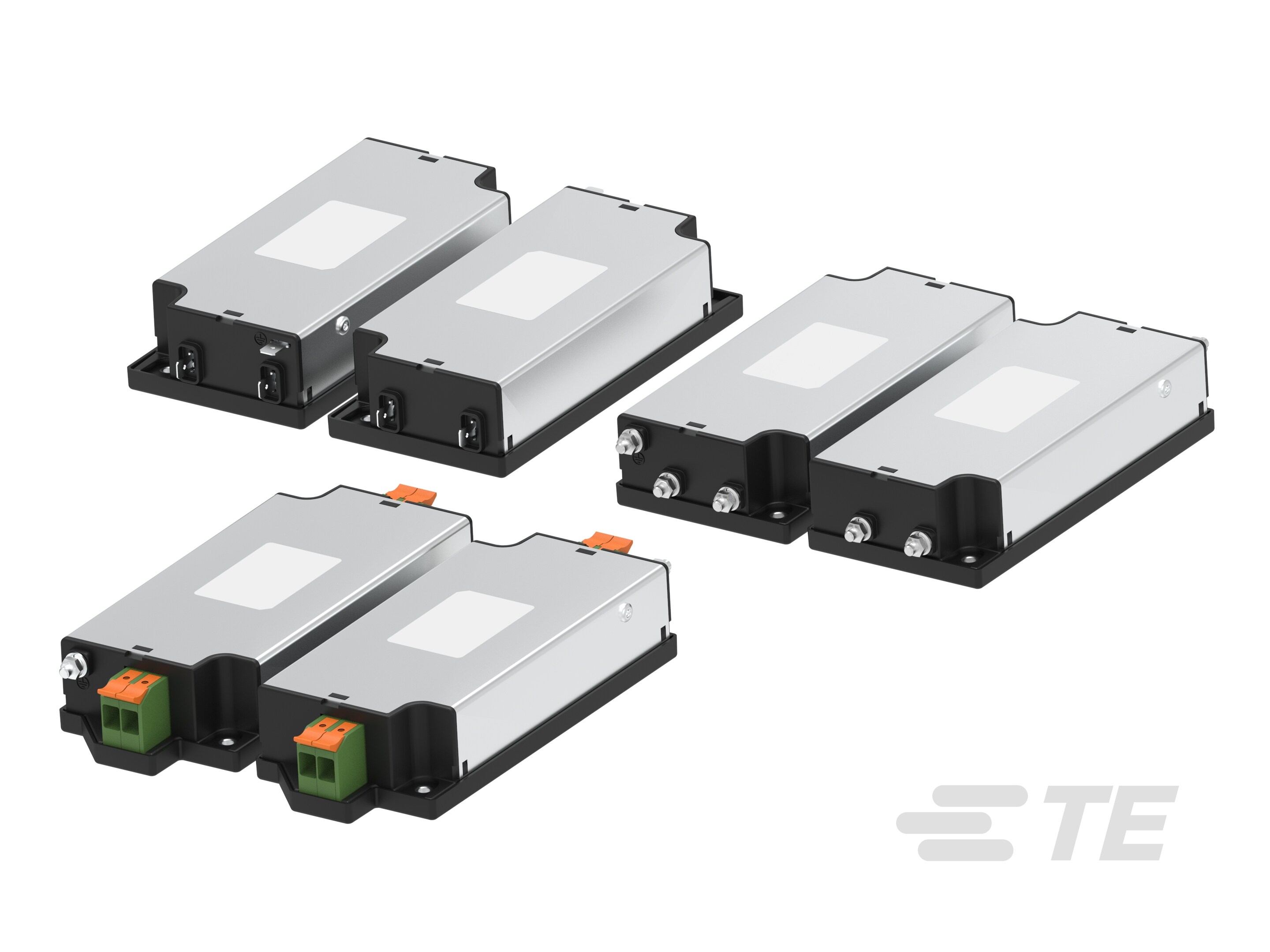

Very High Performance Single Phase Filters FN2520, Low Profile High Performance EMC/RFI Filter

Very High Performance Single Phase Filters FN2520, Low Profile High Performance EMC/RFI Filter-CAT-P97-F2520
TE Connectivity's FN2520 series offers excellent EMC filtering for robotics, data centers, and a variety of other applications, with available terminals including fast on, wire leads, bolt, and clamps, voltage rating up to 277 VAC or 400 VDC, fits within 1 height unit of a 19 inch rack, operates up to 50 °C, and delivers two stage filter performance.
More Less
Connect with Us

Product Features

  • Current Rating (A): 10 | 15 | 20 | 25 | 32

  • Input Termination Type : FASTON | Litz Wire | Terminal Block | Threaded Stud

  • Output Termination Type : FASTON | Litz Wire | Terminal Block | Threaded Stud

  • Leakage Current (Max) (120VAC, 60Hz) (mA): .43

  • Leakage Current (Max) (250VAC, 50Hz) (mA): .82 | 17.4

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Filtering Requirements  Unfiltered

  • Input Termination Type  FASTON | Litz Wire | Terminal Block | Threaded Stud

  • Output Termination Type  FASTON | Litz Wire | Terminal Block | Threaded Stud

Electrical Characteristics

  • Inductance L1 (µH) .9 | 1.5 | 2.4 | 4 | 8.3

  • Overvoltage Category  II

  • Capacitance Cx1  1

  • Capacitance Cy1  4.7

  • Current Rating (A) 10 | 15 | 20 | 25 | 32

  • Leakage Current (Max) (120VAC, 60Hz) (mA) .43

  • Leakage Current (Max) (250VAC, 50Hz) (mA) .82 | 17.4

  • Operating Voltage (VAC) 277

Body Features

  • Product Weight (kg) .41 | .417 | .418 | .42 | .425 | .438 | .439 | .444 | .445 | .453 | .46 | .482 | .492 | .505 | .521 | .581

  • Product Weight (lb) .904 | .92 | .922 | .926 | .937 | .966 | .968 | .979 | .982 | .999 | 1.015 | 1.063 | 1.085 | 1.114 | 1.149 | 1.281

Mechanical Attachment

  • Product Mount Type  Chassis Mount

Dimensions

  • Product Width  73 mm [ 2.87 in ]

  • Product Length  149.4 mm [ 5.88 in ]

  • Product Height  35 mm [ 1.37 in ]

Usage Conditions

  • Operating Temperature Range  -40 – 85 °C [ -40 – 185 °F ]

Operation/Application

  • Cooling Method  Natural Convection

  • Operating Altitude (Max) (m) 2000

Industry Standards

  • UL Flammability Rating  UL 94V-0

  • Pollution Degree  PD2

  • Certified To  CSA 22.2 No. 8-13 | GB/T 15287 | UL/IEC 60939-3

  • IP Rating  IP00
