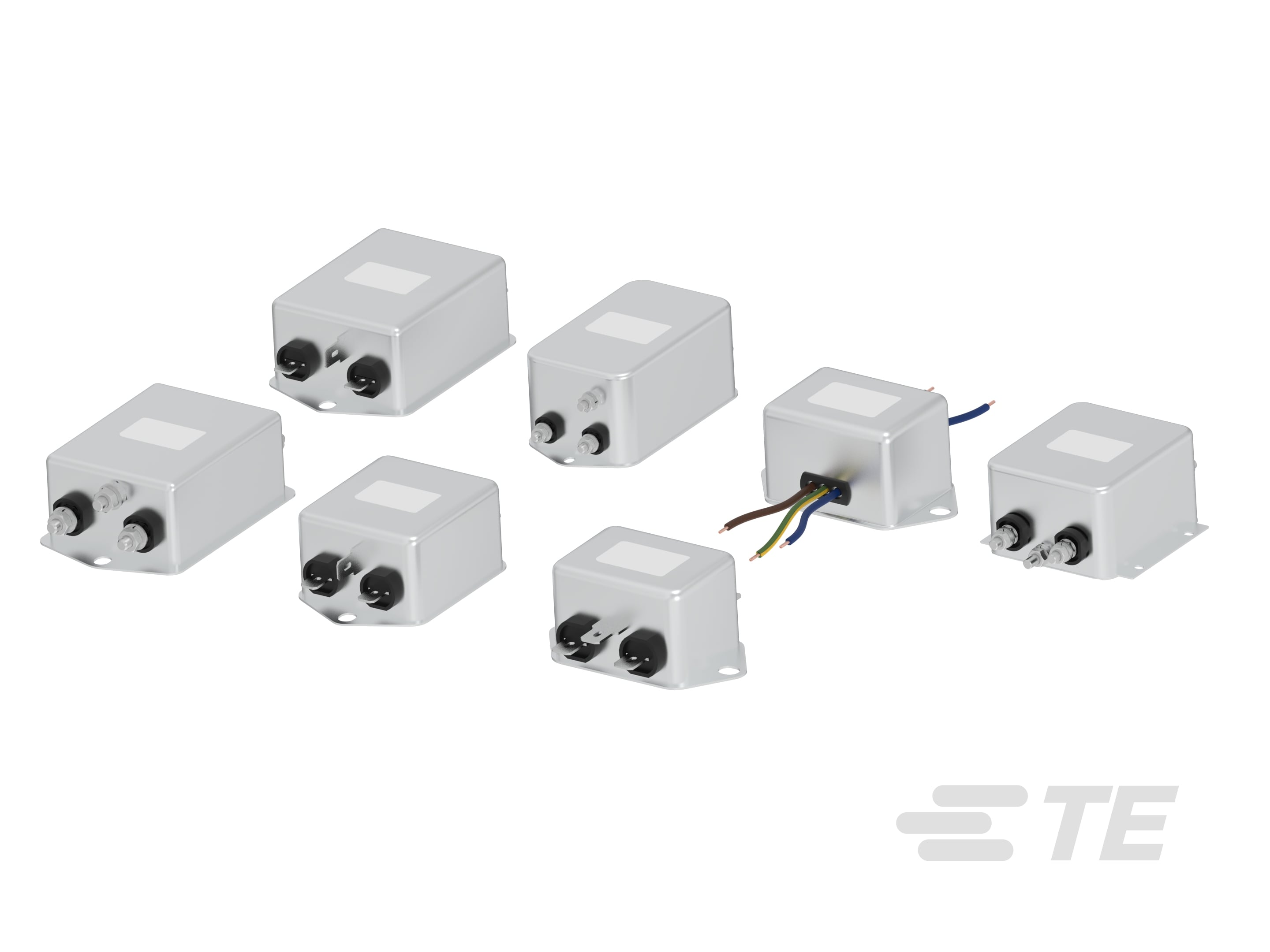

Product Type Features
-
Filtering Requirements
Unfiltered
-
Input Termination Type
FASTON | Litz Wire | Threaded Stud
-
Output Termination Type
FASTON | Litz Wire | Threaded Stud
Electrical Characteristics
-
Inductance L1 (µH)
.6 | .65 | .67 | .7 | .8 | 1 | 2.5 | 12
-
Overvoltage Category
II
-
Capacitance Cx1
.15 | .47 | 1.5
-
Capacitance Cy1
.47 | 4.7 | 10
-
Current Rating (A)
1 | 3 | 6 | 10 | 12 | 16 | 20 | 30 | 60
-
Leakage Current (Max) (120VAC, 60Hz) (mA)
0 | .04 | .38 | .45
-
Leakage Current (Max) (250VAC, 50Hz) (mA)
0 | .07 | .66 | .79
-
Operating Voltage (VAC)
250
Body Features
-
Product Weight (g)
55 | 70 | 75 | 80 | 85 | 93 | 100 | 140 | 170 | 210 | 225 | 232 | 356 | 470 | 890 | 1100
-
Product Weight (oz)
1.94 | 2.46 | 2.64 | 2.82 | 2.99 | 3.28 | 3.52 | 4.93 | 5.99 | 7.4 | 7.93 | 8.18 | 12.55 | 16.57 | 31.39 | 38.8
Mechanical Attachment
-
Product Mount Type
Chassis Mount
Dimensions
-
Product Width (mm)
32.5 | 44.5 | 49.8 | 56 | 84.5
-
Product Width (in)
1.27 | 1.75 | 1.96 | 2.2 | 3.32
-
Product Length (mm)
43.5 | 50.5 | 64.8 | 94 | 99.5
-
Product Length (in)
1.71 | 1.98 | 2.55 | 3.7 | 3.91
-
Product Height (mm)
29.3 | 30.3 | 45.4 | 57.6
-
Product Height (in)
1.15 | 1.19 | 1.78 | 2.26
Usage Conditions
-
Operating Temperature Range
-25 – 100 °C [ -13 – 212 °F ]
Operation/Application
-
Cooling Method
Natural Convection
-
Operating Altitude (Max) (m)
2000
Industry Standards
-
UL Flammability Rating
UL 94V-0
-
Pollution Degree
PD2
-
Certified To
CSA 22.2 No. 8 1986 | IEC/EN 60939 | UL 1283
-
IP Rating
IP00
Reference Number
-
TE Internal Number
CAT-P97-F2020
