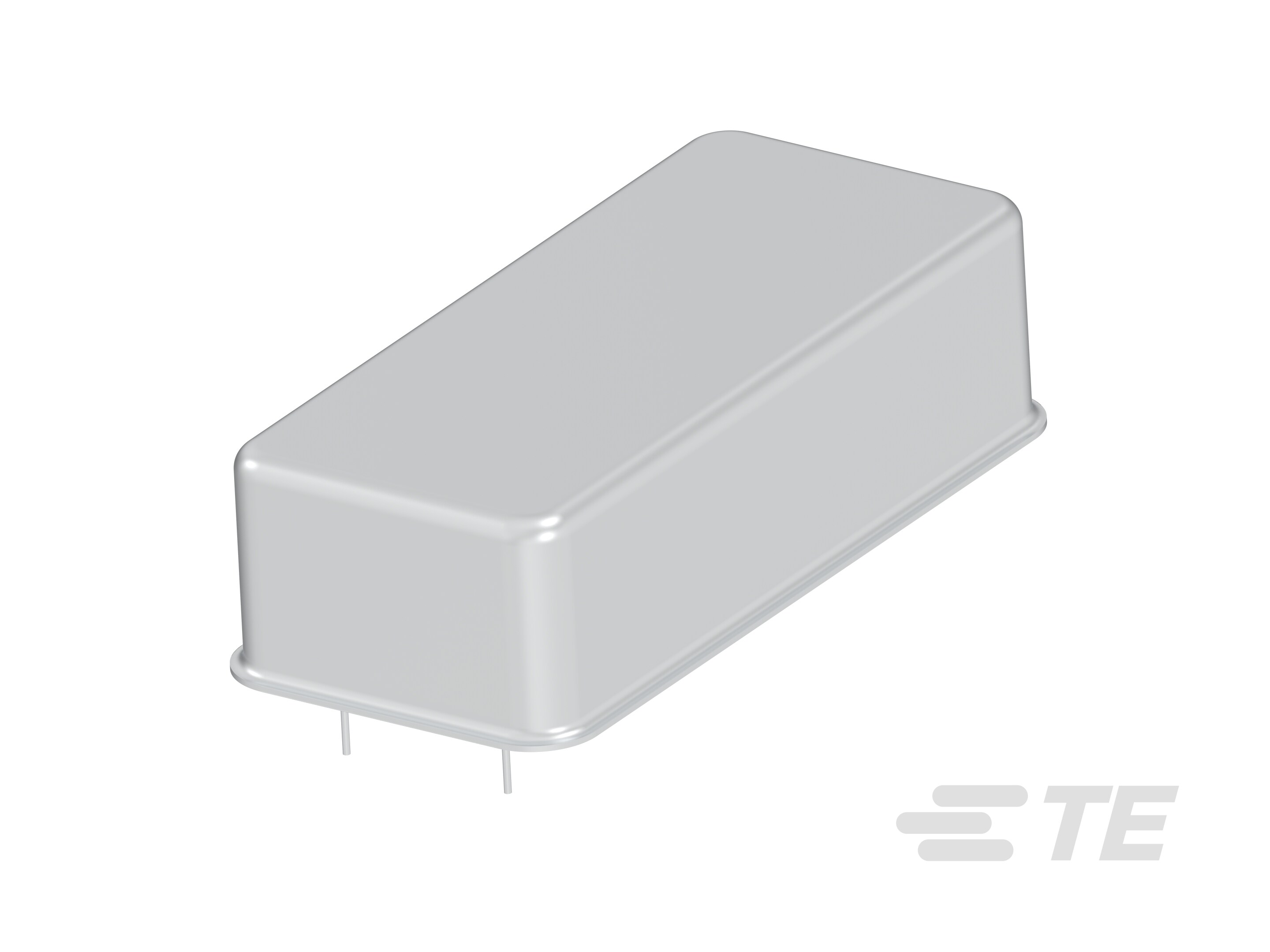

PCB Filters FN410, Two-Stage High-Attenuation PCB EMC Filters

PCB Filters FN410, Two-Stage High-Attenuation PCB EMC Filters-CAT-P96-F410
The FN410 series features high-performance, two-stage PCB-mounting EMC filters with rated currents from 0.5 to 6 A. Designed for enhanced attenuation in compact layouts, these filters provide robust EMI suppression for sensitive electronic equipment.
More Less

Product Features

  • Current Rating (Max) (A): .5, 1, 3, 6

  • Product Orientation : Horizontal

  • Input Termination Type : PCB Terminal

  • Output Termination Type : PCB Terminal

  • Pollution Degree : PD2

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Input Termination Type  PCB Terminal

  • Output Termination Type  PCB Terminal

Electrical Characteristics

  • Overvoltage Category  II

  • Current Rating (Max) (A) .5, 1, 3, 6

Body Features

  • Product Weight  85 g [ 2.99 oz ]

  • Product Orientation  Horizontal

Dimensions

  • Product Width  33 mm [ 1.29 in ]

  • Product Length  72 mm [ 2.83 in ]

  • Product Height  19 mm [ .74 in ]

Usage Conditions

  • Operating Temperature Range  -25 – 100 °C [ -13 – 212 °F ]

Industry Standards

  • Certified To  CSA 22.2 No. 8 1986, IEC/EN 60939, UL 1283

  • Pollution Degree  PD2

  • IP Rating  IP00

  • UL Flammability Rating  UL 94V-2

Reference Number

  • TE Internal Number CAT-P96-F410
