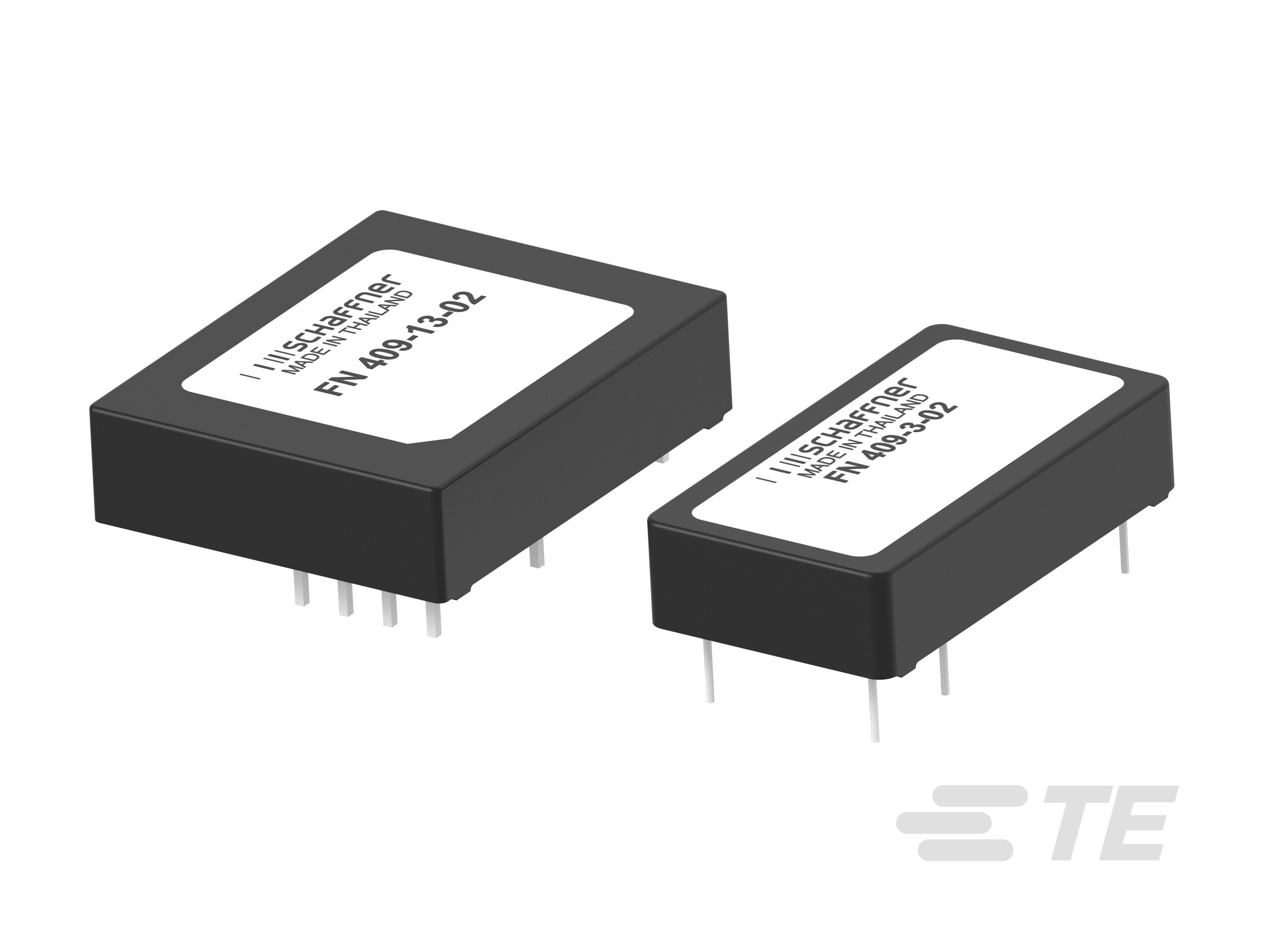

PCB Filters FN409, High-Performance 75 VDC PCB Filters

PCB Filters FN409, High-Performance 75 VDC PCB Filters-CAT-P96-F409
The FN409 series provides compact PCB-mounting filters for 75 VDC applications, with rated currents from 3 to 13 A. Engineered for exceptional attenuation and high-frequency noise suppression, they offer reliable EMC performance in space-constrained designs.
More Less

Product Features

  • Operating Voltage (Max) (VDC): 75

  • Current Rating (Max) (A): 3, 6.5, 13

  • Product Orientation : Horizontal

  • Input Termination Type : PCB Terminal

  • Output Termination Type : PCB Terminal

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Input Termination Type  PCB Terminal

  • Output Termination Type  PCB Terminal

Electrical Characteristics

  • Overvoltage Category  II

  • Operating Voltage (Max) (VDC) 75

  • Current Rating (Max) (A) 3, 6.5, 13

Body Features

  • Product Weight (g) 30, 47

  • Product Weight (oz) 1.05, 1.65

  • Product Orientation  Horizontal

Dimensions

  • Product Width (mm) 27.9, 40.6

  • Product Width (in) 1.09, 1.59

  • Product Length (mm) 50.8, 51

  • Product Length (in) 2

  • Product Height (mm) 11.7, 12.7

  • Product Height (in) .46, .5

Usage Conditions

  • Operating Temperature Range  -25 – 100 °C [ -13 – 212 °F ]

Industry Standards

  • Certified To  CSA 22.2 No. 8 1986, IEC/EN 60939, UL 1283

  • Pollution Degree  PD2

  • IP Rating  IP00

  • UL Flammability Rating  UL 94V-0

Reference Number

  • TE Internal Number CAT-P96-F409
