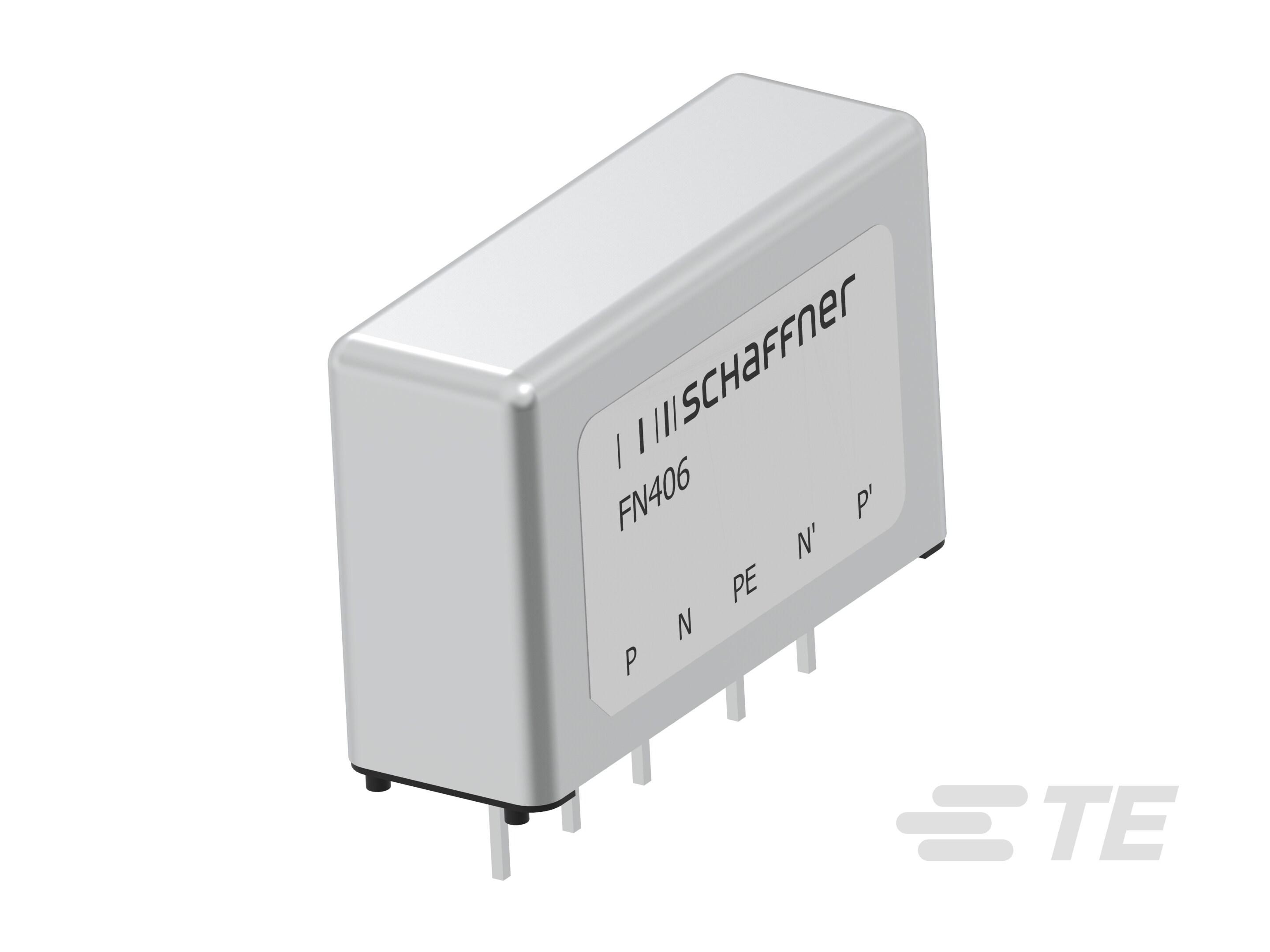

PCB Filters FN406, Ultra-Compact EMC Filters with Aluminum Housing

PCB Filters FN406, Ultra-Compact EMC Filters with Aluminum Housing-CAT-P96-F406
The FN406 series offers ultra-compact EMC filters with rated currents from 0.5 to 8.4 A. Housed in a durable aluminum case, these low-profile, PCB-mountable filters are ideal for space-constrained applications and are available in optional medical-grade versions (B type).
More Less

Product Features

  • Current Rating (Max) (A): .5, 1, 3, 6, 8.4

  • Product Orientation : Vertical

  • Input Termination Type : PCB Terminal

  • Output Termination Type : PCB Terminal

  • Pollution Degree : PD2

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Input Termination Type  PCB Terminal

  • Output Termination Type  PCB Terminal

Electrical Characteristics

  • Overvoltage Category  II

  • Current Rating (Max) (A) .5, 1, 3, 6, 8.4

Body Features

  • Product Weight  36 g [ 1.26 oz ]

  • Product Orientation  Vertical

Dimensions

  • Product Width  15 mm [ .59 in ]

  • Product Length  45 mm [ 1.77 in ]

  • Product Height  28 mm [ 1.1 in ]

Usage Conditions

  • Operating Temperature Range  -25 – 100 °C [ -13 – 212 °F ]

Industry Standards

  • Certified To  CSA 22.2 No. 8 1986, IEC/EN 60939, UL 1283

  • Pollution Degree  PD2

  • IP Rating  IP00

  • UL Flammability Rating  UL 94V-0

Reference Number

  • TE Internal Number CAT-P96-F406
