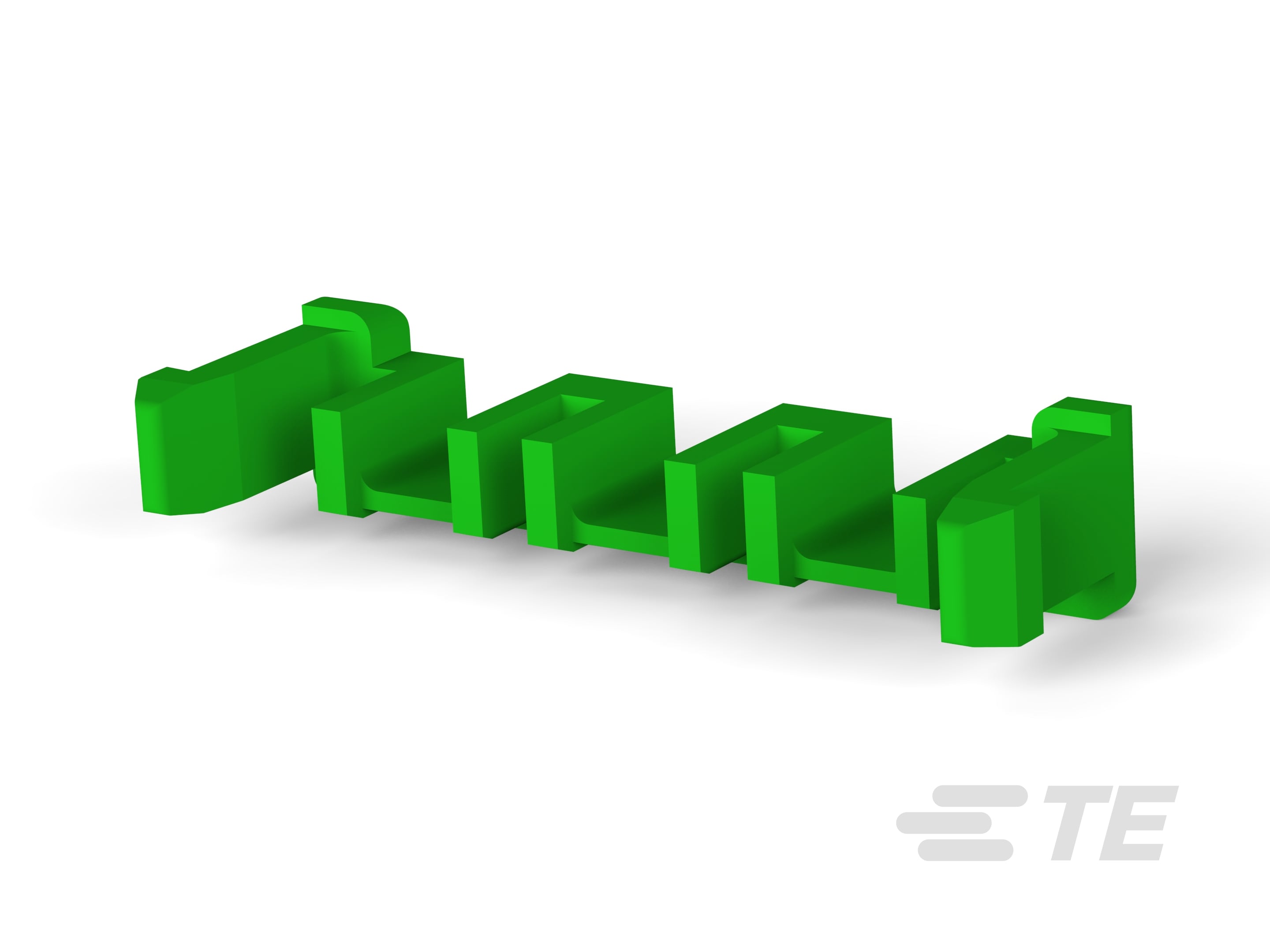

Power Key TPA

Please review product documents or contact us for the latest agency approval information.

• Hardware Accessory Function  Latching, Locking & Retention

• Connector Hardware Accessory Type  Double Lock Plate

• Number of Positions  2 | 3 | 4 | 6

• Primary Product Color  Green

• Primary Product Material  Nylon 6/6

• Centerline (Pitch)  5 mm [ .196 in ]

• Product Width  4 mm [ .157 in ]

• Wire Size (AWG) 24 – 16

• Product Length (mm) 14.7 | 19.7 | 24.7 | 34.7

• Product Length (in) .578 | .775 | .972 | 1.36

• Product Height  6.7 mm [ .264 in ]

• Operating Temperature (Max)  105 °C [ 221 °F ]

• Operating Temperature Range  -40 – 105 °C [ -40 – 221 °F ]

• UL Flammability Rating  UL 94V-0

• Glow Wire Rating  GWEPT 750°C (Without Flame)
