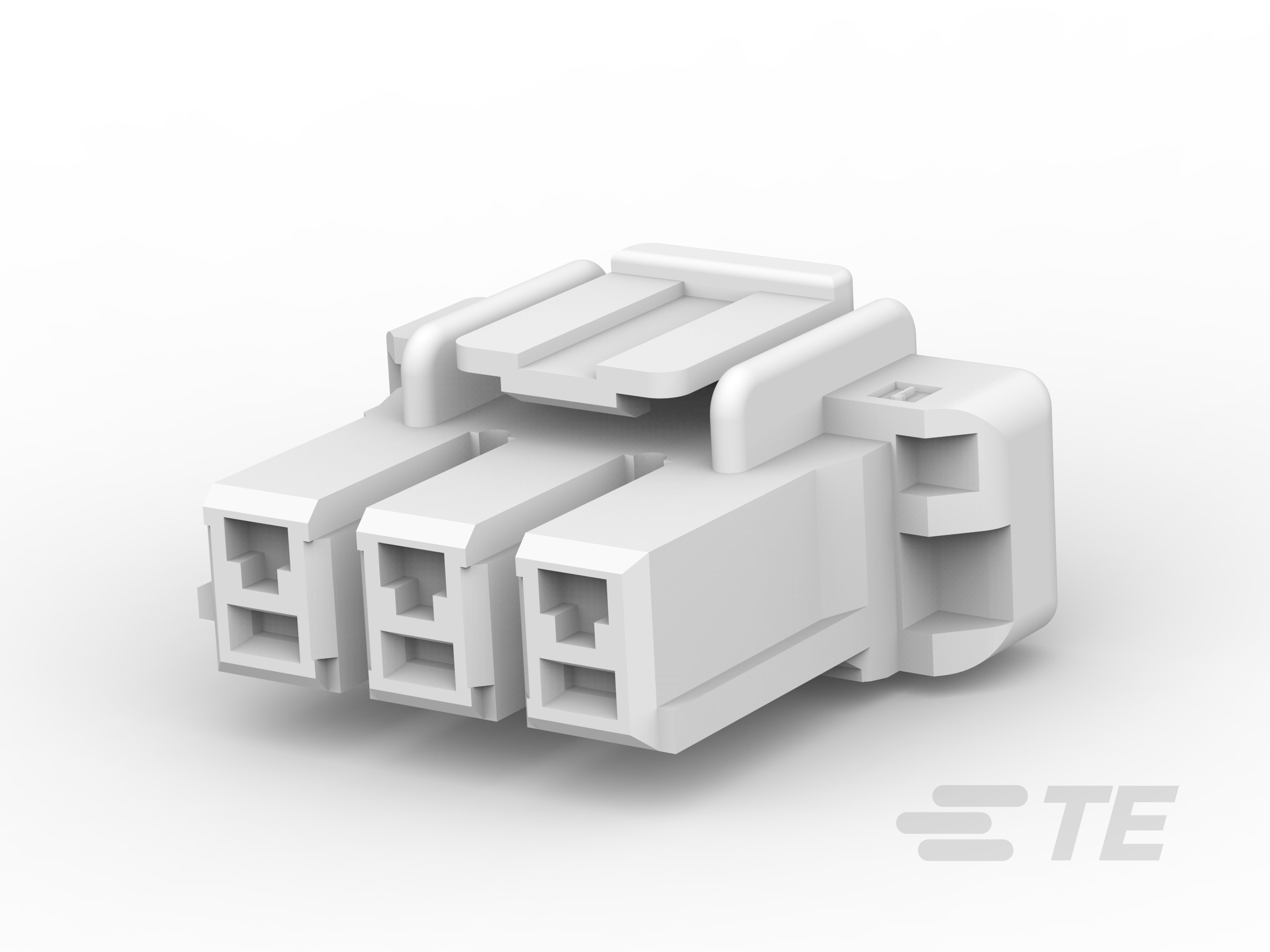

Glow Wire Power Key Plug

Glow Wire Power Key Plug-CAT-P8704-P729A
Glow Wire Power Key plugs mate to corresponding headers. They utilize housing lances to prevent tangling in wired contacts.
More Less
Connect with Us

Product Features

  • Connector Product Type : Housing

  • Mating Alignment : With

  • Mating Alignment Type : Keyed

  • Connector & Housing Type : Plug

  • Mating Retention Type : Latch

Available from

LADD Inc
Overview

The TE Connectivity (TE) power key connectors are built to optimize contact seating and proper mating to the PCB header, with design features that permit the release of bubbles created by the PCB potting process. The 5.0 mm centerline connection system offers a compact 20.7 mm mated height, and is ergonomically friendly for assembly.

Product Features

  • Versatile and easy to use, the connector offers an R-shaped design figure to ease working conditions, as well as easier contact insertions, and a simpliefied stock level control with part numbers reduced.
  • Power Key connectors are made with several unique material varieties, including Glow Wire.
  • The plug mates with the header where an audible sound as well as the TPA provide a complete loading of contacts.
  • Each connector offers four keying options and multiple colors, which will promote efficient connections on the assembly line.
  • Multiple positions are offered on 5mm spacing.

Know More

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector Product Type  Housing

  • Connector & Housing Type  Plug

  • Connector System  Wire-to-Board | Wire-to-Wire

  • Sealable  No

  • Connector & Contact Terminates To  Wire & Cable

Configuration Features

  • Number of Positions  2 | 3 | 4 | 6

  • Number of Rows  1

  • Number of Power Positions  0 | 4 | 6

  • Number of Signal Positions  0

Electrical Characteristics

  • Operating Voltage (VAC) 300

Body Features

  • Primary Product Color  Natural | Red

Contact Features

  • Contact Base Material  Copper Alloy

  • Contact Retention Within Housing  Without

  • Contact Type  Receptacle

  • Contact Current Rating (Max) (A) 10

Termination Features

  • Termination Method to Wire & Cable  Crimp

Mechanical Attachment

  • Panel Mount Feature  Without

  • Strain Relief  Without

  • Mating Alignment  With

  • Mating Alignment Type  Keyed

  • Mating Retention Type  Latch

  • Mating Retention  With

  • Connector Mounting Type  Cable Mount (Free-Hanging)

Housing Features

  • Centerline (Pitch)  5 mm [ .197 in ]

  • Housing Material  Nylon 6/6 GF | Nylon 66

Dimensions

  • Compatible Insulation Diameter Range  1.7 – 3.1 mm [ .067 – .122 in ]

  • Connector Length (mm) 15 | 20 | 25

  • Connector Length (in) .591 | .787 | .984

  • Connector Width  16.2 mm [ .638 in ]

  • Connector Height  9.6 mm [ .378 in ]

  • Wire Size (AWG) 24 – 16

  • Wire Size (mm²) .205 – 1.31

  • Wire Size (CMA) 434.18 – 2466.91

Usage Conditions

  • Operating Temperature Range (°C) -40 – 105 | -30 – 105

  • Operating Temperature Range (°F) -40 – 221 | -22 – 221

Operation/Application

  • Circuit Application  Power | Power & Signal

Industry Standards

  • Compatible With Approved Standards Products  UL E28476

  • UL Rating  Recognized

  • CSA Rating  LR 7189

  • Compatible With Agency/Standards Products  CSA | UL

  • UL Flammability Rating  UL 94V-0

  • Glow Wire Rating  GWT 750°C (Without Flame)

Packaging Features

  • Packaging Quantity  500

  • Packaging Method  Bag

Reference Number

  • TE Internal Number CAT-P8704-P729A
