Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

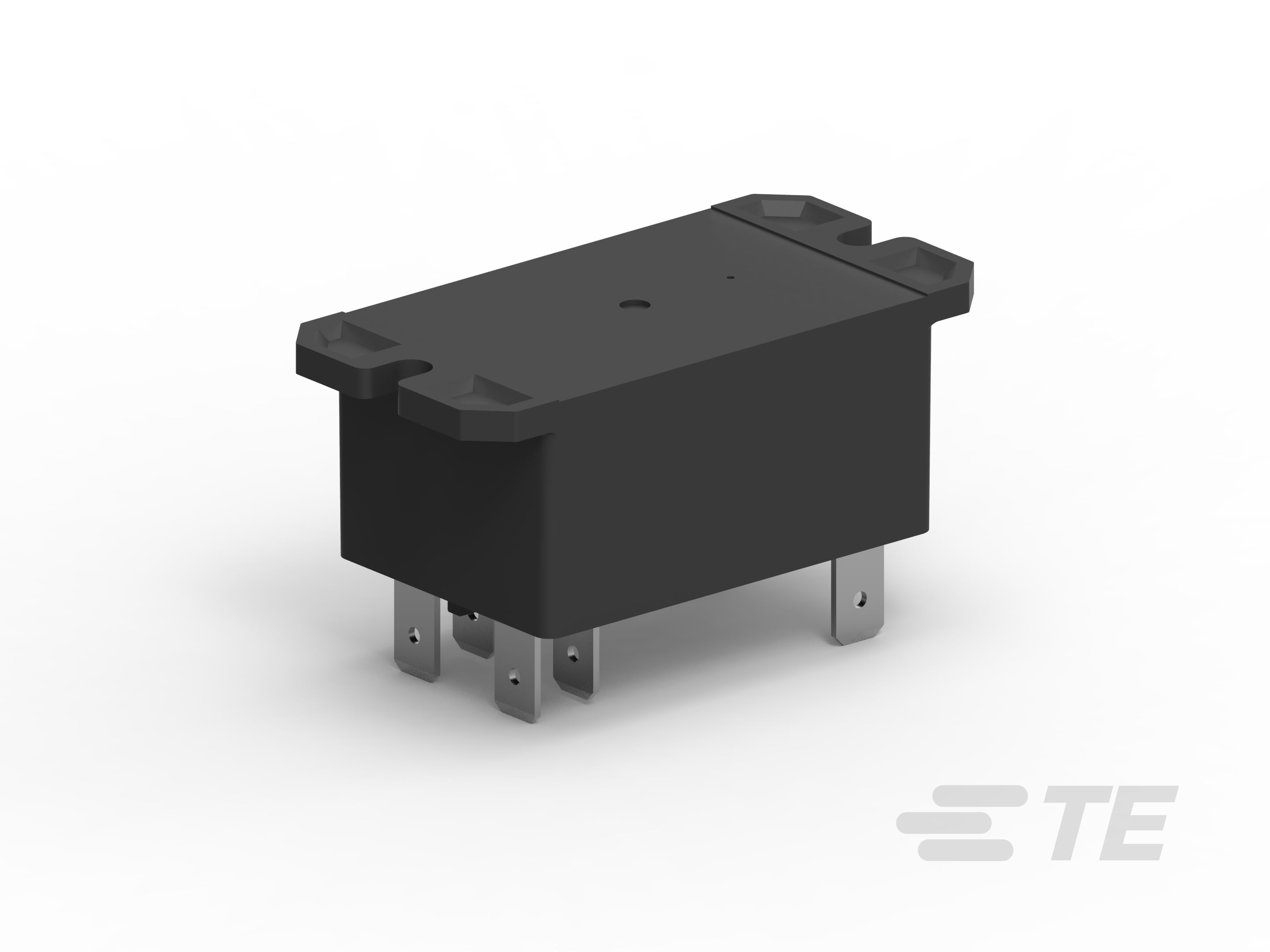

  • Relay & Contactor Type  General Purpose Power Relay

Configuration Features

  • Coil Special Features  UL Coil Insulation Class F

  • Contact Number of Poles  2

  • Contact Arrangement  2 Form A DPST-NO | 2 Form C DPDT-CO

Electrical Characteristics

  • Contact Limiting Continuous Current (A) 40

  • Insulation Initial Resistance (MΩ) 1000

  • Coil Current (A) .014 | .015 | .017 | .019 | .033 | .035 | .071 | .077 | .121 | .142 | .167 | .333

  • Contact Switching Voltage (Max) (VAC) 600

  • Coil Power Rating AC (VA) 4

  • Coil Resistance (Ω) 9.1 | 36.6 | 86 | 350 | 950 | 1390 | 2841 | 3800 | 5485 | 7255

  • Insulation Initial Dielectric Between Adjacent Contacts (Vrms) 1500

  • Contact Switching Load (Min)  500mA @ 12V

  • Insulation Initial Dielectric Between Open Contacts (Vrms) 1500

  • Contact Limiting Breaking Current (A) 40

  • Contact Limiting Making Current (A) 40

  • Contact Current Rating (A) 30

  • Coil Voltage Rating (VAC) 12 | 24 | 120 | 208 | 240 | 277

  • Coil Voltage Rating (VDC) 12 | 24 | 48 | 110

  • Contact Voltage Rating (VAC) 277

  • Coil Power Rating DC (W) 1.7

  • Insulation Initial Dielectric Between Contacts & Coil (Vrms) 4000

Body Features

  • Product Weight  86 g [ 3.034 oz ]

  • Enclosure Type  Dust Protected | Flux Resistant Automatic Solder Capable | Flux Resistant Automatic Solder Capable & Washable

Contact Features

  • Contact Material  AgSnOInO | Silver Cadmium Oxide

Termination Features

  • Main Termination & Connection Type  Quick Connect Terminals | Screw Terminals | Solder Pins

  • Coil Termination & Connection Type  Quick Connect Terminals | Screw Terminals | Solder Pins

Mechanical Attachment

  • Product Mounting Feature Type  Flange with Mounting Slots

  • Product Mount Type  Board Mount | Panel Mount

Dimensions

  • Product Height (mm) 26.42 | 30.73

  • Product Height (in) 1.04 | 1.21

  • Product Height (mm) 26.42 | 30.73

  • Insulation Creepage Between Contact & Coil  8 mm [ .315 in ]

  • Product Length (mm) 52.32 | 68.58

  • Product Length (in) 2.06 | 2.7

  • Product Width  34.54 mm [ 1.36 in ]

  • Insulation Clearance Between Contact & Coil  8 mm [ .315 in ]

Usage Conditions

  • Operating Temperature Range (°C) -55 – 65 | -55 – 85

  • Operating Temperature Range (°F) -67 – 149 | -67 – 185

  • Environmental Category of Protection  RTI | RTII

  • Environmental Ambient Temperature (Max) (°C) 65 | 85

  • Environmental Ambient Temperature (Max) (°F) 149 | 185

Operation/Application

  • Coil Magnetic System  Monostable

  • Current Type  AC | DC

Packaging Features

  • Packaging Method  Box & Tray | Bundle

Other

  • Coil Power Rating Class (W) >1.5 – ≤3

  • Coil Power Rating Class (VA) >3.5 | >3.5

  • Contact Current Class (A) >25 – ≤32

  • Height Class (Mechanical) (mm) >22 – ≤27 | >27 – ≤33 | >45 – ≤70

  • Height Class (Mechanical) (in) >.866 – ≤1.063 | >.866 – ≤1.063 | >1.063 – ≤1.299 | >1.772 – ≤2.756

  • Length Class (Mechanical) (mm) >45 – ≤70

  • Length Class (Mechanical) (in) >1.772 – ≤2.756 | >1.772 – ≤2.756

  • Width Class (Mechanical) (mm) >33

  • Width Class (Mechanical) (in) >1.299 | >1.299

  • Height Class (Mechanical) (mm) >22 – ≤27 | >27 – ≤33 | >45 – ≤70

  • Height Class (Mechanical) (in) >.866 – ≤1.063 | >.866 – ≤1.063 | >1.063 – ≤1.299 | >1.772 – ≤2.756

  • Length Class (Mechanical) (mm) >45 – ≤70

  • Length Class (Mechanical) (in) >1.772 – ≤2.756 | >1.772 – ≤2.756

  • Width Class (Mechanical) (mm) >33

  • Width Class (Mechanical) (in) >1.299 | >1.299

Reference Number

  • TE Internal Number CAT-P851-T1B
