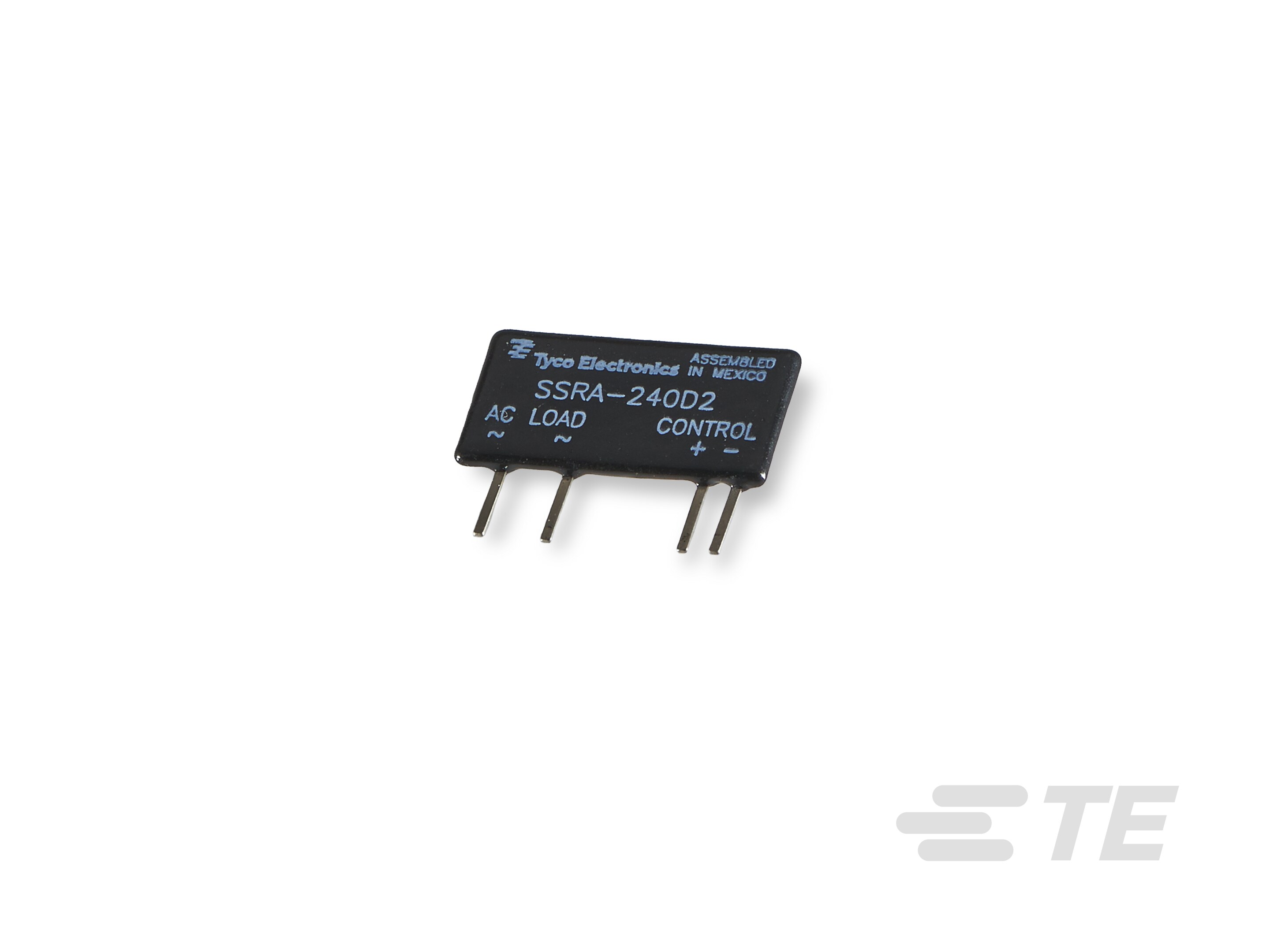

Solid State Relays, P&B SSRA Series

Solid State Relays, P&B SSRA Series-CAT-P851-SS61A
  • Potter & Brumfield
|
  • Potter & Brumfield SSRA
P&B SSRA series with miniature SIP package permitting high density population of PC board. 2A rms inverse-parallel connected SCR output and 4-10 VDC input control. 2500V rms optical isolation.
More Less
Connect with Us

Product Features

  • Contact Arrangement : 1 Form A SPST-NO

  • Input Voltage Type : DC

  • Load Voltage Rating (Vrms): 12 – 280

  • Load Voltage Rating (VDC): 12 – 280

  • Output Switching : Random | Zero

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Configuration Features

  • Contact Arrangement  1 Form A SPST-NO

Electrical Characteristics

  • Input Voltage Range (VDC) 4 – 10

  • Isolation Voltage (Vrms) 2500

  • Load Voltage Rating (Vrms) 12 – 280

  • Load Voltage Rating (VDC) 12 – 280

Body Features

  • Device Package Style  SIP

  • Product Weight  4.3 g [ .15 oz ]

Termination Features

  • Terminal Configuration  Solder Pins

  • Relay Connection Type  PCB Termination

Mechanical Attachment

  • Product Mount Type  Board Mount

Dimensions

  • Product Length  24.1 mm [ .948 in ]

  • Product Width  5.1 mm [ .2 in ]

  • Product Height  12.7 mm [ .5 in ]

Usage Conditions

  • Operating Temperature Range  -30 – 80 °C [ -22 – 176 °F ]

Operation/Application

  • Input Voltage Type  DC

  • Output Switching  Random | Zero

  • Load Voltage Type  AC
