SSR PCB Mount, Slim Relays

SSR PCB Mount, Slim Relays-CAT-P851-IA1
  • Potter & Brumfield
|

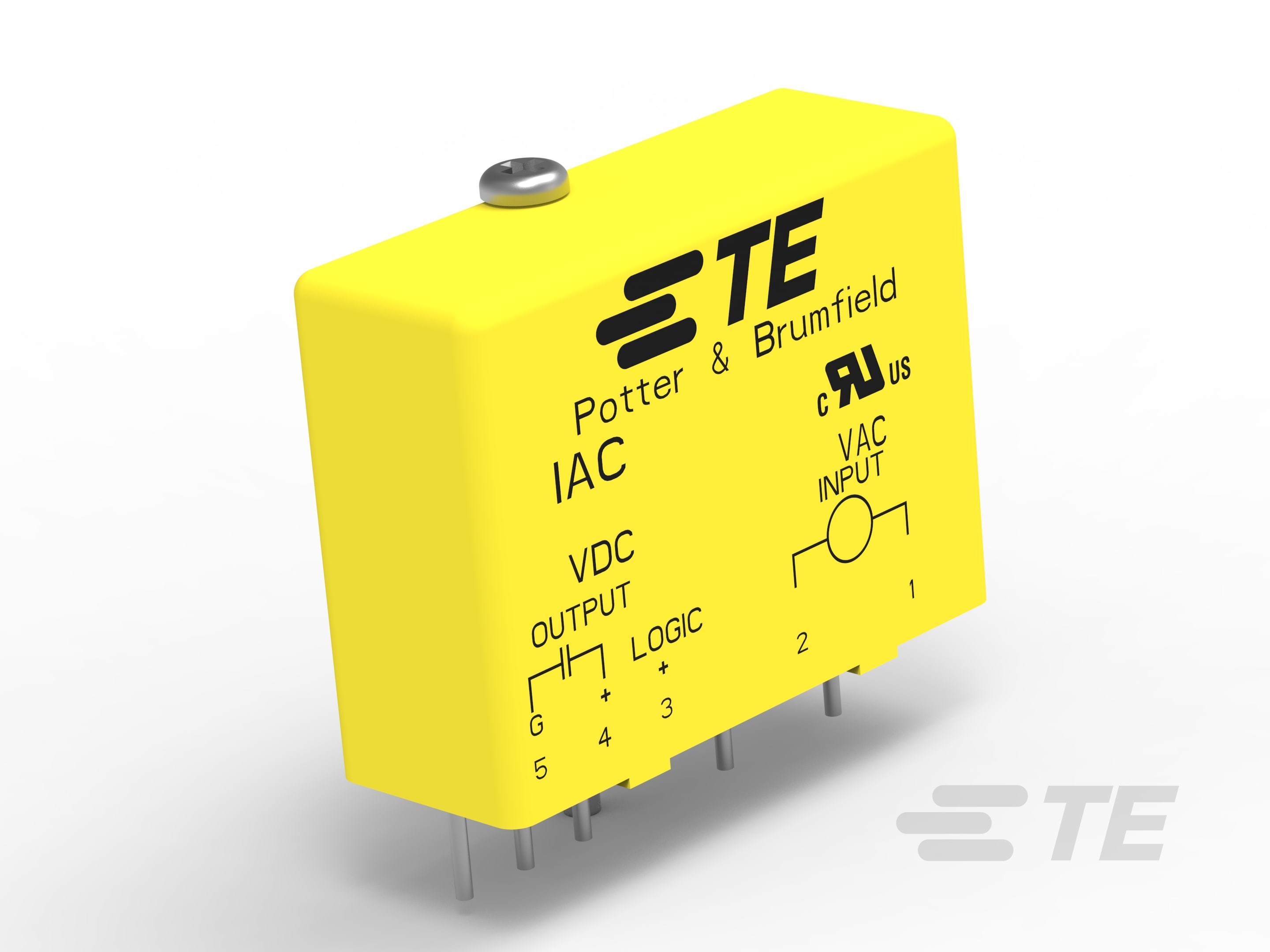

  • Potter & Brumfield IAC AC Input Module
P&B SSR input AC modules have industry standard package and pin-out. Color coded by function with 4000V rms optical isolation. High immunity to false operation. Compatible with 2IO series mounting boards.
More Less
Connect with Us

Product Features

  • Contact Arrangement : 1 Form A SPST-NO

  • Input Voltage Type : AC

  • Input Voltage Range (VAC): 18 – 36 | 90 – 140 | 180 – 280

  • Load Voltage Rating (VDC): 30

  • Output Switching : Zero

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Solid State Relay Type  I/O Module Relay

Configuration Features

  • Contact Arrangement  1 Form A SPST-NO

Electrical Characteristics

  • Isolation Voltage (Vrms) 4000

  • Input Voltage Range (VDC) 18 – 36 | 90 – 140 | 180 – 280

  • Input Voltage Range (VAC) 18 – 36 | 90 – 140 | 180 – 280

  • Load Voltage Rating (VDC) 30

Body Features

  • Enclosure Type  Dust Protected

  • Product Weight  35 g [ 1.38 oz ]

Termination Features

  • Terminal Configuration  Solder Pins

  • Relay Connection Type  PCB Termination

Mechanical Attachment

  • Product Mounting Feature Type  Mounting Studs

  • Product Mount Type  Board Mount

Dimensions

  • Product Length  42.3 mm [ 1.66 in ]

  • Product Width  15.15 mm [ .596 in ]

  • Product Height  31.7 mm [ 1.24 in ]

Usage Conditions

  • Operating Temperature Range  -30 – 80 °C [ -22 – 176 °F ]

Operation/Application

  • Input Voltage Type  AC

  • Output Switching  Zero

  • Load Voltage Type  DC
