PIDG Rectangular Tongue Terminals

PIDG

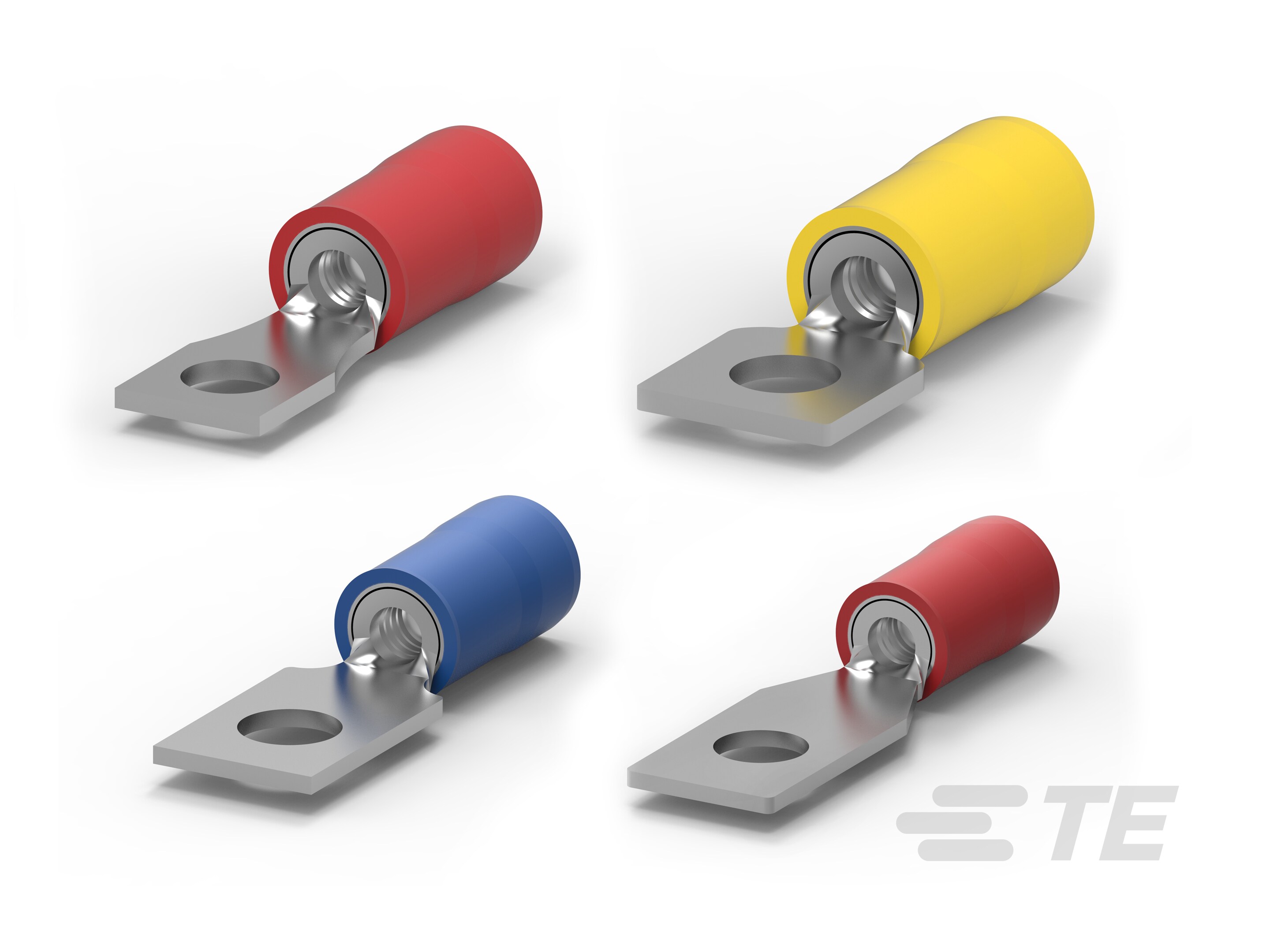

Pre-Insulated Diamond Grip (PIDG) Rectangular Tongue Terminals

More Less

Datasheet |
Digital Datasheet|

Connect with Us

Product Features

Spade Terminal Type : Rectangular Tongue Terminal
Wire Size (AWG): 12 – 10 | 16 | 16 – 14 | 22 | 22 – 16
Wire Size (mm²): .3 – 1.42 | .326 – 1.31 | 1.04 – 2.62 | 1.25 – 2 | 2.62 – 6.64 | 3 – 6 | 3 – 5.2
Wire Size (CMA): 509 – 3260 | 2050 – 5180 | 5180 – 13100
Stud Size : 10 |

Available from

Product	TE Part #	Documents	Wire Size	Wire Size	Wire Size	Stud Size	Stud Diameter	Tongue Thickness	Product Length	Operating Temperature Range	Wire Insulation Support Retention Type	Compatible Insulation Diameter (Max)	Compatible Insulation Diameter Range	Packaging Method
TERMINAL,PIDG RECT 16-14 6	33172	Product Drawing 3D PDF	16 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#6, M3.5	3.68 mm	.79 mm	21.74 mm	-	Non-Insulation Support	3.81 mm	2.67 – 3.81 mm	Box
TERMINAL,PIDG RECT 16-14 6 Buy on te.com	33173	Product Drawing 3D PDF	16 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#6, M3.5	3.51 mm	.84 mm	21.74 mm	-	Non-Insulation Support	4.32 mm	2.92 – 4.31 mm	Box
PIDG RECT 22-16COMM 22-18MIL 6 Buy on te.com	33476	Product Drawing 3D PDF	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.51 mm	.84 mm	21.48 mm	-	Non-Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
PIDG RECT 22-16COMM 22-18MIL 6 Buy on te.com	8-33476-1	Product Drawing 3D PDF	22 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.51 mm	.84 mm	21.48 mm	-	Non-Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
TERMINAL,PIDG RECT 12-10 6	34512	Product Drawing 3D PDF	12 – 10 AWG	3 – 6 mm²	5180 – 13100 CMA	#6, M3.5	3.68 mm	1.02 mm	24.23 mm	-	Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece
TERMINAL,PIDG RECT 16-14 8 Buy on te.com	35279	Product Drawing 3D PDF	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	#8, M4	4.34 mm	.79 mm	21.74 mm	-	Insulation Support	4.32 mm	2.92 – 4.31 mm	Loose Piece
PIDG RECT 22-16COMM22-18MIL 10	320209	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#10	4.82 mm	.84 mm	22.7 mm	-	Non-Insulation Support	3.56 mm	2.67 – 3.56 mm	Box
PIDG RECT 22-16COMM 22-18MIL 6	320629	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#6, M3.5	3.51 mm	.84 mm	21.5 mm	-40 – 105 °C	Non-Insulation Support	3.18 mm	2.03 – 3.18 mm	Box
TERMINAL,PIDG RECT 16-14 8	321283	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#8, M4	4.17 mm	.84 mm	23.9 mm	-40 – 105 °C	Non-Insulation Support	4.32 mm	2.92 – 4.31 mm	Box
TERMINAL,PIDG RECT 16-14 10	324603	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	2050 – 5180 CMA	#10	4.82 mm	.79 mm	23.88 mm	-	Insulation Support	4.32 mm	2.92 – 4.31 mm	Loose Piece
PIDG RECT 22-16COMM 22-18MIL 2 Buy on te.com	325148	Product Drawing 3D PDF	22 – 16 AWG	.326 – 1.31 mm²	509 – 3260 CMA	#2, M2	2.36 mm	.79 mm	18.47 mm	-	Insulation Support	3.18 mm	2.03 – 3.18 mm	Loose Piece
TERMINAL,PIDG RECT 16-14 8	2-327934-2	Product Drawing 3D PDF	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	#8, M4	4.34 mm	.79 mm	34.52 mm	-	Insulation Support	3.81 mm	2.67 – 3.81 mm	Loose Piece
PIDG RECT 22-16COMM 22-18MIL 6	2-327938-1	Product Drawing 3D PDF	22 – 16 AWG	.326 – 1.31 mm²	509 – 3260 CMA	#6, M3.5	3.68 mm	.79 mm	28.17 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
PIDG RECT 22-16COMM 22-18MIL 8	327944	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	509 – 3260 CMA	#8, M4	4.34 mm	.79 mm	28.17 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
TERMINAL,PIDG RECT 16-14 8	2-327946-4	Product Drawing 3D PDF	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	#8, M4	4.34 mm	.79 mm	28.17 mm	-	Insulation Support	3.81 mm	2.67 – 3.81 mm	Loose Piece
TERMINAL,PIDG RECT 12-10 8	327948	Product Drawing 3D PDF	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#8, M4	4.34 mm	.79 mm	32.54 mm	-	Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece
PIDG RECT 22-16COMM 22-18MIL 5	2-327950-1	Product Drawing 3D PDF	22 – 16 AWG	.326 – 1.31 mm²	509 – 3260 CMA	#5, M3	8.12 mm	.79 mm	25.78 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
TERMINAL,PIDG RECT 16-14 5	2-327952-2	Product Drawing 3D PDF	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	#5, M3	3.35 mm	.79 mm	21.72 mm	-	Insulation Support	3.81 mm	2.67 – 3.81 mm	Loose Piece
TERMINAL,PIDG RECT 12-10 5	327954	Product Drawing 3D PDF	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#5, M3	3.35 mm	.79 mm	26.47 mm	-	Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece
PIDG RECT 22-16COMM 22-18MIL 6	2-327956-1	Product Drawing 3D PDF	22 – 16 AWG	.326 – 1.31 mm²	509 – 3260 CMA	#6, M3.5	3.68 mm	.79 mm	25.78 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
TERMINAL,PIDG RECT 16-14 6 Buy on te.com	2-327958-1	Product Drawing 3D PDF	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	#6, M3.5	3.73 mm	.79 mm	25.81 mm	-	Insulation Support	4.32 mm	2.92 – 4.31 mm	Loose Piece
TERMINAL,PIDG RECT 16-14 6	2-327958-4	Product Drawing 3D PDF	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	#6, M3.5	3.73 mm	.79 mm	25.81 mm	-	Insulation Support	3.81 mm	2.67 – 3.81 mm	Loose Piece
TERMINAL,PIDG RECT 12-10 6	2-327960-1	Product Drawing 3D PDF	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#6, M3.5	3.68 mm	.79 mm	30.56 mm	-	Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece
TERMINAL,PIDG RECT 12-10 6	2-327960-2	Product Drawing 3D PDF	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#6, M3.5	3.68 mm	.79 mm	30.56 mm	-	Insulation Support	5.84 mm	3.81 – 5.84 mm	Tape Mounted
PIDG RECT 22-16COMM 22-18MIL 4	327962	Product Drawing 3D PDF	22 – 16 AWG	.326 – 1.31 mm²	509 – 3260 CMA	#4, M2.5	3.02 mm	.79 mm	25.78 mm	-	Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece
TERMINAL,PIDG RECT 16-14 4	2-327964-4	Product Drawing 3D PDF	16 – 14 AWG	1.04 – 2.62 mm²	2050 – 5180 CMA	#4, M2.5	3.02 mm	.79 mm	25.78 mm	-	Insulation Support	3.81 mm	2.67 – 3.81 mm	Loose Piece
TERMINAL,PIDG RECT 12-10 4	327966	Product Drawing 3D PDF	12 – 10 AWG	2.62 – 6.64 mm²	5180 – 13100 CMA	#4, M2.5	3.02 mm	.79 mm	30.56 mm	-	Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece
PIDG RECT 22-16COMM 22-18MIL 4	2-327968-1	Product Drawing 3D PDF	22 – 16 AWG	.326 – 1.31 mm²	509 – 3260 CMA	#4, M2.5	3.02 mm	.79 mm	20.22 mm	-	Insulation Support	3.56 mm	2.67 – 3.56 mm	Loose Piece
TERMINAL,PIDG RECT 12-10 6 Buy on te.com	329697	Product Drawing 3D PDF	12 – 10 AWG	3 – 5.2 mm²	5180 – 13100 CMA	#6, M3.5	3.68 mm	.79 mm	27.56 mm	-	Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece
TERMINAL,PIDG RECT 12-10 8	331268	Product Drawing 3D PDF	12 – 10 AWG	3 – 5.2 mm²	5180 – 13100 CMA	#8, M4	4.34 mm	.79 mm	31.7 mm	-	Insulation Support	5.84 mm	3.81 – 5.84 mm	Loose Piece

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Terminal Features Sheared
Stud Size 10 |
Sealable No
Wire Insulation Support Retention Type Insulation Support | Non-Insulation Support

Configuration Features

Number of Holes 1

Electrical Characteristics

Voltage Rating (V) 300

Body Features

Stripe Color Blue | Red
Insulation Sleeve Color Blue | Red
Product Weight (g) .663 | .793 | .797 | .895 | .921 | 1.003 | 1.055 | 1.152 | 1.156 | 1.164 | 1.177 | 1.178 | 1.201 | 1.354 | 2.003 | 2.213 | 2.36 | 2.431 | 2.453 | 2.489 | 2.556 | 2.56 | 2.608 | 2.666 | 2.697

Contact Features

Military Part Class Class I
Spade Terminal Type Rectangular Tongue Terminal
Barrel Type Closed
Terminal Orientation Straight
Terminal Plating Material Tin

Mechanical Attachment

Wire Insulation Support With

Dimensions

Wire Size (AWG) 12 – 10 | 16 | 16 – 14 | 22 | 22 – 16
Wire Size (mm²) .3 – 1.42 | .326 – 1.31 | 1.04 – 2.62 | 1.25 – 2 | 2.62 – 6.64 | 3 – 6 | 3 – 5.2
Wire Size (CMA) 509 – 3260 | 2050 – 5180 | 5180 – 13100
Stud Diameter (mm) 2.36 | 3.02 | 3.35 | 3.51 | 3.68 | 3.73 | 4.17 | 4.34 | 4.82 | 8.12
Stud Diameter (in) .093 | .119 | .132 | .138 | .145 | .147 | .164 | .171 | .19
Tongue Thickness (mm) .79 | .84 | 1.02
Tongue Thickness (in) .031 | .033 | .04
Product Length (mm) 18.47 | 20.22 | 21.48 | 21.5 | 21.72 | 21.74 | 22.7 | 23.88 | 23.9 | 24.23 | 25.78 | 25.81 | 26.47 | 27.56 | 28.17 | 30.56 | 31.7 | 32.54 | 34.52
Product Length (in) .679 | .727 | .796 | .846 | .855 | .856 | .86 | .893 | .939 | .94 | .954 | 1.015 | 1.016 | 1.042 | 1.085 | 1.109 | 1.203 | 1.247 | 1.281 | 1.359
Compatible Insulation Diameter (Max) (mm) 3.18 | 3.56 | 3.81 | 4.32 | 5.84
Compatible Insulation Diameter (Max) (in) .125 | .14 | .15 | .17 | .23
Compatible Insulation Diameter Range (mm) 2.03 – 3.18 | 2.67 – 3.56 | 2.67 – 3.81 | 2.92 – 4.31 | 3.81 – 5.84
Compatible Insulation Diameter Range (in) .08 – .125 | .105 – .15 | .105 – .14 | .115 – .17 | .15 – .23

Usage Conditions

Insulation Option Partially Insulated
Operating Temperature Range -40 – 105 °C [ -40 – 221 °F ]

Operation/Application

Compatible With Wire Base Material Copper
Compatible With Wire Plating Material Tin

Industry Standards

Government Qualified Terminal No | Yes

Packaging Features

Packaging Quantity 100 | 500 | 1000 | 2500
Packaging Method Box | Loose Piece | Tape Mounted

Reference Number

TE Internal Number CAT-P592-R2456
