Product Type Features
-
Terminal Features
Wire Stop
-
Insertion Force
Low
Configuration Features
-
Connection Capacity
Single
Electrical Characteristics
Body Features
-
Insulation Material
Nylon
Contact Features
-

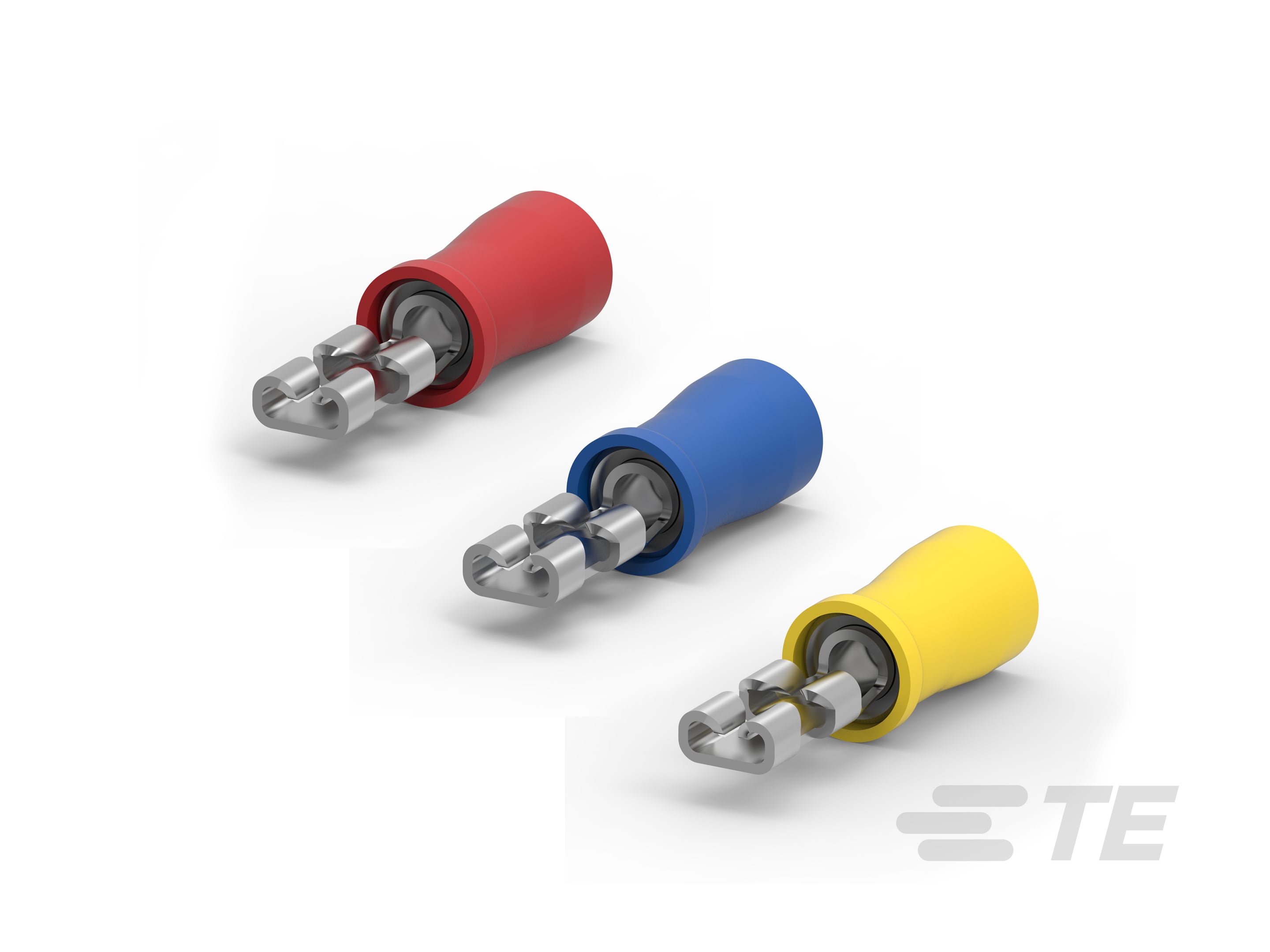

Quick Disconnect Terminal Type
Receptacle
-
Mating Tab Width
2.79 mm [ .11 in ]
-
Mating Tab Thickness (mm)
.41 | .51 | .8
-
Mating Tab Thickness (in)
.016 | .02 | .032
-
Terminal Orientation
Straight
-
Contact Base Material
Brass
-
Terminal Plating Material
Pre-Tin
-
Crimp Type
Compression Crimp
-
Barrel Type
Closed
Termination Features
-
Product Terminates To
Wire & Cable
Mechanical Attachment
-
Wire Insulation Support
With
Dimensions
-
Compatible Insulation Diameter Range (mm)
2.08 | 3.43 | 4.32
-
Compatible Insulation Diameter Range (in)
.082 | .135 | .17
-
Terminal Material Thickness
.41 mm [ .016 in ]
-
Product Length (mm)
17.81 | 20.36
-
Product Length (in)
.7 | .8
-
Wire Size (AWG)
16 – 14 | 22 – 18 | 26 – 24
-
Wire Size (mm²)
.12 – .20 | .26 – .96 | 1.04 – 2.62
-
Wire Size (CMA)
238 – 475 | 509 – 1900 | 2050 – 5180
Usage Conditions
-
Insulation Option
Partially Insulated
Industry Standards
-
Compatible With Agency/Standards Products
CSA | RU (UL Component Program)
Packaging Features
-
Packaging Quantity
1000
-
Packaging Method
Loose Piece
Other
-
Barrel Color
Blue | Red | Yellow
Reference Number
-
TE Internal Number
CAT-P592-L9505
