PIDG FASTON Receptacle Quick Disconnects

PIDG FASTON Receptacle Quick Disconnects-CAT-P592-F266
  • PIDG

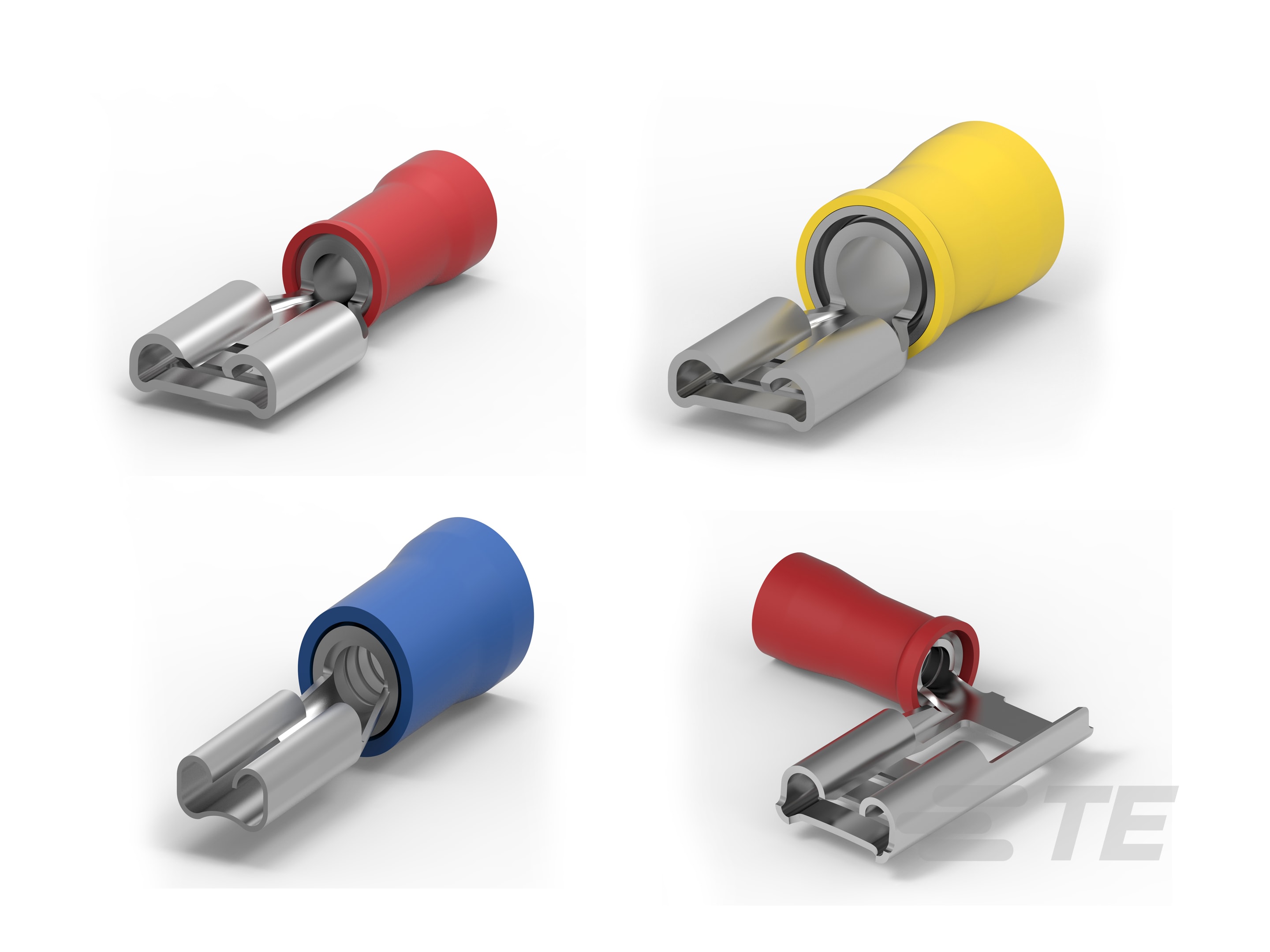

Pre-Insulated Diamond Grip (PIDG) FASTON Receptacle Quick Disconnects
More Less
Connect with Us

Product Features

  • Quick Disconnect Terminal Type : Receptacle

  • Wire Size (AWG): 11 – 10 | 12 – 10 | 15.5 – 13.5 | 16 – 14 | 17 – 13 | 22 – 16 | 22 – 18 | 26 – 24

  • Wire Size (mm²): .12 – .20 | .26 – .96 | .3 – 1.5 | 1 – 2.5 | 1.04 – 2.62 | 1.5 – 2.5 | 2.62 – 6.64 | 4 – 6

  • Wire Size (CMA): 238 – 475 | 509 – 1900 | 592 – 3260 | 592 – 2960 | 1980 – 4914 | 2050 – 5180 | 3000 – 4914 | 5180 – 13100 | 8226 – 12066

  • Mating Tab Width (mm): 2.79 | 4.75 | 4.8 | 5.21 | 6.35

  • Mating Tab Width (in): .11 | .187 | .189 | .205 | .25

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Terminal Features  Wire Stop

  • Compatible With Discrete Wire Type  Solid | Stranded

  • Insertion Force  Normal

Configuration Features

  • Compatible With Wire & Cable Type  Discrete Wire

  • Connection Capacity  Single

Electrical Characteristics

  • Voltage Rating (V) 300

Body Features

  • Insulation Material  Nylon | PVC

Contact Features

  • Quick Disconnect Terminal Type  Receptacle

  • Mating Tab Width (mm) 2.79 | 4.75 | 4.8 | 5.21 | 6.35

  • Mating Tab Width (in) .11 | .187 | .189 | .205 | .25

  • Mating Tab Thickness (mm) .5 | .51 | .79 | .8 | .81

  • Mating Tab Thickness (in) .02 | .031 | .032

  • Terminal Orientation  Flag | Straight

  • Contact Base Material  Brass

  • Terminal Plating Material  Pre-Tin | Tin

  • Crimp Type  Compression Crimp

  • Barrel Type  Closed

Termination Features

  • Product Terminates To  Wire & Cable

Mechanical Attachment

  • Wire Insulation Support  With

  • Mating Retention Type  Dimple

Dimensions

  • Compatible Insulation Diameter Range (mm) 2.08 | 2.54 | 2.67 – 3.56 | 2.7 – 3.6 | 2.88 – 4.32 | 3.43 | 3.5 | 3.56 | 4.3 | 4.32 | 6.35

  • Compatible Insulation Diameter Range (in) .082 | .1 | .105 – .14 | .135 | .14 | .157 – .17 | .169 | .17 | .25

  • Terminal Material Thickness (mm) .3 | .41 | .45 | .46

  • Terminal Material Thickness (in) .012 | .016 | .018

  • Product Length (mm) 17.81 | 18.64 | 19.3 | 19.8 | 20.36 | 20.88 | 21.8 | 21.9 | 22.2 | 22.86 | 23.2 | 25.7 | 26

  • Product Length (in) .7 | .734 | .76 | .779 | .8 | .822 | .862 | .874 | .9 | .913 | 1.012 | 1.024

  • Wire Size (AWG) 11 – 10 | 12 – 10 | 15.5 – 13.5 | 16 – 14 | 17 – 13 | 22 – 16 | 22 – 18 | 26 – 24

  • Wire Size (mm²) .12 – .20 | .26 – .96 | .3 – 1.5 | 1 – 2.5 | 1.04 – 2.62 | 1.5 – 2.5 | 2.62 – 6.64 | 4 – 6

  • Wire Size (CMA) 238 – 475 | 509 – 1900 | 592 – 3260 | 592 – 2960 | 1980 – 4914 | 2050 – 5180 | 3000 – 4914 | 5180 – 13100 | 8226 – 12066

Usage Conditions

  • Insulation Option  Partially Insulated

Industry Standards

  • UL Flammability Rating  UL 94V-2

  • Compatible With Agency/Standards Products  CSA | RU (UL Component Program)

Packaging Features

  • Packaging Quantity  500 | 1000

  • Packaging Method  Bag | Box | Carton | Loose Piece

Other

  • Barrel Color  Blue | Clear | Red | Yellow

Reference Number

  • TE Internal Number CAT-P592-F266
