PIDG Butt Splices

PIDG

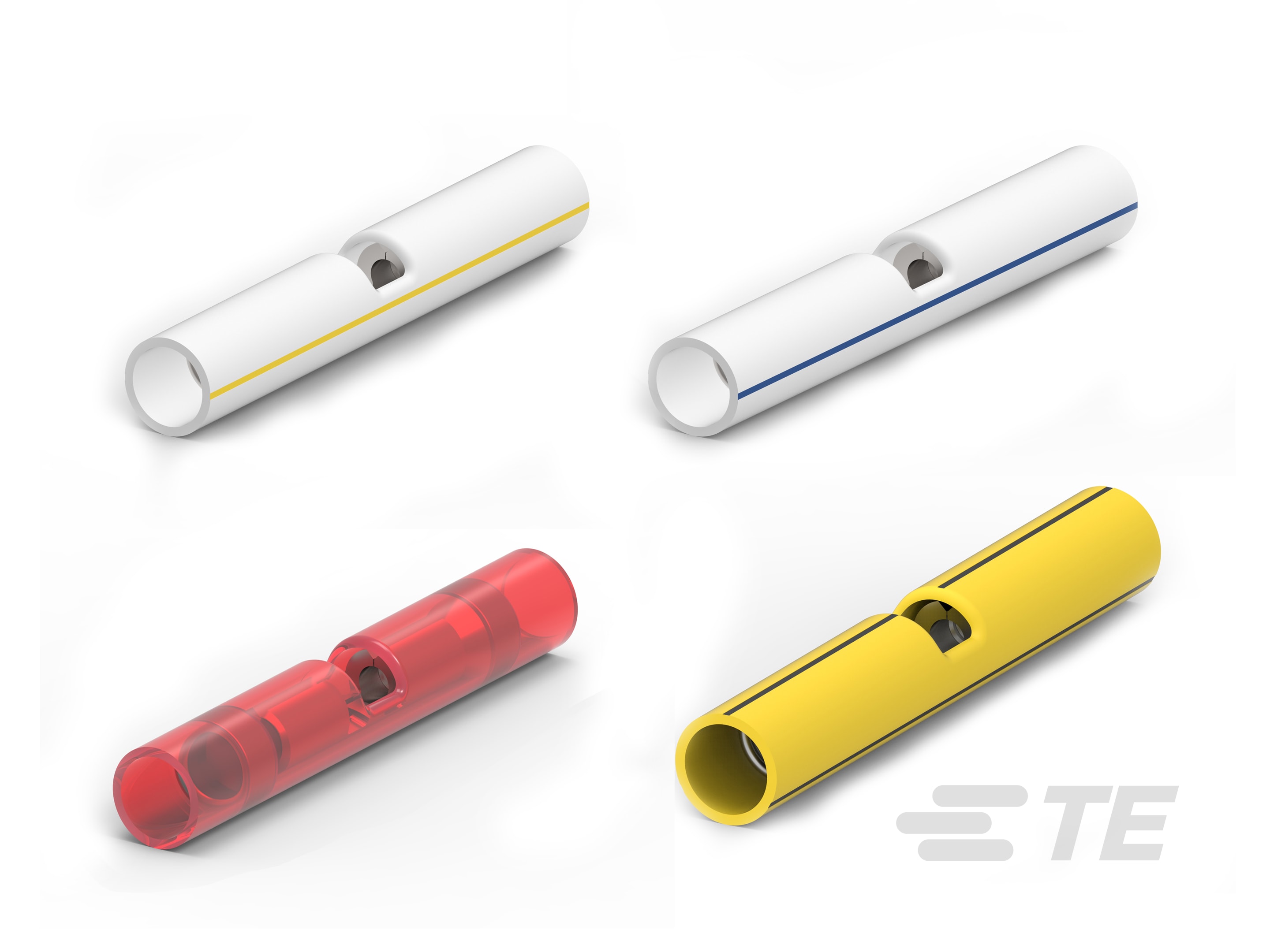

Our pre-insulated diamond grip (PIDG) butt splices are insulated splices with a closed barrel for discrete or regular wire.

More Less

Datasheet |
Digital Datasheet|

Connect with Us

Product Features

Splice Type : Butt Splice
Wire Size (AWG): 12 – 10 | 16 – 14 | 22 – 16 | 22 – 18 | 24 – 20 | 26 – 22
Wire Size (mm²): .12 – .24 | .12 – .4 | .2 – .6 | .26 – .96 | .3 – 1.42 | 1.04 – 2.62 | 1.25 – 2 | 3 – 6
Sealable : No
Splice Features : Serrated

Available from

Product	TE Part #	Documents	Wire Size	Wire Size	Compatible Insulation Diameter Range	Barrel Inside Diameter	Wire Size	Wire Size	Primary Product Color	Terminal Material Thickness	Number of Serrations	Product Length	Government Qualified Splice	Packaging Method	Compatible With Wire Base Material	EU RoHS Compliance	EU ELV Compliance
SPLICE BUTT PVF2 PIDG 26-22	53546-1	Product Drawing 3D PDF	26 – 22 AWG	.12 – .4 mm²	2.09 mm	.73 mm	-	202 – 810 CMA	-	-	-	22.61 mm	Yes	Loose Piece	-	-	-
SPLICE BUTT PVF2 PIDG 24-20	53547-1	Product Drawing 3D PDF	24 – 20 AWG	.2 – .6 mm²	2.54 mm	1.09 mm	-	320 – 1290 CMA	-	-	-	26.29 mm	Yes	Loose Piece	-	-	-
SPLICE BUTT PVF2 PIDG 22-16	53548-1	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	3.18 mm	1.55 mm	-	509 – 3260 CMA	-	-	-	32.14 mm	Yes	Loose Piece	-	-	-
SPLICE BUTT PVF2 PIDG 16-14	53549-1	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	3.81 mm	2.16 mm	-	2050 – 5180 CMA	-	-	-	32.14 mm	Yes	Loose Piece	-	-	-
SPLICE BUTT PVF2 PIDG 16-14	8-53549-2	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	3.81 mm	2.16 mm	-	2050 – 5180 CMA	-	-	-	32.14 mm	No	Loose Piece	-	-	-
SPLICE BUTT PVF2 PIDG 12-10	53550-1	Product Drawing 3D PDF	12 – 10 AWG	3 – 6 mm²	5.59 mm	3.28 mm	-	5180 – 13100 CMA	-	-	-	42.07 mm	Yes	Loose Piece	-	-	-
PIDG SPLICE 22-16COMM 22-18MIL	320559	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	3.18 mm	.73 mm	-	509 – 3260 CMA	Red - Translucent	.46 mm	8	32.13 mm	Yes	Loose Piece	-	-	-
SPLICE BUTT PIDG 22-16; TAPE	2-320559-4	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	3.18 mm	.73 mm	.509 – 3.26 kcmil	509 – 3260 CMA	Red - Translucent	.46 mm	8	32.13 mm	No	Tape Mounted	-	-	-
SPLC BUTT PIDG22-16C22-18M Buy on te.com	8-320559-2	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	3.18 mm	.73 mm	.509 – 3.26 kcmil	509 – 3260 CMA	Red - Translucent	.46 mm	8	32.13 mm	No	Loose Piece	-	-	-
SPLC BUTT PIDG 22-16C 22-18M Buy on te.com	8-320559-5	Product Drawing 3D PDF	22 – 16 AWG	.3 – 1.42 mm²	3.18 mm	.73 mm	.509 – 3.26 kcmil	509 – 3260 CMA	Red - Translucent	.46 mm	8	32.13 mm	No	Loose Piece	-	-	-
SPLICE BUTT PIDG 16-14	320562	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	3.81 mm	.73 mm	-	2050 – 5180 CMA	Blue - Transluscent	.46 mm	8	32.13 mm	Yes	Loose Piece	-	-	-
SPLICE BUTT PIDG 16-14; TAPE	2-320562-3	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	3.81 mm	.73 mm	2.05 – 5.18 kcmil	2050 – 5180 CMA	Blue - Transluscent	.46 mm	8	32.13 mm	No	Tape Mounted	-	-	-
SPLICE BUTT PIDG 16-14 Buy on te.com	8-320562-2	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	3.81 mm	.73 mm	2.05 – 5.18 kcmil	2050 – 5180 CMA	Blue - Transluscent	.46 mm	8	32.13 mm	No	Loose Piece	-	-	-
SPLICE BUTT PIDG 16-14	8-320562-5	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	3.81 mm	.73 mm	2.05 – 5.18 kcmil	2050 – 5180 CMA	Blue - Transluscent	.46 mm	8	32.13 mm	No	Loose Piece	-	-	-
SPLICE BUTT PIDG 12-10	320570	Product Drawing 3D PDF	12 – 10 AWG	3 – 6 mm²	5.59 mm	.73 mm	-	5180 – 13100 CMA	Yellow - Translucent	.56 mm	8	41.91 mm	Yes	Loose Piece	-	-	-
N PIDG BUTT SPLICE 12-10 Buy on te.com	2-320570-3	Product Drawing 3D PDF	12 – 10 AWG	3 – 6 mm²	5.59 mm	.73 mm	5.18 – 13.1 kcmil	5180 – 13100 CMA	Yellow - Translucent	.51 mm	8	42.06 mm	No	Tape Mounted	-	-	-
SPLICE BUTT PIDG 12-10 Buy on te.com	8-320570-2	Product Drawing 3D PDF	12 – 10 AWG	3 – 6 mm²	5.59 mm	.73 mm	5.18 – 13.1 kcmil	5180 – 13100 CMA	Yellow - Translucent	.51 mm	8	42.06 mm	No	Loose Piece	-	-	-
SPLICE, BUTT, PIDG, 24-20	323975	Product Drawing 3D PDF	24 – 20 AWG	.2 – .6 mm²	2.54 mm	.73 mm	.32 – 1.29 kcmil	320 – 1290 CMA	Natural	-	-	26.29 mm	Yes	Loose Piece	Copper	-	-
SPLICE, BUTT, PIDG, 24-20, T&R	2-323975-3	Product Drawing 3D PDF	24 – 20 AWG	.2 – .6 mm²	2.54 mm	.73 mm	.32 – 1.29 kcmil	320 – 1290 CMA	Natural	-	-	26.29 mm	No	Tape Mounted	-	-	-
SPLICE BUTT PIDG 26-24	323994	Product Drawing 3D PDF	26 – 22 AWG	.12 – .24 mm²	2.08 mm	.73 mm	.238 – .475 kcmil	238 – 475 CMA	Yellow - Translucent	.38 mm	8	22.61 mm	Yes	Loose Piece	-	-	-
PIDG BUTT SPLC WDW 26-22; TAPE Buy on te.com	2-323994-1	Product Drawing 3D PDF	26 – 22 AWG	.12 – .4 mm²	2.08 mm	.73 mm	.202 – .81 kcmil	202 – 810 CMA	Yellow - Translucent	.38 mm	8	22.61 mm	No	Tape Mounted	-	-	-
SPLICE BUTT PIDG 26-22 Buy on te.com	8-323994-2	Product Drawing 3D PDF	26 – 22 AWG	.12 – .4 mm²	2.08 mm	.73 mm	.202 – .81 kcmil	202 – 810 CMA	Yellow - Translucent	.38 mm	8	22.61 mm	No	Loose Piece	-	-	-
PIDG 26-22 BUTT SM-PACK-25 Buy on te.com	8-323994-3	Product Drawing 3D PDF	26 – 22 AWG	.12 – .4 mm²	2.08 mm	.73 mm	.202 – .81 kcmil	202 – 810 CMA	Yellow - Translucent	.38 mm	8	22.61 mm	No	Loose Piece	-	-	-
SPL BUTT PIDG 16-14/22-18;TAPE	2-327583-1	Product Drawing 3D PDF	16 – 14 AWG, 22 – 18 AWG	.26 – .96 mm², 1.04 – 2.62 mm²	2.09 mm	.73 mm	-	202 – 810 CMA	Blue - Transluscent	.46 mm	8	32.13 mm	No	Tape Mounted	-	-	-
PIDG 16-14HD BUTT SPLICE	696730-1	Product Drawing 3D PDF	16 – 14 AWG	1.25 – 2 mm²	6.35 mm	6.4 mm	2.05 – 5.18 kcmil	2050 – 5180 CMA	Yellow	.51 mm	8	42.06 mm	No	Loose Piece	-	-	-

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Splice Accessory Type Splice
Splice Type Butt Splice
Sealable No
Compatible With Discrete Wire Type Stranded
Wire Insulation Support Retention Type Insulation Support

Configuration Features

Number of Serrations 8
Compatible With Wire & Cable Type Discrete Wire

Electrical Characteristics

Operating Voltage (V) 300
Operating Voltage (VAC) 600

Body Features

Stripe Color Black | Red
Insulation Support Sleeve Material Copper
Insulation Material Copper | Nylon | PVF2
Product Weight (g) .411 | .709 | .735 | .855 | 1.48 | 1.489 | 1.61 | 1.619 | 1.934 | 2 | 2.05 | 3.402 | 3.8 | 4.092 | 4.383 | 4.404 | 4.536 | 10
Splice Features Serrated
Primary Product Color Blue - Transluscent | Natural | Red - Translucent | Yellow | Yellow - Translucent

Contact Features

Military Part Class Class I | Class II
Terminal Plating Material Tin | Tin-Lead
Contact Base Material Copper
Barrel Type Closed

Termination Features

Termination Method to Wire & Cable Crimp

Mechanical Attachment

Wire Insulation Support With

Dimensions

Recovered Inside Diameter 3.89 mm [ .153 in ]
Wire Size (AWG) 12 – 10 | 16 – 14 | 22 – 16 | 22 – 18 | 24 – 20 | 26 – 22
Wire Size (mm²) .12 – .24 | .12 – .4 | .2 – .6 | .26 – .96 | .3 – 1.42 | 1.04 – 2.62 | 1.25 – 2 | 3 – 6
Compatible Insulation Diameter Range (mm) 2.08 | 2.09 | 2.54 | 3.18 | 3.81 | 5.59 | 6.35
Compatible Insulation Diameter Range (in) .082 | .1 | .125 | .15 | .22 | .25
Barrel Inside Diameter (mm) .73 | 1.09 | 1.55 | 2.16 | 3.28 | 6.4
Barrel Inside Diameter (in) .029 | .043 | .061 | .085 | .129 | .253
Wire Size (kcmil) .202 – .81 | .238 – .475 | .32 – 1.29 | .509 – 3.26 | 2.05 – 5.18 | 5.18 – 13.1
Wire Size (CMA) 202 – 810 | 238 – 475 | 320 – 1290 | 509 – 3260 | 2050 – 5180 | 5180 – 13100
Terminal Material Thickness (mm) .38 | .46 | .51 | .56
Terminal Material Thickness (in) .015 | .018 | .02 | .022
Product Length (mm) 22.61 | 26.29 | 32.13 | 32.14 | 41.91 | 42.06 | 42.07
Product Length (in) .22 | .87 | .89 | 1.035 | 1.265 | 1.65 | 1.656

Usage Conditions

Insulation Option Fully Insulated

Operation/Application

Compatible With Wire Base Material Copper

Industry Standards

Government Qualified Splice No | Yes

Packaging Features

Packaging Quantity 1 | 25 | 50 | 100 | 500 | 1000 | 1500 | 2500 | 4000
Packaging Method Loose Piece | Tape Mounted

Reference Number

TE Internal Number CAT-P592-B98
