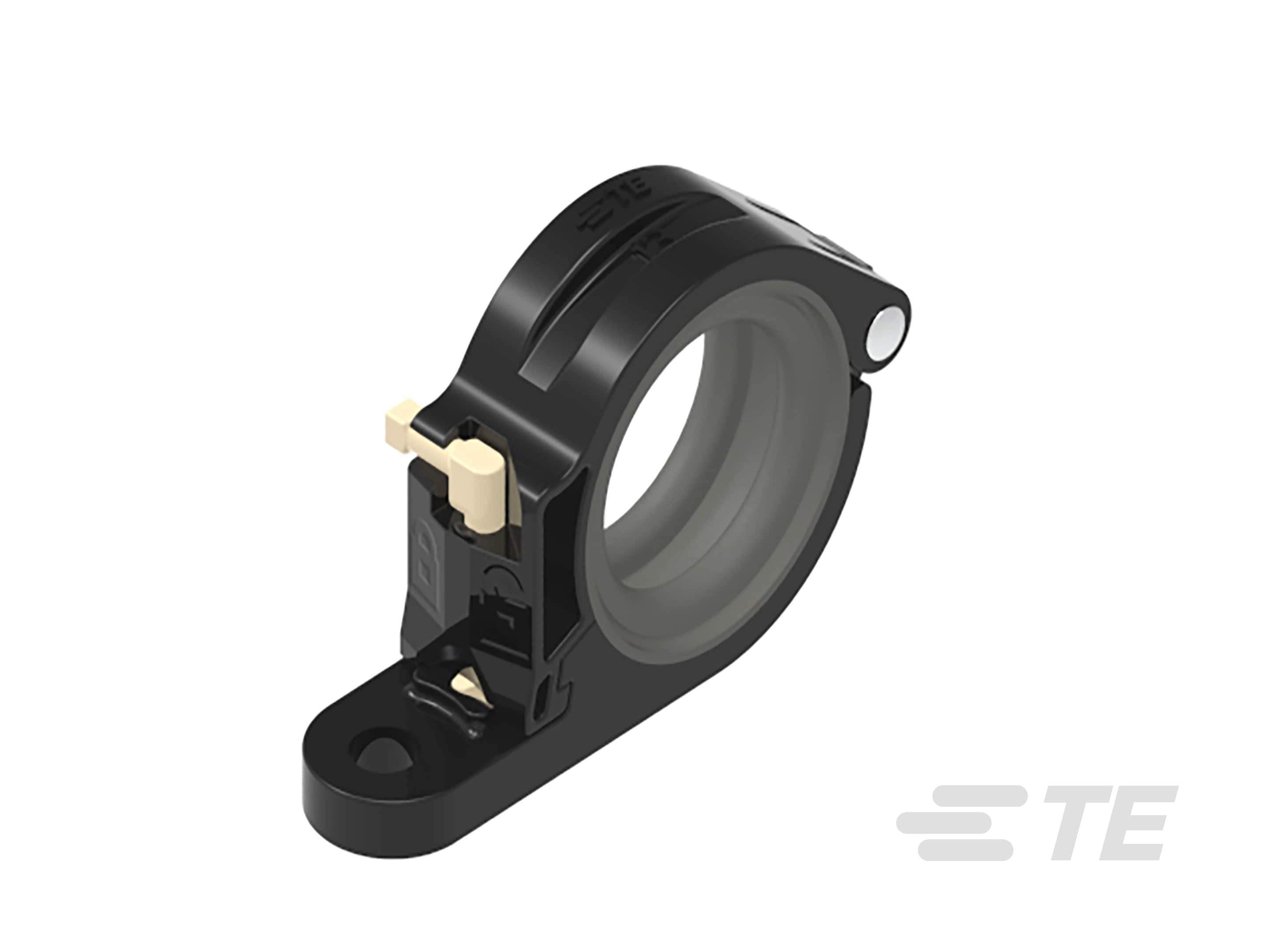

Flexible P-Clamp

Product Features

Cable Mounting Accessory Type : P-Clamp
Clamp Size : 3 | 5 | 7 | 9 | 11 | 13 | 15 | 17 | 19 | 21
Compatible Cable Bundle Diameter Range (mm): 3.18 – 6.35 | 6.35 – 9.53 | 9.53 – 12.7 | 12.7 – 15.88 | 15.88 – 19.05 | 19.05 – 22.23 | 22.23 – 25.4 | 25.4 – 28.58 | 28.58 – 31.75 | 31.75 – 34.93
Compatible Cable Bundle Diameter Range (in): .125 – .25 | .25 – .375 | .375 – .5 | .5 – .625 | .625 – .75 | .75 – .875 | .875 – 1 | 1 – 1.125 | 1.125 – 1.25 | 1.25 – 1.375

Available from

Product	TE Part #	Documents	Clamp Size	Compatible Cable Bundle Diameter Range
THA-PDKG-03	EM7078-000	Product Drawing 3D PDF	3	3.18 – 6.35 mm
THA-PDKG-07	EM7080-000	Product Drawing 3D PDF	7	9.53 – 12.7 mm
THA-PDKG-19 Buy on te.com	EM7086-000	Product Drawing 3D PDF	19	28.58 – 31.75 mm
THA-PDKG-05	EM7079-000	Product Drawing 3D PDF	5	6.35 – 9.53 mm
THA-PDKG-15 Buy on te.com	EM7084-000	Product Drawing 3D PDF	15	22.23 – 25.4 mm
THA-PDKG-09	EM7081-000	Product Drawing 3D PDF	9	12.7 – 15.88 mm
THA-PDKG-13	EM7083-000	Product Drawing 3D PDF	13	19.05 – 22.23 mm
THA-PDKG-21	EM7087-000	Product Drawing 3D PDF	21	31.75 – 34.93 mm
THA-PDKG-17	EM7085-000	Product Drawing 3D PDF	17	25.4 – 28.58 mm
THA-PDKG-11 Buy on te.com	EM7082-000	Product Drawing 3D PDF	11	15.88 – 19.05 mm

Build and price the product now

Features

Please review product documents or contact us for the latest agency approval information.

Weight per Piece (g) 3.5 | 4.6 | 5.7 | 6.7 | 7.8 | 8.9 | 10.2 | 11.6 | 12.9 | 14.2
Weight per Piece (oz) .123 | .162 | .201 | .236 | .275 | .313 | .359 | .409 | .455 | .5

Compatible Cable Bundle Diameter Range (mm) 3.18 – 6.35 | 6.35 – 9.53 | 9.53 – 12.7 | 12.7 – 15.88 | 15.88 – 19.05 | 19.05 – 22.23 | 22.23 – 25.4 | 25.4 – 28.58 | 28.58 – 31.75 | 31.75 – 34.93
Compatible Cable Bundle Diameter Range (in) .125 – .25 | .25 – .375 | .375 – .5 | .5 – .625 | .625 – .75 | .75 – .875 | .875 – 1 | 1 – 1.125 | 1.125 – 1.25 | 1.25 – 1.375
