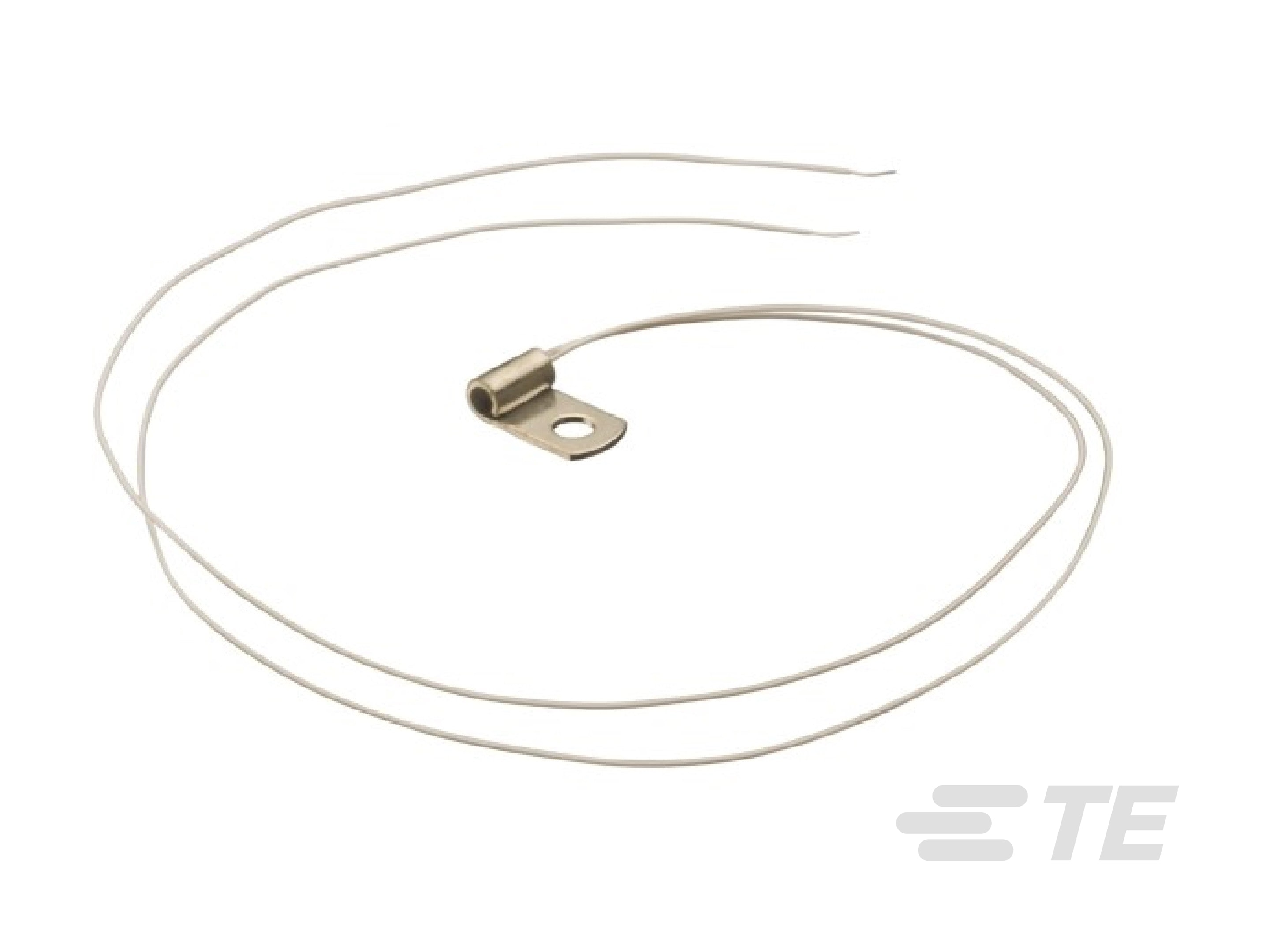

Flag Terminal NTC Surface Mount Temperature Probe

Flag Terminal NTC Surface Mount Temperature Probe-CAT-NTC0050
  • MEAS
This NTC thermistor is potted in a flag terminal housing using thermally conductive epoxy resin for improved time response. Configurable options available for resistance temperature, wire type, wire length, connector type, and flag terminal size.
More Less
Connect with Us

Product Features

  • NTC Probe Type : Temperature

  • Electrical Connection : Open End

  • Resistance (at 25°C) (kΩ): 5000 | 10000 | 30000 | 100000

  • β-Value(25/85) (K): 3694 | 3942 | 3976 | 4261

  • Accuracy (at T_ref) (°C): ± .2 from 0 – 70

Available from

LADD Inc
Overview

Features

  • Configurable product, see datasheet for ordering options
  • Long term stability
  • Temperature range from -40°C to +125°C
  • Leads stripped and tin-dipped for electrical contact

Applications

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Wire/Cladding Type  28AWG (7/36) Stranded SPC with White PTFE Insulation

  • NTC Probe Type  Temperature

  • Sensor Package  Flag Terminal

Configuration Features

  • Electrical Connection  Open End

Electrical Characteristics

  • β-Value(25/85) (K) 3694 | 3942 | 3976 | 4261

Mechanical Attachment

  • Wire Length (mm) 100 | 200 | 50

Usage Conditions

  • T_ref for Resistance  25 °C [ 25 °F ]

  • Operating Temperature Range  -40 – 125 °C [ -40 – 257 °F ]

  • Resistance (at 25°C) (kΩ) 5000 | 10000 | 30000 | 100000

  • Accuracy (at T_ref) (°C) ± .2 from 0 – 70

Reference Number

  • TE Internal Number CAT-NTC0050
