CH2-28POS Mixed Header Assemblies

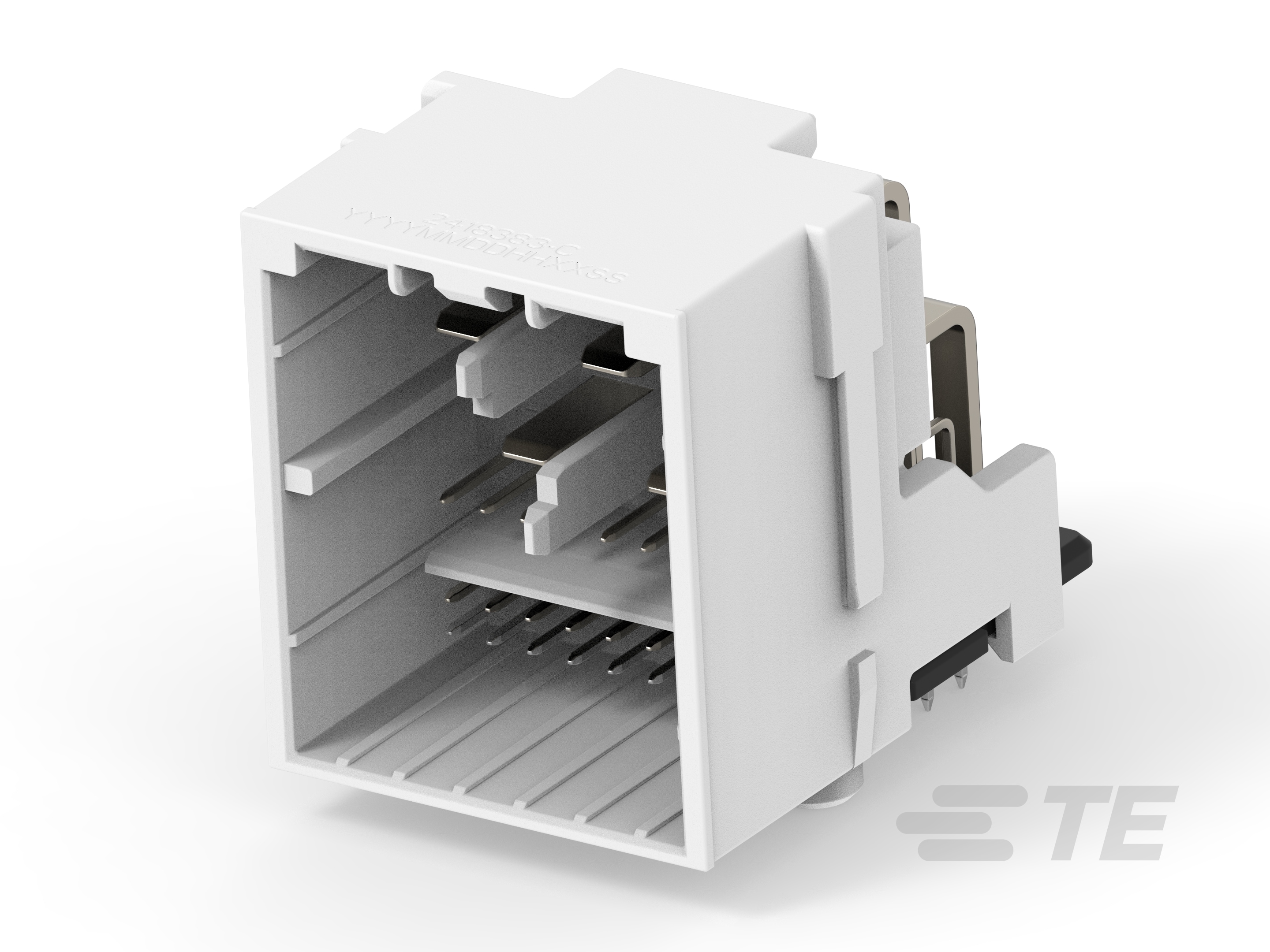

CH2-28POS Mixed Header Assemblies-CAT-NCB-CMHA228
TE Connectivity's (TE) 28 position control unit header (CH2) of mixed wire-to-board header assemblies that are compact in structural design, and offer a variety of optional interfaces to cover a wide range of current-carrying requirements.
More Less
Connect with Us

Product Features

  • PCB Mount Orientation : Right Angle

  • Termination Method to PCB : Through Hole - Solder

  • Sealable : No

  • Centerline (Pitch) : 2 mm [ .078 in ]

  • Connector System : Wire-to-Board

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector Product Type  Connector Assembly

  • Header Type  Fully Shrouded

  • Mixed & Hybrid Header  Yes

  • Connector Shape  Rectangular

  • Sealable  No

  • Connector System  Wire-to-Board

  • Connector & Contact Terminates To  Printed Circuit Board

Configuration Features

  • PCB Mount Orientation  Right Angle

  • Number of Positions  28

  • Number of Rows  5

Body Features

  • Primary Product Color  Beige | Black | Blue | Brown | Gray | Natural

Contact Features

  • Contact Type  Tab

  • Contact Mating Area Plating Material  Tin over Nickel

Termination Features

  • Termination Method to PCB  Through Hole - Solder

Mechanical Attachment

  • PCB Mount Alignment  With

  • Mating Alignment  With

  • PCB Mount Retention  With

  • Connector Mounting Type  Board Mount

Housing Features

  • Centerline (Pitch)  2 mm [ .078 in ]

Usage Conditions

  • Operating Temperature (Max)  105 °C [ 105 °F ]

  • Operating Temperature Range  -40 – 105 °C [ -40 – 105 °F ]

Operation/Application

  • Circuit Application  Power & Signal

Industry Standards

  • UL Flammability Rating  UL 94HB

Packaging Features

  • Packaging Method  Tray/Box
