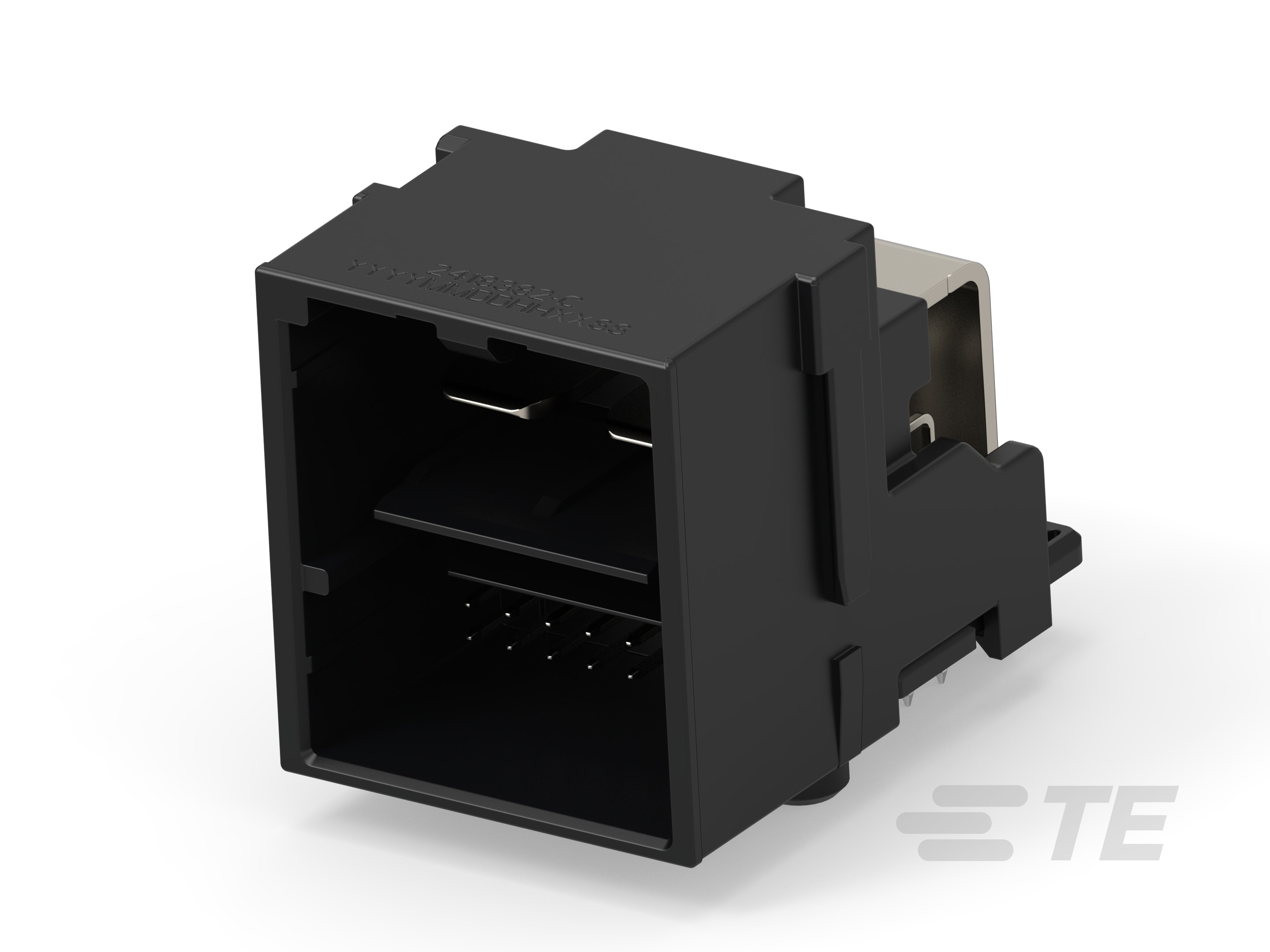

CH2-23POS Mixed Header Assemblies

CH2-23POS Mixed Header Assemblies-CAT-NCB-CMHA223
Designed for modern automotive architectures, the 23 position control unit header (CH2) assembly combines flexibility, compact design, and high performance to meet demanding power and signal requirements.
More Less
Connect with Us

Product Features

  • PCB Mount Orientation : Right Angle

  • Termination Method to PCB : Through Hole - Solder

  • Sealable : No

  • Centerline (Pitch) (mm): 2 | 8.2

  • Centerline (Pitch) (in): .078 | .323

  • Connector System : Wire-to-Board

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Header Type  Fully Shrouded

  • Connector Product Type  Connector Assembly

  • Connector Shape  Rectangular

  • Sealable  No

  • Connector System  Wire-to-Board

  • Connector & Contact Terminates To  Printed Circuit Board

Configuration Features

  • PCB Mount Orientation  Right Angle

  • Number of Positions  23

  • Number of Rows  4

Body Features

  • Connector & Keying Code  A | C

  • Primary Product Color  Black | Blue | Gray | Natural

Contact Features

  • Contact Type  Tab

  • Mating Tab Width (mm) .5 | 5.8

  • Mating Tab Width (in) .19 | .228

  • Mating Tab Thickness (mm) .4 | .8

  • Mating Tab Thickness (in) .015 | .031

  • Contact Mating Area Plating Material  Silver (Ag) | Tin (Sn) | Tin over Nickel

Termination Features

  • Termination Method to PCB  Through Hole - Solder

Mechanical Attachment

  • PCB Mount Alignment  With

  • Mating Alignment  With

  • PCB Mount Retention  With

  • Connector Mounting Type  Board Mount

Housing Features

  • Centerline (Pitch) (mm) 2 | 8.2

  • Centerline (Pitch) (in) .078 | .323

Usage Conditions

  • Operating Temperature (Max)  105 °C [ 221 °F ]

  • Operating Temperature Range (°C) -40 – 105

  • Operating Temperature Range (°F) -40 – 221 | -40 – 105

Operation/Application

  • Circuit Application  Power & Signal

Industry Standards

  • UL Flammability Rating  UL 94HB

Packaging Features

  • Packaging Method  Tray/Box
