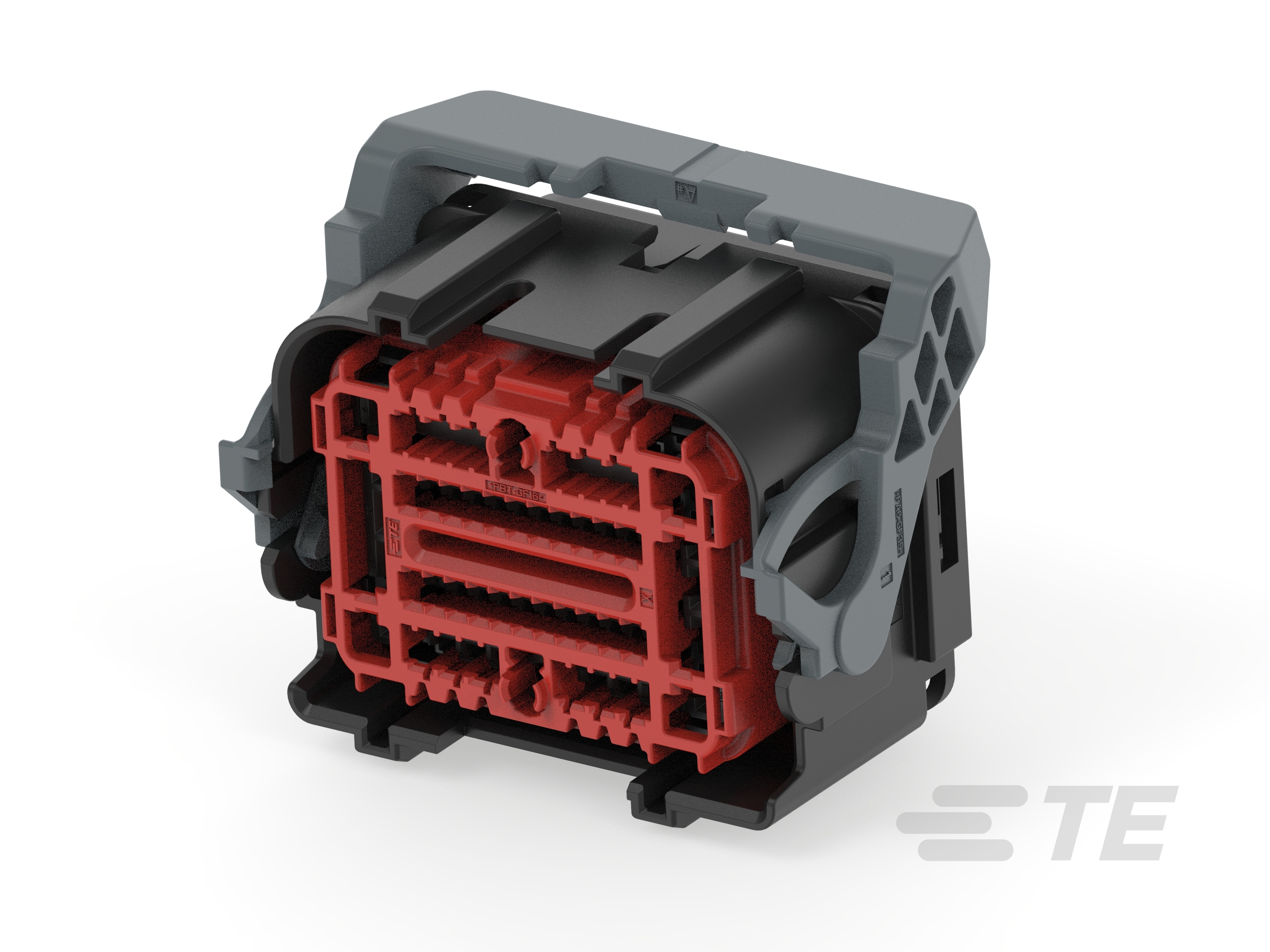

Product Type Features
-
Mixed & Hybrid Connector
Yes
-
Connector Shape
Rectangular
-
Connector & Housing Type
Housing for Female Terminals | Housing for Male Terminals
-
Sealable
Yes
-
Primary Locking Feature
Clean Body | Integrated in Housing
-
Connector System
Wire-to-Device | Wire-to-Wire
-
Connector & Contact Terminates To
Wire & Cable
Configuration Features
-
Number of Positions
68
-
Number of Rows
6
Electrical Characteristics
-
Nominal Voltage Architecture (V)
12
Body Features
-
Primary Product Color
Black | Dark Gray | Gray
-
Connector & Keying Code
A | B | C | D
Contact Features
-
Contact Type
Receptacle | Tab
-
Contact Size
.4mm | .64mm | 1.5mm | 2.8mm
-
Mating Tab Width (mm)
.64 | 1.5 | 2.8
-
Mating Tab Width (in)
.025 | .059 | .06 | .11
-
Mating Pin Diameter
.4 mm [ .016 in ]
Mechanical Attachment
-
Mating Alignment
With
-
Terminal Position Assurance
Yes
-
Mating Alignment Type
Keyed | Latch
-
Connector Mounting Type
Cable Mount (Free-Hanging)
Housing Features
-
Housing Material
PA GF
-
Centerline (Pitch) (mm)
2.6 | 3.59
-
Centerline (Pitch) (in)
.1 | .11 | .14
Dimensions
-
Product Width (mm)
46.08 | 65.6
-
Product Width (in)
1.81 | 2.58
-
Row-to-Row Spacing (mm)
3.33 | 3.54 | 5.52
-
Row-to-Row Spacing (in)
.13 | .14 | .21 | .22
-
Connector Height (mm)
45 | 53.3 | 54.3
-
Connector Height (in)
1.77 | 2.09 | 2.13
-
Product Length (mm)
61.2 | 66.4
-
Product Length (in)
2.4 | 2.41 | 2.61
Usage Conditions
-
Operating Temperature Range
-40 – 125 °C [ -40 – 257 °F ]
-
Operating Temperature (Max)
125 °C [ 257 °F ]
Operation/Application
-
Circuit Application
Power, Signal & High Speed Data | Power & Signal
Other
-
Serviceable
Yes
-
Connector Position Assurance Capable
No | Yes
Reference Number
-
TE Internal Number
CAT-N58-ATHA68
