Please review product documents or contact us for the latest agency approval information.

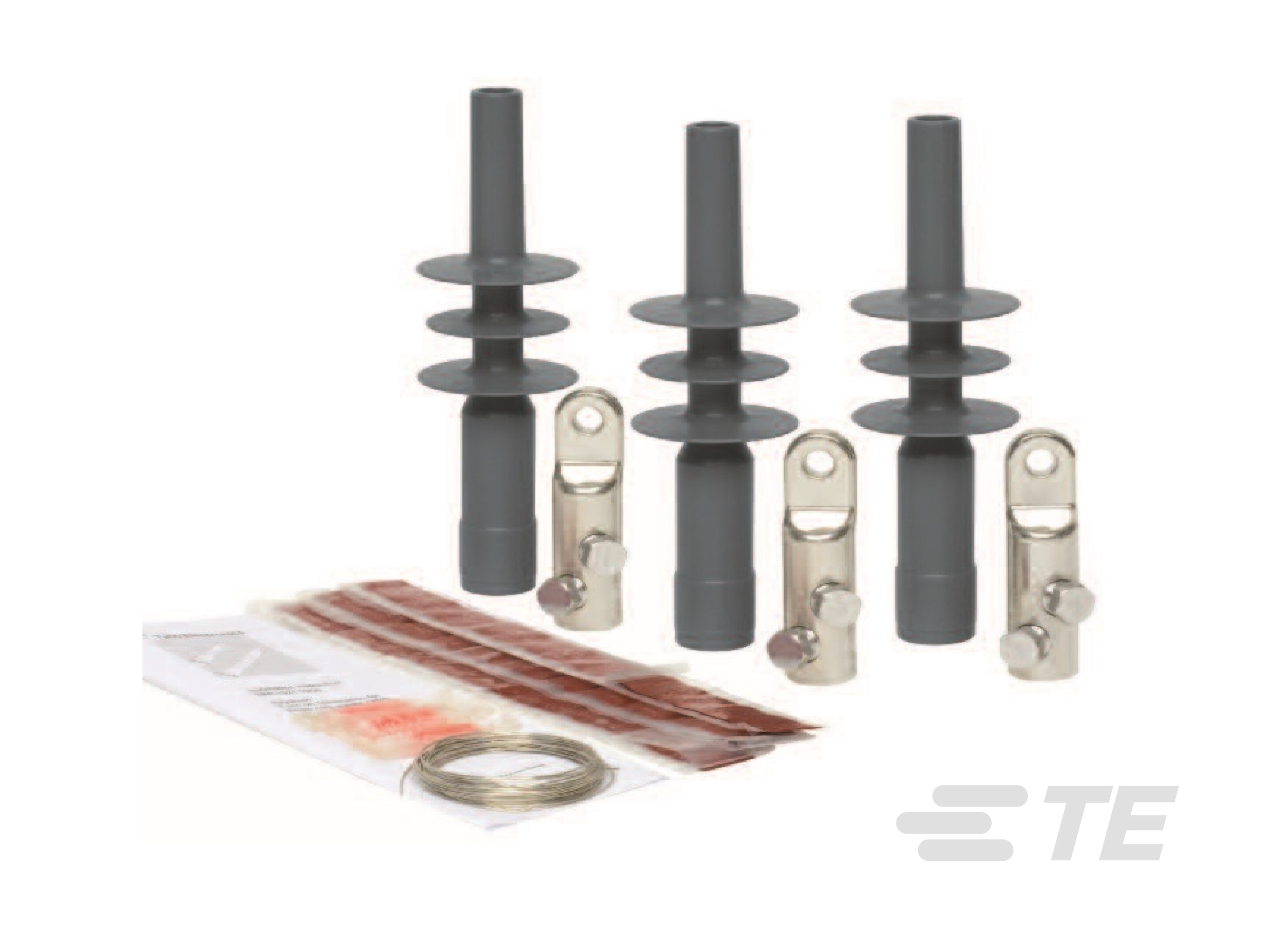

Product Type Features
-
Shelf Life
Unlimited
-
Installation Technology
Cold Applied | Cold Shrink
-
Cable Shield Style
Copper Wire
-
Termination Length (mm)
232 | 276 | 355 | 460 | 765
-
Power Component Options
Mechanical Lug Included (M12, Conductor)
Electrical Characteristics
-
Voltage Class (kV)
6.35/11(12) | 19/33(36) | 20.8/36(42) | ≤ 24
Body Features
-
Insulation Material
XLPE/EPR
-
Number of Sheds
1 | 3 | 5 | 8
Dimensions
-
Compatible Cable Cross-Section Range (mm²)
150 – 400
-
Compatible Conductor Range (AWG/kcmil)
2 – 4/0 | 1/0 | 1250 | 2 – 350 | 350 – 750 | 600 – 1000 | 750 – 2000
-
Compatible Insulation Diameter Range (mm)
24.3 – 36. | 25.8 – 37.8 | 32.4 – 48. | 43.2 – 64.
-
Compatible Insulation Diameter Range (in)
.95 – 1.41 | 1.27 – 1.89 | 1.7 – 2.52
-
Sheath Outside Diameter (mm)
22 – 32 | 26 – 39 | 26 – 36 | 26 – 35 | 31 – 44 | 32 – 44 | 35 – 44 | 35 – 48 | 36 – 41 | 41 – 52
-
Length (Installed) (mm)
225 | 246 | 270 | 274 | 292 | 350 | 372 | 456 | 457 | 656 | 657
-
Compatible Conductor Diameter Range (mm)
5.6 – 12 | 6.6 – 15 | 7.7 – 15 | 11 – 21.6 | 11 – 19.2 | 11. – 15 | 11.5 – 15 | 18.6 – 30.4
Usage Conditions
-
Operating Temperature Range (°C)
-40 – 40
Operation/Application
-
Power Component Application Type
Indoor | Outdoor
Industry Standards
-
Compatible With Approved Standards Products
CENELEC HD 629.1
Product Availability
-
Product Availability
Europe, Middle East & Africa
Other
-
Installation Instruction
English
Reference Number
-
TE Internal Number
CAT-MVT
