Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

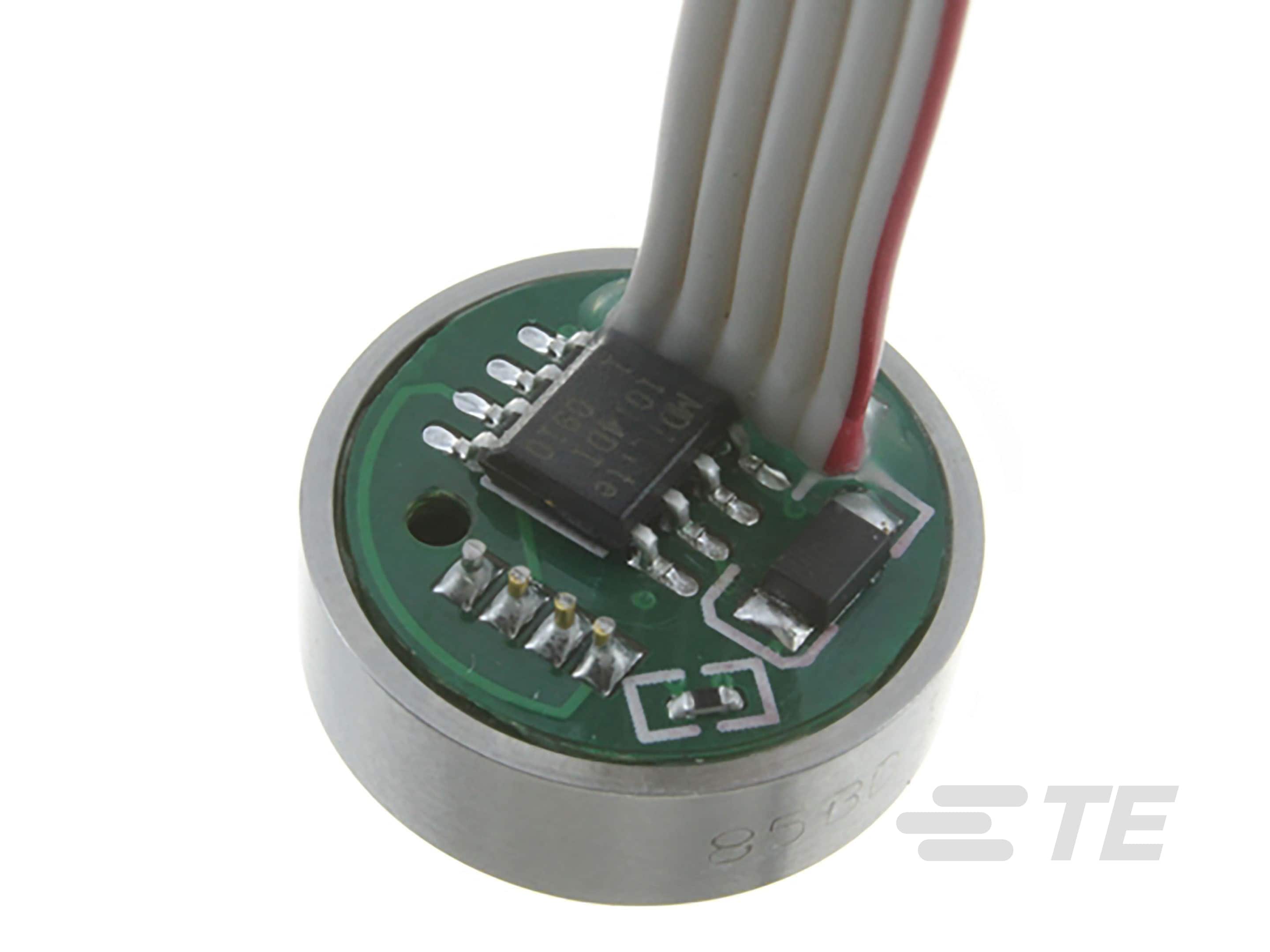

  • Pressure Sensor Type  Digital Pressure Sensor

  • Pressure Type  Absolute, Gauge

  • Sensor Package  O-Ring Mount, Threaded Process Fittings, Weldable

Configuration Features

  • Electrical Connection  Cable w/ Connector, Ribbon Cable

Electrical Characteristics

  • Supply Current (mA) 3

  • Supply Voltage Range (V) 3.3, 5

Dimensions

  • Product Diameter (mm) 15.85, 15.9

  • Product Diameter (in) .624, .625

  • Product Height (mm) 7.9, 12.87

  • Product Height (in) .31, .507

Usage Conditions

  • Total Error Band ± (%) 1

  • Pressure (bar) 2, 2.068, 3.447, 5, 10, 10.34

  • Pressure (psi) 29, 30, 50, 72.5, 145.03, 150

  • Operating Temperature Range (°C) -40 – 125, -20 – 105

  • Operating Temperature Range (°F) -40 – 257, -4 – 221

Operation/Application

  • Proof Pressure Range  2X

  • Output Interface  I²C (0x36H), SPI

  • Pressure Accuracy ± (%) .25

  • Output Signal Type  14 bit ADC, 14 bit SPI

Other

  • Sensor Options  316L Stainless Steel, Low Power, None

  • Non-Linearity ± (%) .25, 1

  • Port Fitting  1/8-27 NPT, Flush Mount, Weldable (No Thread)

Reference Number

  • TE Internal Number CAT-MIPS0036
