19MM MV OUTPUT PRESSURE SENSOR

19MM MV OUTPUT PRESSURE SENSOR-CAT-MIPS0008
  • MEAS
|
  • MEAS 82

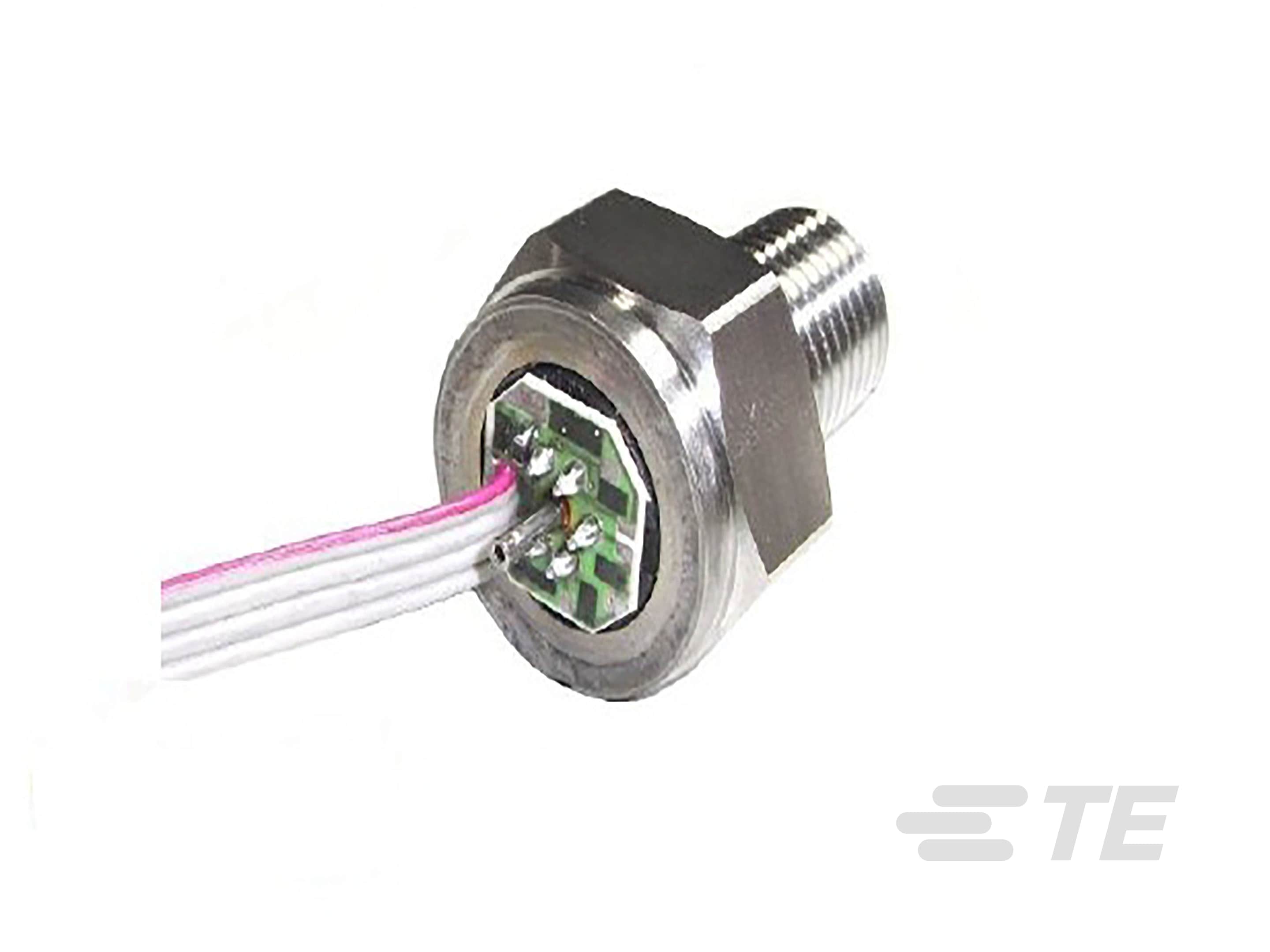

The 82 constant voltage is a 19 mm small profile, mediacompatible, piezoresistive silicon pressure sensor packaged in a316L stainless steel housing.
More Less

Product Features

  • Pressure (bar): .068, .344, 1.03, 2.06, 3.44, 6.89, 20.68, 34.47

  • Pressure (psi): 1, 5, 15, 30, 50, 100, 300, 500

  • Pressure Sensor Type : mV Output Pressure Sensors

  • Pressure Type : Absolute, Gauge

  • Output Signal Type : 100mV, 80 mV

  • Supply Voltage Range (V): 10

Available from

LADD Inc
Overview

The 82 constant voltage can be configured for o-ring mounting or threaded process fittings and is designed for OEM applications where compatibility with corrosive media is required. The sensing package utilizes silicone oil to transfer pressure from the 316L stainless steel diaphragm to the sensing element.  A ceramic substrate is attached to the package that contains laser-trimmed resistors for temperature compensation and offset correction.

Please refer to the 82 uncompensated and compensated datasheets for more information on different features of the 82.

BENEFITS

  • 316L SS Pressure Sensor
  • 19mm Diameter Package
  • 0 - 100mV Output
  • Absolute and Gage
  • Temperature Compensated
  • O-Ring Mount/Threaded Process Fittings
  • -40ºC to +125ºC Operating Temperature
  • Up to ±0.1% Pressure Non Linearity
  • Solid State Reliability
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Pressure Sensor Type  mV Output Pressure Sensors

  • Pressure Type  Absolute, Gauge

  • Sensor Package  O-Ring Mount, Threaded Process Fittings

Configuration Features

  • Electrical Connection  Cable w/ Connector, Ribbon Cable

Electrical Characteristics

  • Supply Voltage Range (V) 10

Dimensions

  • Product Diameter  19 mm [ .748 in ]

  • Product Height  6.48 mm [ .25 in ]

Usage Conditions

  • Pressure (bar) .068, .344, 1.03, 2.06, 3.44, 6.89, 20.68, 34.47

  • Pressure (psi) 1, 5, 15, 30, 50, 100, 300, 500

  • Operating Temperature Range (°C) -40 – 125, -20 – 70

  • Operating Temperature Range (°F) -40 – 257, -4 – 158

Operation/Application

  • Proof Pressure Range  10X FS, 3X

  • Output Signal Type  100mV, 80 mV

Other

  • Sensor Options  No Tube, Vent Tube

  • Non-Linearity ± (%) .1, .3

  • Port Fitting  1/4 18 NPT, 1/4-19 BSP, 1/8-27 NPT, 7/16-20 UNF, None, Weldable (No Thread)

Reference Number

  • TE Internal Number CAT-MIPS0008
