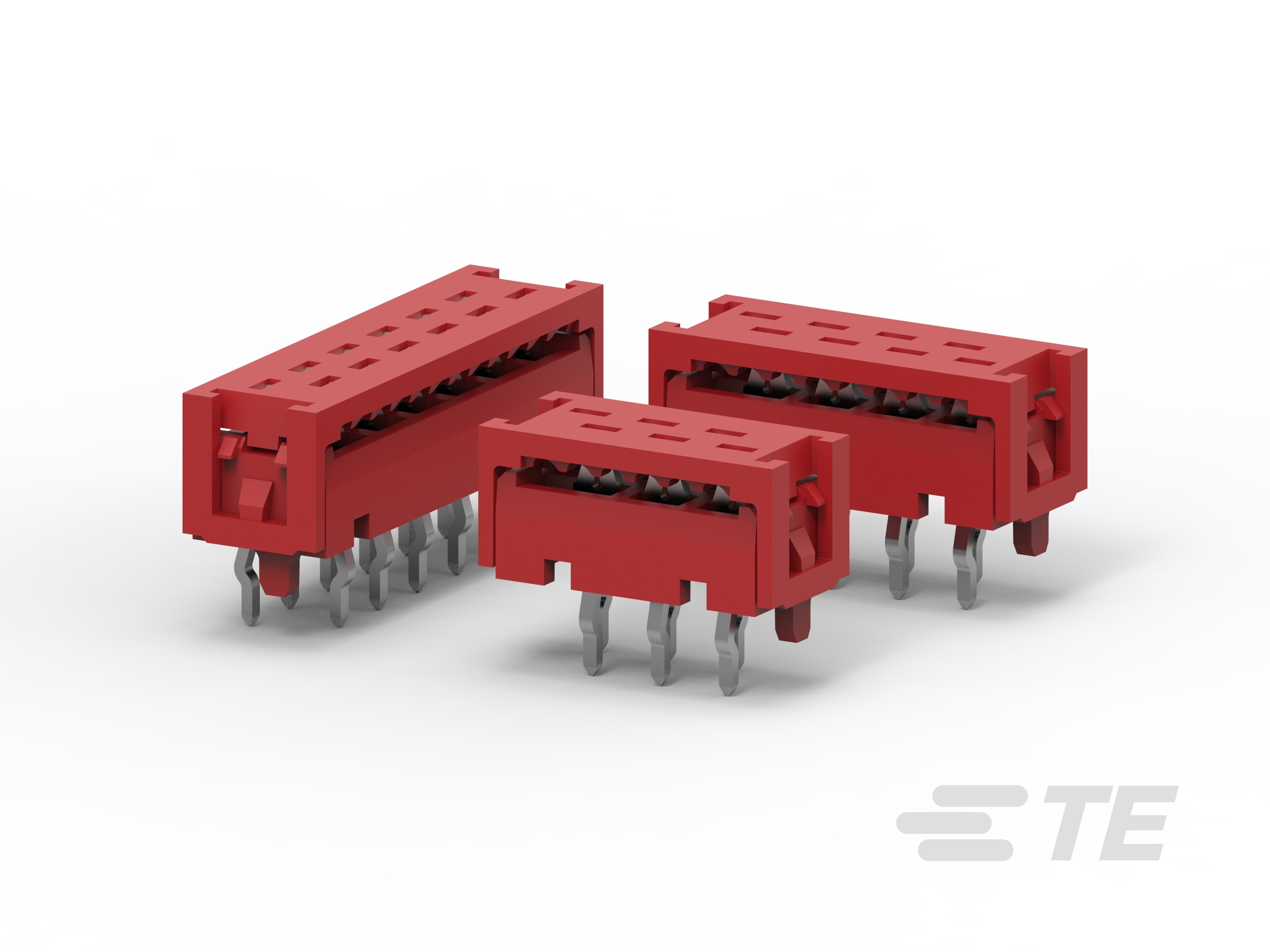

Paddle Board Connector

Paddle Board Connector-CAT-M5833-P131
  • Micro-MaTch
|
  • Micro-MaTch Industrial
Micro-MaTch Paddle Board connector for more permanent cable connections have indented solder legs and provide mechanical retention before and during soldering. For soldering to PCBs with nominal thickness of 1.6mm.
More Less
Connect with Us

Product Features

  • PCB Connector Type : PCB Mount Paddleboard Connector

  • PCB Mount Orientation : Vertical

  • Connector System : Cable-to-Board

  • Number of Positions : 4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24

  • Centerline (Pitch) : 1.27 mm [ .05 in ]

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • PCB Connector Type  PCB Mount Paddleboard Connector

  • Connector System  Cable-to-Board

  • Connector & Contact Terminates To  Printed Circuit Board | Wire & Cable

Configuration Features

  • Wire Entry Location  Top

  • PCB Mount Orientation  Vertical

  • Number of Positions  4 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 24

  • Compatible With Wire & Cable Type  Ribbon Cable

  • Number of Rows  2

Electrical Characteristics

  • Operating Voltage (VDC) 100

  • Insulation Resistance (MΩ) 1000

  • Operating Voltage (VAC) 100

Body Features

  • Primary Product Color  Red

Contact Features

  • Contact Underplating Material  Nickel

  • PCB Contact Termination Area Plating Material Thickness  3 – 5 µm [ 118.11 – 196.85 µin ]

  • PCB Contact Termination Area Plating Material Finish  Matte

  • Wire Contact Termination Area Plating Thickness  1 µm [ 39.37 µin ]

  • Contact Base Material  Phosphor Bronze

  • PCB Contact Termination Area Plating Material  Tin

  • Wire Contact Termination Area Plating Material  Tin

  • Wire Contact Termination Area Plating Material Finish  Matte

  • Contact Current Rating (Max) (A) 1.5

Termination Features

  • Rectangular Termination Post & Tail Width  .4 mm [ .015 in ]

  • Rectangular Termination Post & Tail Thickness  .5 mm [ .02 in ]

  • Termination Post & Tail Length  3.2 mm [ .125 in ]

  • Termination Method to PCB  Through Hole - Solder

Mechanical Attachment

  • PCB Mount Retention Type  Kinked Solder Tails

  • PCB Mount Alignment  With

  • PCB Mount Retention  With

Housing Features

  • Centerline (Pitch)  1.27 mm [ .05 in ]

  • Housing Material  Glass-Filled PBT

Dimensions

  • Compatible Insulation Diameter Range  .8 – 1 mm [ .035 – .039 in ]

  • Connector Length (mm) 8.6 | 11.1 | 13.6 | 16.2 | 18.7 | 21.3 | 23.8 | 26.3 | 28.9 | 34

  • Connector Length (in) .339 | .437 | .535 | .638 | .736 | .838 | .937 | 1.035 | 1.138 | 1.338

  • Row-to-Row Spacing  2 mm [ .059 in ]

  • Wire Size (AWG) 28

  • Connector Height  5.1 mm [ .2 in ]

  • Wire Size (mm²) .08 – .09

Usage Conditions

  • Operating Temperature Range  -40 – 105 °C [ -40 – 221 °F ]

Operation/Application

  • Solder Process Feature  Board Standoff

  • Circuit Application  Signal

Industry Standards

  • UL Flammability Rating  UL 94V-0

  • Compatible With Approved Standards Products  UL E28476

Packaging Features

  • Packaging Quantity  250 | 2500

  • Packaging Method  Box | Carton | Reel
