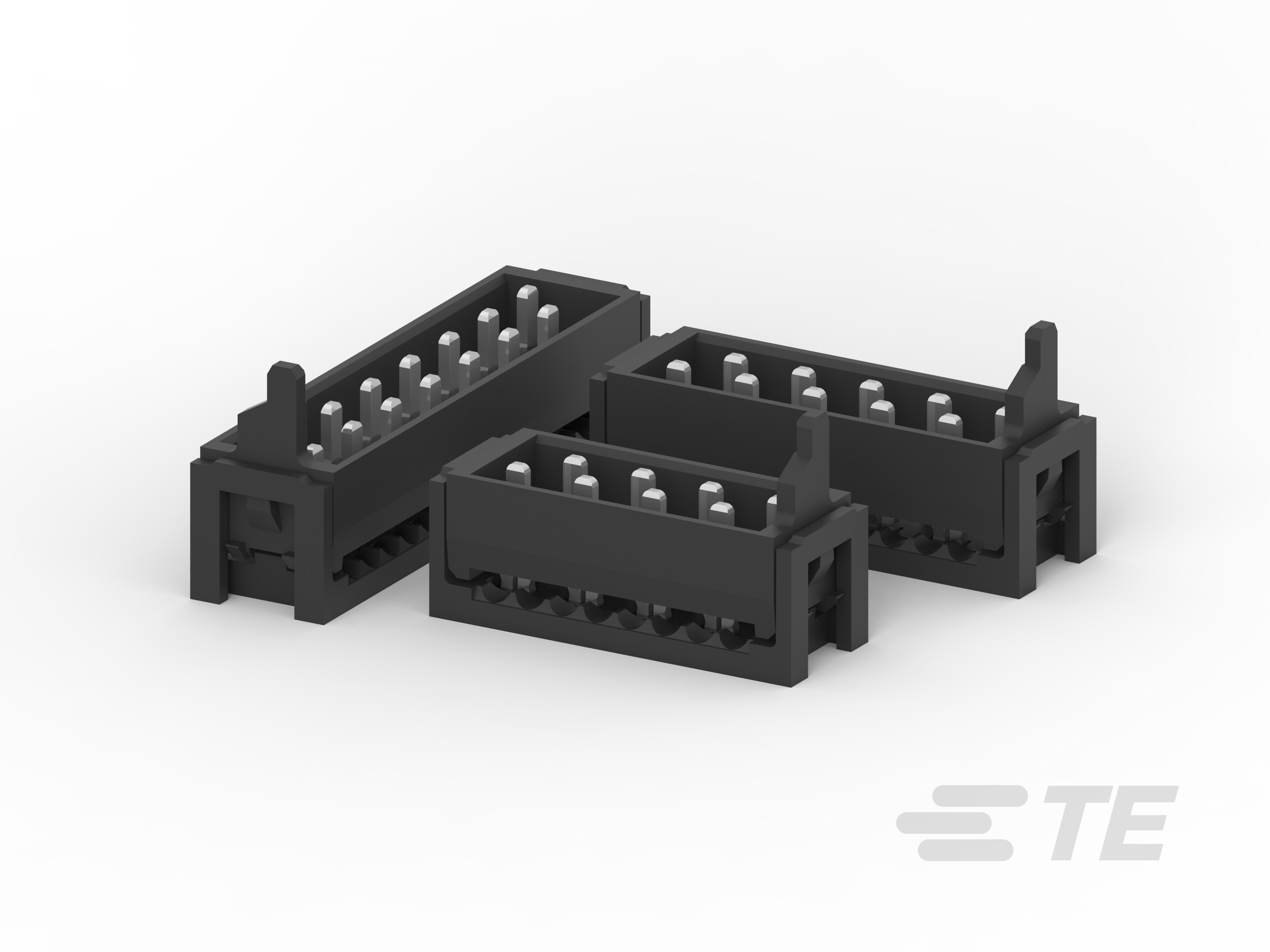

Male-on-Wire Connector, Value-Line

Please review product documents or contact us for the latest agency approval information.

• Connector Product Type  Connector Assembly

• Ribbon Cable Connector Header Type  Pin Header

• Ribbon Cable Connector Type  Male-On-Wire

• Connector System  Cable-to-Board

• Connector & Housing Type  Plug

• Connector & Contact Terminates To  Wire & Cable

• Number of Positions  4, 6, 8, 10, 12, 14, 16, 18, 20

• PCB Mount Orientation  Vertical

• Insulation Resistance (MΩ) 1000

• Operating Voltage (VDC) 100

• Primary Product Color  Black

• Daisy Chain  Without

• Connector Profile  Low

• Contact Type  Pin

• PCB Contact Termination Area Plating Material  Tin

• Contact Base Material  Copper Alloy

• Contact Mating Area Plating Material  Tin (Sn)

• Contact Underplating Material  Nickel

• Contact Current Rating (Max) (A) 1.4

• Termination Method to Wire & Cable  Insulation Displacement (IDC)

• PCB Mount Alignment  Without

• Mating Alignment  Without

• Panel Mount Feature  Without

• PCB Mount Retention  Without

• Mating Alignment Type  Polarization

• Mating Retention  Without

• Housing Material  Polyester GF

• Centerline (Pitch)  1.27 mm [ .05 in ]

• Connector Length (mm) 8.6, 11.1, 13.6, 16.2, 18.7, 21.3, 23.8, 26.3, 28.9

• Wire Size (AWG) 28

• Wire Size (mm²) .08 – .09

• Connector Height  6.8 mm [ .27 in ]

• Compatible Insulation Diameter Range  .1 – .9 mm [ .003 – .035 in ]

• Operating Temperature Range (°C) -30 – 85

• Circuit Application  Signal

• UL Flammability Rating  UL 94V-0

• Packaging Quantity  2500

• Packaging Method  Reel
