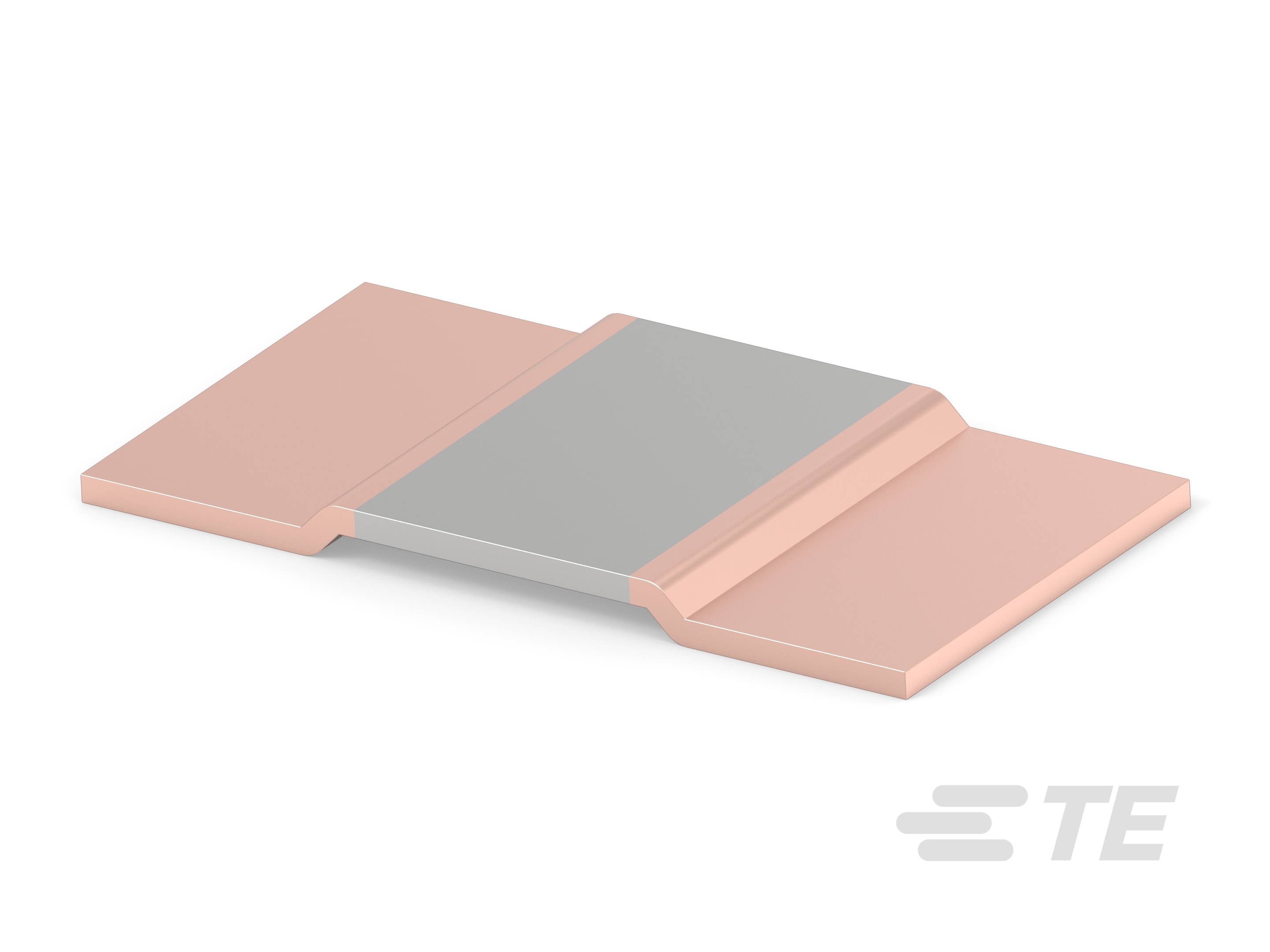

Low Ohmic Current Sense SMD Shunt Resistors - Type SVSQ Series

Low Ohmic Current Sense SMD Shunt Resistors - Type SVSQ Series-CAT-LV3-SVSQ
Equipped with heavy copper connectors, electron beam welded to a manganin or AC alloy element, SVSQ series resistor offers excellent long-term stability and low inductance, and can be mounted using re-flow soldering techniques or welding on copper.
More Less
Connect with Us

Product Features

  • Resistor Type : Low Ohmic Resistor

  • Element Type : Metal Strip

  • Package Size Code : 2512 | 3920 | 5930

  • Power Rating (W): 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 15

  • Resistance Value (Ω): 0 | .0001 | .0002 | .00025 | .0003 | .0004 | .0005 | .0006 | .0007 | .001 | .0015 | .002 | .0025 | .003 | .004 | .005 | .0068 | .01

Available from

LADD Inc
Overview
Datasheet
LOW OHMIC CURRENT SENSE SMD SHUNT RESISTORS TYPE SVSQ SERIES

TE Connectivity (TE) is pleased to offer this low ohmic precision surface mount shunt resistor. Equipped with heavy copper connectors, electron beam welded to a manganin or AC alloy element, this resistor offers excellent long-term stability and low inductance, and can be mounted using re-flow soldering techniques or welding on copper.

Surface Mount Resistors

Product Group

Small, with High Reliability

Surface mount resistors are engineered to save space while delivering reliable performance on printed circuit boards (PCBs).

Low Ohmic Current Sense SMD Shunt Resistors

Contact Us Form

Need more information? Not able to find the right part? Connect with us now to resolve all your queries!
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Resistor Type  Low Ohmic Resistor

  • Element Type  Metal Strip

  • Package Size Code  2512 | 3920 | 5930

Configuration Features

  • Number of Resistors  1

Electrical Characteristics

  • Power Rating (W) 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 12 | 15

  • Resistance Value (Ω) 0 | .0001 | .0002 | .00025 | .0003 | .0004 | .0005 | .0006 | .0007 | .001 | .0015 | .002 | .0025 | .003 | .004 | .005 | .0068 | .01

  • Resistance Class  Up to 1kΩ

  • Passive Component Tolerance (%) 1

Termination Features

  • Surface Mount Resistor Termination Type  Solder

  • Number of Terminations  2

Dimensions

  • Product Height (mm) .27 | .33 | .34 | .42 | .45 | .47 | .5 | .54 | .56 | .6 | .67 | .68 | .7 | .72 | .84 | .85 | .91 | .93 | .95 | 1 | 1.05 | 1.12 | 1.36 | 1.4 | 1.42

  • Product Height (in) .011 | .013 | .017 | .018 | .019 | .02 | .021 | .022 | .024 | .026 | .027 | .028 | .033 | .036 | .037 | .039 | .041 | .044 | .054 | .055 | .056

  • Product Length (mm) 6.35 | 10 | 15

  • Product Length (in) .25 | .394 | .591

  • Product Width (mm) 3.05 | 5.2 | 7.75

  • Product Width (in) .12 | .205 | .305

Usage Conditions

  • Operating Temperature Range (°C) -65 – 170 | -55 – 170

  • Temperature Coefficient (ppm/°C) ˂100 | ˂120 | ˂150 | ˂175 | ˂200 | ˂225 | ˂250 | ˂300 | ˂50 | ˂60 | ˂75

Industry Standards

  • Industry Standard  AEC-Q200 Compliant

  • Moisture Sensitivity Level  1

Packaging Features

  • Packaging Method  Taped & Reeled
