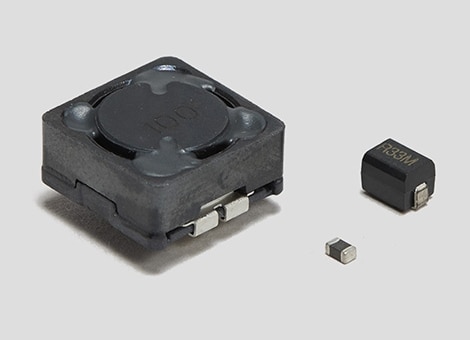

Automotive Grade SMD Inductor - Type 3656 Series

AEC- Q200 qualified automotive grade SMD (Surface Mount Devices) power inductors are small, ultra-thin inductors with high saturation current. The 3656 series inductors are suitable for surface mounting and are available in nine package sizes.

More Less

Datasheet |
Digital Datasheet|

Product Features

Inductance (µH): .1, .15, .2, .22, .3, .33, .36, .47, .56, .68, .8, .82, 1, 1.2, 1.5, 2.2, 3.3, 4.7, 5.6, 6.8, 8.2, 10, 15, 22, 33, 47, 56, 68, 82, 100
Current Rating (Max) (mA): 1500, 1600, 1800, 2000, 2200, 2300, 2400, 2500, 2600, 2800, 3000, 3100, 3200, 3300, 3500, 3700, 3800, 4000, 4100, 4400, 4500, 4800, 5000, 5200, 5500, 5600, 5800, 6000, 6100, 6500, 7000, 7500, 7600, 7800, 8000, 8200, 8500, 8700, 9000, 9500, 9700, 10000, 10600, 11000, 11400, 12000, 13000, 14000, 14500, 16000, 16500, 17000, 18000, 18700, 19000, 20000, 21000, 23000, 24000, 24800, 25000, 29000, 30000, 32000, 35000, 45000
DC Resistance (Ω): .0006, .001, .0011, .0012, .0017, .0018, .0022, .0024, .0025, .0027, .0028, .003, .0033, .0035, .0039, .004, .0041, .0042, .0045, .0047, .0049, .0053, .0055, .006, .0066, .007, .0073, .0074, .0075, .0085, .0087, .0099, .01, .0105, .011, .0114, .0118, .012, .0121, .0125, .014, .015, .0154, .016, .0165, .017, .018, .02, .0207, .0209, .022, .023, .024, .0242, .025, .026, .0266, .027, .029, .03, .0313, .0319, .033, .036, .037, .038, .041, .042, .045, .046, .047, .048, .05, .058, .06, .065, .066, .068, .07, .0753, .085, .087, .09, .092, .0935, .103, .105, .113, .12, .125, .1276, .13, .135, .14, .145, .152, .17, .1716, .175, .19, .195, .2093, .23, .234, .255, .27, .282, .34, .348, .385
Passive Component Tolerance (%): 20
Shielded : Yes

Available from

Product	TE Part #	Documents	Inductance	Current Rating (Max)	DC Resistance	Product Length	Product Width	Product Height
3656 0420 1R5 20% T&R	2176780-9	Product Drawing 3D PDF	1.5 µH	5000 mA	.046 Ω	4.4 mm	4.2 mm	1.8 mm
3656 0530 R33 20% T&R	2176781-3	Product Drawing 3D PDF	.33 µH	14000 mA	.0055 Ω	5.4 mm	5.2 mm	2.8 mm
3656 0530 1R2 20% T&R	2176781-7	Product Drawing 3D PDF	1.2 µH	8500 mA	.016 Ω	5.4 mm	5.2 mm	2.8 mm
3656 0530 1R5 20% T&R	2176781-8	Product Drawing 3D PDF	1.5 µH	8200 mA	.025 Ω	5.4 mm	5.2 mm	2.8 mm
3656 0530 3R3 20% T&R	1-2176781-0	Product Drawing 3D PDF	3.3 µH	5500 mA	.038 Ω	5.4 mm	5.2 mm	2.8 mm
3656 0630 R33 20% T&R	2176782-2	Product Drawing 3D PDF	.33 µH	21000 mA	.0035 Ω	7 mm	6.6 mm	2.8 mm
3656 0630 R47 20% T&R	2176782-3	Product Drawing 3D PDF	.47 µH	18000 mA	.0041 Ω	7 mm	6.6 mm	2.8 mm
3656 0630 R82 20% T&R	2176782-6	Product Drawing 3D PDF	.82 µH	14000 mA	.006 Ω	7 mm	6.6 mm	2.8 mm
3656 0630 1R0 20% T&R	2176782-7	Product Drawing 3D PDF	1 µH	12000 mA	.0074 Ω	7 mm	6.6 mm	2.8 mm
3656 0630 5R6 20% T&R	1-2176782-2	Product Drawing 3D PDF	5.6 µH	5500 mA	.042 Ω	7 mm	6.6 mm	2.8 mm
3656 0630 47UH 20% T&R	1-2176782-9	Product Drawing 3D PDF	47 µH	1500 mA	.385 Ω	7 mm	6.6 mm	2.8 mm
3656 0650 1R5 20% T&R	2176783-4	Product Drawing 3D PDF	1.5 µH	9500 mA	.01 Ω	7 mm	6.6 mm	4.8 mm
3656 0754 2R2 20% T&R	2176784-2	Product Drawing 3D PDF	2.2 µH	9700 mA	.0114 Ω	7.7 mm	7.2 mm	5.2 mm
3656 0754 4R7 20% T&R	2176784-4	Product Drawing 3D PDF	4.7 µH	7000 mA	.0209 Ω	7.7 mm	7.2 mm	5.2 mm
3656 0754 5R6 20% T&R	2176784-5	Product Drawing 3D PDF	5.6 µH	6500 mA	.024 Ω	7.7 mm	7.2 mm	5.2 mm
3656 0754 10UH 20% T&R	2176784-8	Product Drawing 3D PDF	10 µH	5200 mA	.038 Ω	7.7 mm	7.2 mm	5.2 mm
3656 1040 R36 20% T&R	2176785-4	Product Drawing 3D PDF	.36 µH	30000 mA	.0012 Ω	11.5 mm	10 mm	3.8 mm
3656 1040 2R2 20% T&R	1-2176785-1	Product Drawing 3D PDF	2.2 µH	12000 mA	.007 Ω	11.5 mm	10 mm	3.8 mm
3656 1040 1R5 20% T&R	1-2176785-0	Product Drawing 3D PDF	1.5 µH	16000 mA	.0042 Ω	11.5 mm	10 mm	3.8 mm
3656 1040 6R8 20% T&R	1-2176785-4	Product Drawing 3D PDF	6.8 µH	8500 mA	.025 Ω	11.5 mm	10 mm	3.8 mm
3656 1040 15UH 20% T&R	1-2176785-7	Product Drawing 3D PDF	15 µH	6500 mA	.045 Ω	11.5 mm	10 mm	3.8 mm
3656 1054 6R8 20% T&R	2176786-7	Product Drawing 3D PDF	6.8 µH	12000 mA	.014 Ω	11.5 mm	10 mm	5.2 mm
3656 1054 8R2 20% T&R	2176786-8	Product Drawing 3D PDF	8.2 µH	10600 mA	.0207 Ω	11.5 mm	10 mm	5.2 mm
3656 1054 47UH 20% T&R	1-2176786-3	Product Drawing 3D PDF	47 µH	4100 mA	.103 Ω	11.5 mm	10 mm	5.2 mm
3656 1054 68UH 20% T&R	1-2176786-4	Product Drawing 3D PDF	68 µH	3300 mA	.152 Ω	11.5 mm	10 mm	5.2 mm
3656 1265 47UH 20% T&R	2176787-9	Product Drawing 3D PDF	47 µH	5500 mA	.07 Ω	13.45 mm	12.6 mm	6.5 mm
3656 1770 15UH 20% T&R	2176788-7	Product Drawing 3D PDF	15 µH	11000 mA	.017 Ω	18.8 mm	17.3 mm	7 mm
3656 1040 R15 20% T&R	2176785-1	Product Drawing 3D PDF	.15 µH	45000 mA	.0006 Ω	11.5 mm	10 mm	3.8 mm
3656 0420 R56 20% T&R	2176780-5	Product Drawing 3D PDF	.56 µH	7000 mA	.016 Ω	4.4 mm	4.2 mm	1.8 mm
3656 0420 6R8 20% T&R	1-2176780-3	Product Drawing 3D PDF	6.8 µH	2400 mA	.175 Ω	4.4 mm	4.2 mm	1.8 mm
3656 0420 10UH 20% T&R	1-2176780-4	Product Drawing 3D PDF	10 µH	1600 mA	.282 Ω	4.4 mm	4.2 mm	1.8 mm
3656 0530 R47 20% T&R	2176781-4	Product Drawing 3D PDF	.47 µH	11000 mA	.0085 Ω	5.4 mm	5.2 mm	2.8 mm
3656 0530 10UH 20% T&R	1-2176781-3	Product Drawing 3D PDF	10 µH	3200 mA	.125 Ω	5.4 mm	5.2 mm	2.8 mm
3656 0630 3R3 20% T&R	1-2176782-0	Product Drawing 3D PDF	3.3 µH	8500 mA	.022 Ω	7 mm	6.6 mm	2.8 mm
3656 0650 1R0 20% T&R	2176783-3	Product Drawing 3D PDF	1 µH	12000 mA	.0066 Ω	7 mm	6.6 mm	4.8 mm
3656 0650 2R2 20% T&R	2176783-5	Product Drawing 3D PDF	2.2 µH	9000 mA	.0125 Ω	7 mm	6.6 mm	4.8 mm
3656 0650 3R3 20% T&R	2176783-6	Product Drawing 3D PDF	3.3 µH	8500 mA	.022 Ω	7 mm	6.6 mm	4.8 mm
3656 0754 33UH 20% T&R	1-2176784-1	Product Drawing 3D PDF	33 µH	3200 mA	.1276 Ω	7.7 mm	7.2 mm	5.2 mm
3656 0754 100UH 20% T&R	1-2176784-5	Product Drawing 3D PDF	100 µH	1800 mA	.348 Ω	7.7 mm	7.2 mm	5.2 mm
3656 1040 R68 20% T&R	2176785-7	Product Drawing 3D PDF	.68 µH	23000 mA	.0024 Ω	11.5 mm	10 mm	3.8 mm
3656 1040 R80 20% T&R	2176785-8	Product Drawing 3D PDF	.8 µH	23000 mA	.0027 Ω	11.5 mm	10 mm	3.8 mm
3656 1040 10UH 20% T&R	1-2176785-6	Product Drawing 3D PDF	10 µH	7800 mA	.03 Ω	11.5 mm	10 mm	3.8 mm
3656 1040 100UH 20% T&R	2-2176785-2	Product Drawing 3D PDF	100 µH	2000 mA	.34 Ω	11.5 mm	10 mm	3.8 mm
3656 1054 1R5 20% T&R	2176786-3	Product Drawing 3D PDF	1.5 µH	24800 mA	.0042 Ω	11.5 mm	10 mm	5.2 mm
3656 1054 2R2 20% T&R	2176786-4	Product Drawing 3D PDF	2.2 µH	23000 mA	.0049 Ω	11.5 mm	10 mm	5.2 mm
3656 1054 3R3 20% T&R	2176786-5	Product Drawing 3D PDF	3.3 µH	18700 mA	.0074 Ω	11.5 mm	10 mm	5.2 mm
3656 1054 33UH 20% T&R	1-2176786-2	Product Drawing 3D PDF	33 µH	4800 mA	.0753 Ω	11.5 mm	10 mm	5.2 mm
3656 1054 100UH 20% T&R	1-2176786-5	Product Drawing 3D PDF	100 µH	2800 mA	.234 Ω	11.5 mm	10 mm	5.2 mm
3656 0530 4R7 20% T&R	1-2176781-1	Product Drawing 3D PDF	4.7 µH	4500 mA	.06 Ω	5.4 mm	5.2 mm	2.8 mm
3656 0530 6R8 20% T&R	1-2176781-2	Product Drawing 3D PDF	6.8 µH	3500 mA	.09 Ω	5.4 mm	5.2 mm	2.8 mm

Overview

Datasheet

Automotive Grade SMD Inductor - Type 3656 Series

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Element Type Wire Wound
Shelf Life 2 Years

Electrical Characteristics

Inductance (µH) .1, .15, .2, .22, .3, .33, .36, .47, .56, .68, .8, .82, 1, 1.2, 1.5, 2.2, 3.3, 4.7, 5.6, 6.8, 8.2, 10, 15, 22, 33, 47, 56, 68, 82, 100
Current Rating (Max) (mA) 1500, 1600, 1800, 2000, 2200, 2300, 2400, 2500, 2600, 2800, 3000, 3100, 3200, 3300, 3500, 3700, 3800, 4000, 4100, 4400, 4500, 4800, 5000, 5200, 5500, 5600, 5800, 6000, 6100, 6500, 7000, 7500, 7600, 7800, 8000, 8200, 8500, 8700, 9000, 9500, 9700, 10000, 10600, 11000, 11400, 12000, 13000, 14000, 14500, 16000, 16500, 17000, 18000, 18700, 19000, 20000, 21000, 23000, 24000, 24800, 25000, 29000, 30000, 32000, 35000, 45000
DC Resistance (Ω) .0006, .001, .0011, .0012, .0017, .0018, .0022, .0024, .0025, .0027, .0028, .003, .0033, .0035, .0039, .004, .0041, .0042, .0045, .0047, .0049, .0053, .0055, .006, .0066, .007, .0073, .0074, .0075, .0085, .0087, .0099, .01, .0105, .011, .0114, .0118, .012, .0121, .0125, .014, .015, .0154, .016, .0165, .017, .018, .02, .0207, .0209, .022, .023, .024, .0242, .025, .026, .0266, .027, .029, .03, .0313, .0319, .033, .036, .037, .038, .041, .042, .045, .046, .047, .048, .05, .058, .06, .065, .066, .068, .07, .0753, .085, .087, .09, .092, .0935, .103, .105, .113, .12, .125, .1276, .13, .135, .14, .145, .152, .17, .1716, .175, .19, .195, .2093, .23, .234, .255, .27, .282, .34, .348, .385
Passive Component Tolerance (%) 20

Dimensions

Product Length (mm) 4.4, 5.4, 7, 7.7, 11.5, 13.45, 18.8
Product Length (in) .027, .173, .213, .276, .303, .453, .529, .74
Product Width (mm) 4.2, 5.2, 6.6, 7.2, 10, 12.6, 17.3
Product Width (in) .165, .205, .26, .283, .394, .496, .681
Product Height (mm) 1.8, 2.8, 3.8, 4.8, 5.2, 6.5, 7
Product Height (in) .072, .110, .11, .15, .189, .205, .256, .276

Usage Conditions

Operating Temperature Range (°C) -55 – 155

Operation/Application

Shielded Yes

Industry Standards

Industry Standard AEC-Q200 Compliant
Moisture Sensitivity Level 1, Level 1

Packaging Features

Packaging Method Taped & Reeled

Other

Passive Component Comment Shelf Life Based on Date of Manufacture

Reference Number

TE Internal Number CAT-LV2-3656
