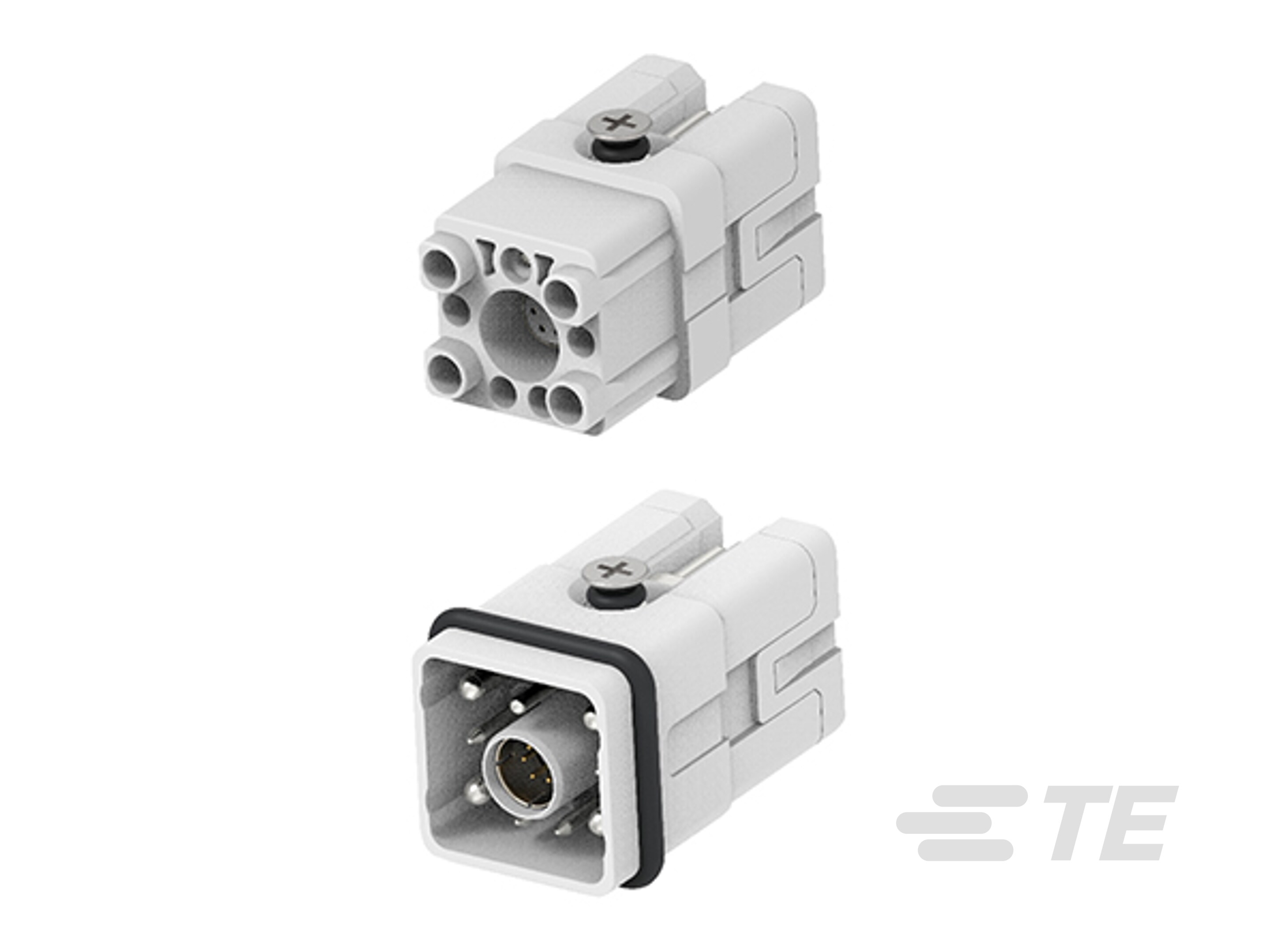

HQ-4/4/6 Hybrid Insert with CAT5 Ethernet: Enhanced Power, Signal, and Data Transmission

HQ-4/4/6 Hybrid Insert with CAT5 Ethernet: Enhanced Power, Signal, and Data Transmission-CAT-LS0-EECP60656
HDC Hybrid Insert, a cutting-edge solution designed for power, signal, and Ethernet data transmission. The Hybrid Insert has strong shielding for fast and reliable data transfer at CAT5 speeds. This innovative solution enhances connection reliability and accuracy, making it ideal for industrial applications requiring robust and precise connectivity. Our Hybrid Insert combines power and data functions in a single connector, delivering unparalleled signal integrity and efficiency. Experience the latest in industrial connector technology with TE Connectivity's Hybrid Insert.
More Less

Product Features

  • Number of Positions : 6

  • Connector System : Cable-to-Panel

  • Connector & Contact Terminates To : Wire & Cable

  • Contact Current Rating (Max) (A): 1.2

  • Circuit Application : High Speed Data

Available from

LADD Inc
Overview

Battery Energy Storage Systems

Battery Energy Storage Systems

TE Connectivity provides battery energy storage system (BESS) solutions to support the growing future of energy infrastructure needs and challenges.

 Know More
Datasheet (English)
HQ-4/4/6 HYBRID INSERT WITH CAT5 ETHERNET
Datasheet (Chinese)
HQ-4/4/6 HYBRID INSERT WITH CAT5 ETHERNET
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Assembly Type  Electrical Connector

  • Circular Connector Shell Type  Metal-Shell

  • Assembly Requirement  Unassembled Kit

  • Connector Product Type  Connector Kit

  • Connector System  Cable-to-Panel

  • Connector & Contact Terminates To  Wire & Cable

  • Circular Connector Type  Plug, Receptacle

  • Shell Type  Front Metal Shell

Configuration Features

  • Number of Positions  6

  • Number of Power Positions  0

  • Number of Signal Positions  0

Electrical Characteristics

  • Operating Voltage (VDC) 30

  • Operating Voltage (VAC) 30

  • EMI & RFI Protection & Suppression Type  Shielding

Signal Characteristics

  • Data Rate (Gb/s) ≤1

Body Features

  • Primary Product Color  Natural

  • Shell Plating Material  Nickel over Copper

  • Shell Base Material  Brass

  • Circular Connector Insulation Material Type  PBT

Contact Features

  • Contact Current Rating (Max) (A) 1.2

  • Circular Connector Contact Type  Pin, Socket

Mechanical Attachment

  • Mating Alignment Type  1 Key

Dimensions

  • Wire Size (mm²) .03 – .35

  • Wire Size (AWG) 22 – 32

Usage Conditions

  • Operating Temperature Range  -40 – 125 °C [ -40 – 257 °F ]

Operation/Application

  • Circuit Application  High Speed Data

  • Shielded  Yes

Industry Standards

  • UL Flammability Rating  UL 94V-0

  • Compatible With Approved Standards Products  UL

Packaging Features

  • Packaging Quantity  1

Other

  • Number of High Speed Data Positions  6

Reference Number

  • TE Internal Number CAT-LS0-EECP60656
