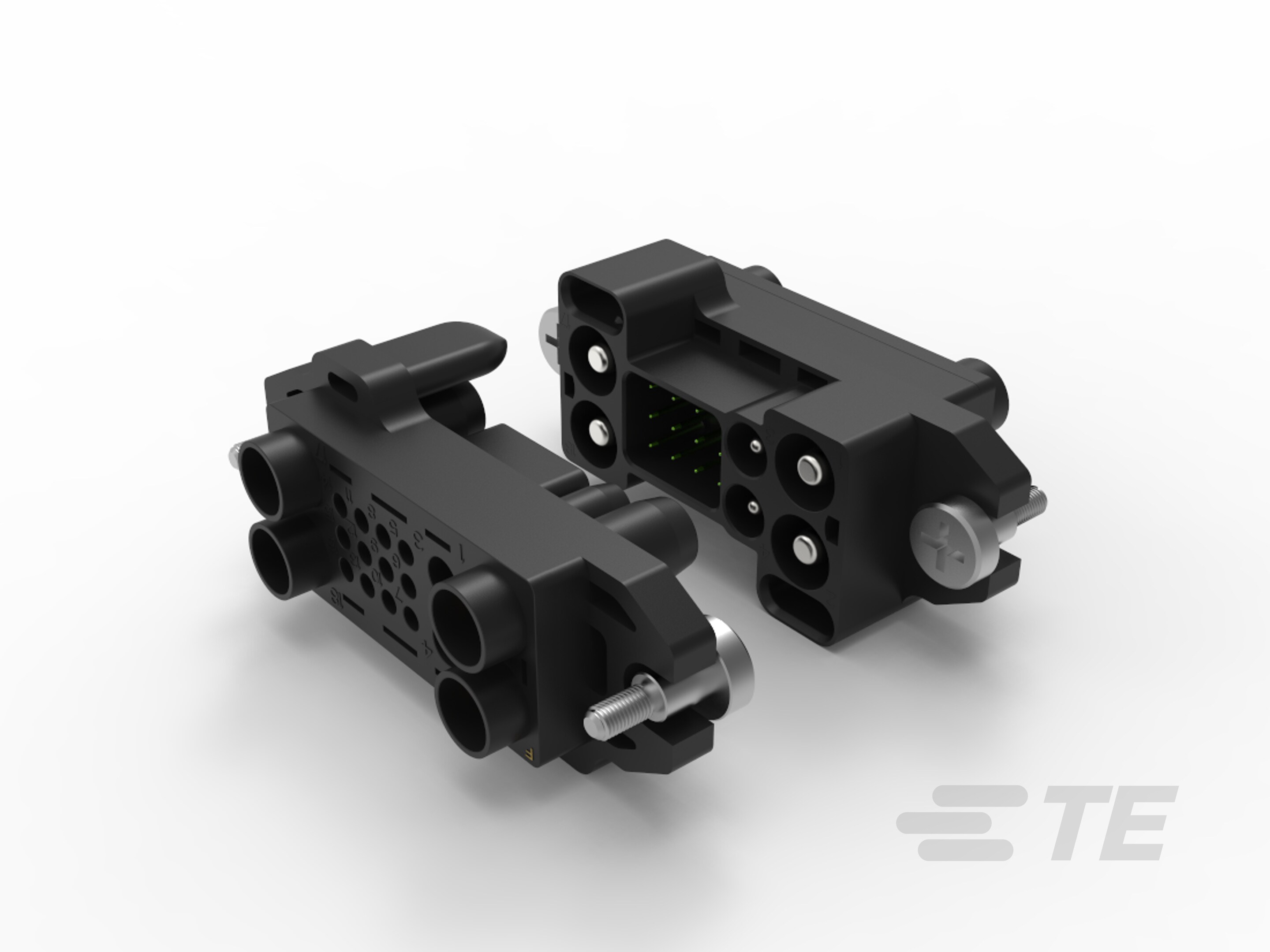

BPSC Stacked Hybrid Connector: Male Female Contact, 7-12 AWG
The HDC BPSC Stacked Hybrid Connector provides a reliable and more flexible residential BESS power and signal connection, applicable for Battery Energy Storage Systems (BESS).
Product Features
-
Contact Type : Pin, Socket
-
Contact Mating Area Plating Material : Gold (Au), Silver (Ag)
-
Wire Contact Termination Area Plating Material : Gold, Silver, Tin, Tin over Nickel
-
Contact Retention Within Housing : With
-
Contact Retention Type Within Housing : Locking Spring
Overview
Features
Please review product documents or contact us for the latest agency approval information.
Product Type Features
-
Discrete Wire Type Solid or Stranded, Stranded
Electrical Characteristics
-
Contact Resistance (mΩ) 1, 5
Contact Features
-
Contact Underplating Material Copper or Nickel
-
Contact Length (mm) 20, 23.3, 27.5
-
Barrel Type Closed, Open
-
Contact Diameter (mm) 1, 4.5, 8
-
Contact Shape & Form Round
-
Contact Type Pin, Socket
-
Contact Mating Area Plating Material Gold (Au), Silver (Ag)
-
Wire Contact Termination Area Plating Material Gold, Silver, Tin, Tin over Nickel
-
Contact Retention Within Housing With
-
Contact Base Material Copper Alloy
-
Contact Current Rating (Max) (A) 5, 20
Termination Features
-
Termination Method to Wire & Cable Crimp
-
Product Terminates To Wire & Cable
Mechanical Attachment
-
Contact Retention Type Within Housing Locking Spring
Dimensions
-
Wire Size (AWG) 7, 12
Usage Conditions
-
Operating Temperature Range -40 – 125 °C [ -40 – 257 °F ]
Operation/Application
-
Circuit Application Power & Signal, Signal
Packaging Features
-
Packaging Method Bag & Box
Reference Number
-
TE Internal Number CAT-LS0-BMFC
