View products below to see detailed pricing

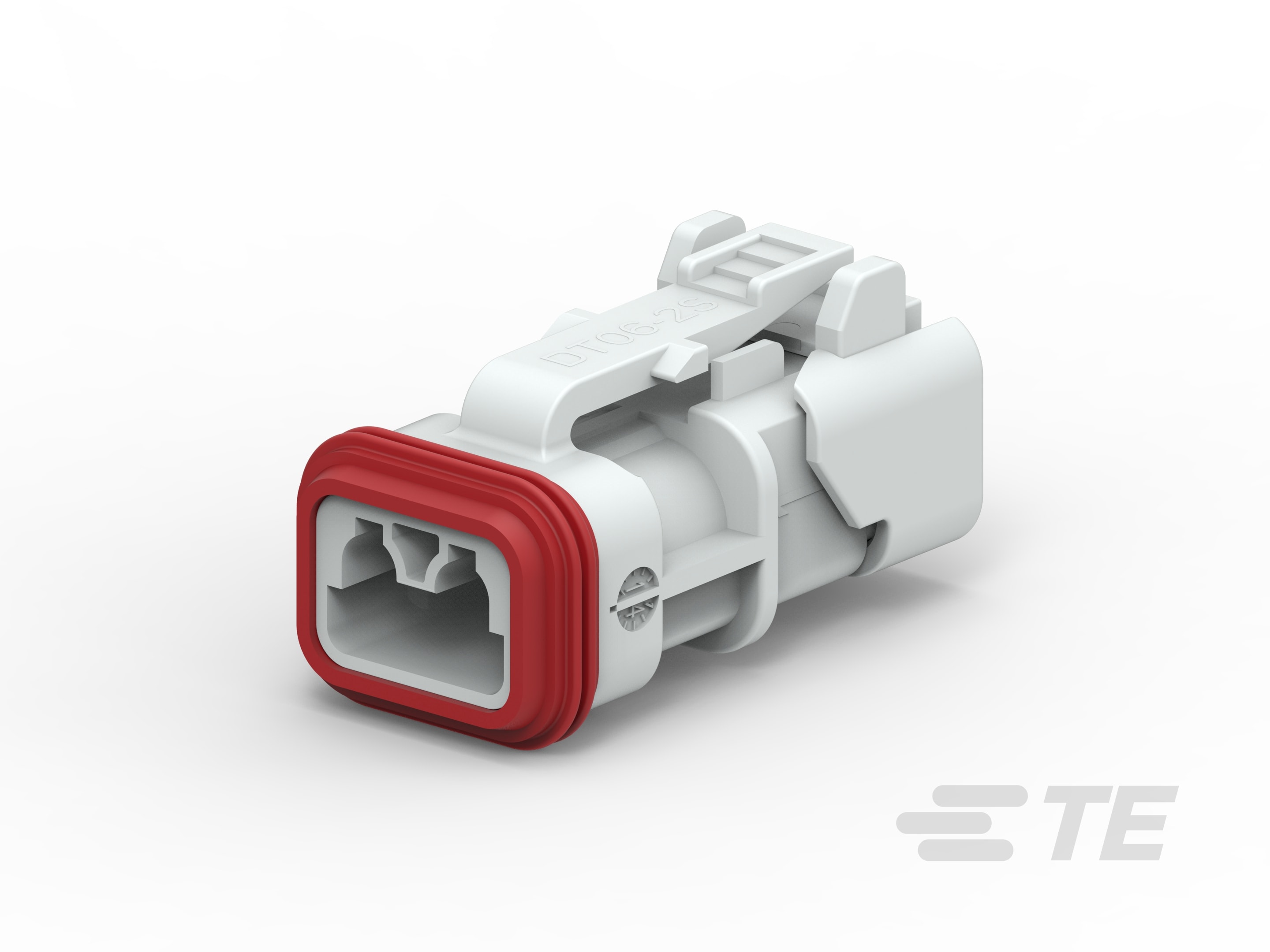

DEUTSCH DT Integrated Component

Product Features

Number of Positions : 2, 3, 4, 6, 8, 12, 102
Connector & Housing Type : Housing for Female Terminals, Housing for Male Terminals, Receptacle
Mating Pin Diameter (mm): 1.02, 1.5, 1.57, 1.59, 1.6, 2.39, 3.61, 5.72
Mating Pin Diameter (in): .04, .06, .062, .063, .094, .142, .225
Connector System : Bus Bar-to-Wire, Component-to-Wire, Wire-to-Wire
Centerline (Pitch) (mm): 3.81, 4.19, 4.44, 4.47, 4.5, 5.46, 5.5, 8.66, 8.7, 9.09, 9.12
Centerline (Pitch) (in): .15, .165, .175, .176, .215, .216, .341, .358, .359

Available from

Product	TE Part #	Documents	Connector & Housing Type	Number of Positions	Sealable	Operating Temperature Range	Number of Rows	Connector Position Assurance Capable	Primary Locking Feature	Connector System	Centerline (Pitch)	Mating Pin Diameter	Primary Product Color	Connector & Contact Terminates To	Contact Current Rating (Max)	Circuit Application	Connector Mounting Type	Operating Temperature (Max)	Nominal Voltage Architecture	Connector & Keying Code	EU RoHS Compliance	EU ELV Compliance
REC, 6P, BLK, BUSBAR 2X3, NICKEL Buy on te.com	DT04-6P-EP14	Product Drawing 3D PDF	Housing for Male Terminals	6	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	3.81 mm	1.59 mm	Black	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
REC, 12P, BLK, BUSBAR 1X12, GOLD, B Buy on te.com	DT04-12PB-P016	Product Drawing 3D PDF	Housing for Male Terminals	12	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	4.44 mm	1.59 mm	Black	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	B	-	-
REC, 6P, GRY, BUSBAR 1X6, NICKEL Buy on te.com	DT04-6P-P021	3D PDF	Housing for Male Terminals	6	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	3.81 mm	1.59 mm	Gray	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
REC, 2P, BLK, 1.5K OHM RESISTOR, NI Buy on te.com	DT04-2P-RT26	Product Drawing 3D PDF	Housing for Male Terminals	2	Yes	-55 – 125 °C	1	No	Integrated in Housing	Wire-to-Wire	5.46 mm	1.59 mm	Black	Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
REC, 2P, BLK, 120 OHM RESISTOR, AU, B Buy on te.com	DTM04-2P-EP10	Product Drawing 3D PDF	Housing for Male Terminals	2	Yes	-55 – 125 °C	1	No	Integrated in Housing	Component-to-Wire	4.19 mm	1.02 mm	Black	Wire & Cable	7.5 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	B	-	-
REC, 8P, GRY, BUSBAR 2X4, GOLD, A Buy on te.com	YDT04-08PA-P027000	3D PDF	Housing for Male Terminals	8	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	9.12 mm	1.59 mm	Gray	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 79 V	A	-	-
REC, 12P, BLK, BUSBAR 4X3, NICKEL, B Buy on te.com	DT04-12PB-P030	Product Drawing 3D PDF	Housing for Male Terminals	12	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	4.44 mm	1.59 mm	Black	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	B	-	-
REC, 2P, BLK, 400V, 1.00V, 3A DIODE, NI	DT04-2P-RT02	Product Drawing 3D PDF	Housing for Male Terminals	2	Yes	-55 – 125 °C	1	No	Integrated in Housing	Wire-to-Wire	5.46 mm	1.59 mm	Black	Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
REC, 2P, BLK, 120 OHM RESISTOR, NI Buy on te.com	DT04-2P-RT24	Product Drawing 3D PDF	Housing for Male Terminals	2	Yes	-55 – 125 °C	1	No	Integrated in Housing	Wire-to-Wire	5.46 mm	1.59 mm	Black	Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
REC, 4P, GRY, BUSBAR, NICKEL Buy on te.com	DT04-4P-P021	3D PDF	Housing for Male Terminals	4	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	4.47 mm	1.59 mm	Gray	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
REC, 12P, BLK, BUSBAR 2X6, NICKEL, B Buy on te.com	DT04-12PB-P026	Product Drawing 3D PDF	Housing for Male Terminals	12	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	4.44 mm	1.59 mm	Black	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	B	-	-
PLG, 3P, BLK, 120 OHM RESISTOR	DT06-3S-EP10	Product Drawing 3D PDF	Housing for Female Terminals	3	Yes	-55 – 125 °C	2	No	Integrated in Housing	Wire-to-Wire	8.66 mm	1.59 mm	Black	Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
REC, 2P, GRY, 4700 OHM RESISTOR, AU Buy on te.com	DT04-2P-P049	Product Drawing 3D PDF	Housing for Male Terminals	2	Yes	-55 – 125 °C	1	No	Integrated in Housing	Wire-to-Wire	5.46 mm	1.59 mm	Gray	Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
REC, 2P, BLK, 511 OHM RESISTOR, NI Buy on te.com	DT04-2P-RT21	Product Drawing 3D PDF	Housing for Male Terminals	2	Yes	-55 – 125 °C	1	No	Integrated in Housing	Wire-to-Wire	5.46 mm	1.59 mm	Black	Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
REC, 3P, BLK, 120 OHM RESISTOR Buy on te.com	DT04-3P-EP10	Product Drawing 3D PDF	Housing for Male Terminals	3	Yes	-55 – 125 °C	2	No	Integrated in Housing	Wire-to-Wire	8.7 mm	1.59 mm	Black	Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
REC, 4P, BLK, BUSBAR, NICKEL Buy on te.com	DT04-4P-EP13	Product Drawing 3D PDF	Housing for Male Terminals	4	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	4.47 mm	1.59 mm	Black	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
REC, 8P, GRY, BUSBAR 5X3, NICKEL, A	DT04-08PA-P028	3D PDF	Housing for Female Terminals	8	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	9.09 mm	1.57 mm	Gray	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	A	-	-
REC, 8P, BLK, BUSBAR 5X3, NICKEL, B Buy on te.com	DT04-08PB-P028	Product Drawing 3D PDF	Housing for Female Terminals	8	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	9.09 mm	1.57 mm	Black	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 58 V	B	-	-
REC, 2P, BLK, 27K OHM RESISTOR, NI	DT04-2P-RT25	Product Drawing 3D PDF	Housing for Male Terminals	2	Yes	-55 – 125 °C	1	No	Integrated in Housing	Wire-to-Wire	5.46 mm	1.59 mm	Black	Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
REC, 8P, GRY, BUSBAR 1X8, NICKEL, A Buy on te.com	DT04-08PA-P021	3D PDF	Housing for Female Terminals	8	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	9.09 mm	1.57 mm	Gray	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	A	-	-
REC, 8P, BLK, BUSBAR 1X8, NICKEL, B	DT04-08PB-P021	Product Drawing 3D PDF	Housing for Female Terminals	8	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	9.09 mm	1.57 mm	Black	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 55 V	B	-	-
REC, 8P, BLK, BUSBAR 2X4, NICKEL, B Buy on te.com	DT04-08PB-P026	Product Drawing 3D PDF	Housing for Female Terminals	8	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	9.09 mm	1.57 mm	Black	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 56 V	B	-	-
REC, 4P, BLK, 600V, 1.28V, 4A DIODE	DT04-4P-RT01	Product Drawing 3D PDF	Housing for Male Terminals	4	Yes	-55 – 125 °C	2	No	Integrated in Housing	Wire-to-Wire	4.47 mm	1.59 mm	Black	Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
REC, 12P, GRY, BUSBAR 3X4, NICKEL, A Buy on te.com	DT04-12PA-P075	Product Drawing 3D PDF	Housing for Male Terminals	12	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	4.44 mm	1.59 mm	Gray	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	A	-	-
REC, 2P, BLK, 600V, 1.28V, 4A DIODE, NI	DT04-2P-RT01	Product Drawing 3D PDF	Housing for Male Terminals	2	Yes	-55 – 125 °C	1	No	Integrated in Housing	Wire-to-Wire	5.46 mm	1.59 mm	Black	Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
REC, 8P, GRY, BUSBAR 2X4, NICKEL, A Buy on te.com	DT04-08PA-P026	3D PDF	Housing for Female Terminals	8	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	9.09 mm	1.57 mm	Gray	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	A	-	-
REC, 12P, GRY, BUSBAR 1X12, GOLD, A Buy on te.com	DT04-12PA-P016	3D PDF	Housing for Male Terminals	12	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	4.44 mm	1.59 mm	Gray	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	A	-	-
REC, 12P, GRY, BUSBAR 4X3, NICKEL, A Buy on te.com	DT04-12PA-P030	3D PDF	Housing for Male Terminals	12	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	4.44 mm	1.59 mm	Gray	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	A	-	-
REC, 12P, BLK, BUSBAR 2X6, GOLD, B	DT04-12PB-P027	Product Drawing 3D PDF	Housing for Male Terminals	12	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	4.44 mm	1.59 mm	Black	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	B	-	-
PLG, 3P, GRY, 120 OHM RESISTOR Buy on te.com	DT06-3S-P006	Product Drawing 3D PDF	Housing for Female Terminals	3	Yes	-55 – 125 °C	2	No	Integrated in Housing	Component-to-Wire	8.66 mm	1.59 mm	Gray	Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
REC, 12P, BLK, BUSBAR 1X12, NICKEL, B Buy on te.com	DT04-12PB-P021	Product Drawing 3D PDF	Housing for Male Terminals	12	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	4.44 mm	1.59 mm	Black	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	B	-	-
REC, 12P, BLK, BUSBAR 4X3, GOLD, B Buy on te.com	DT04-12PB-P031	3D PDF	Housing for Male Terminals	12	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	4.44 mm	1.59 mm	Black	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	B	-	-
REC, 2P, BLK, 620 OHM RESISTOR, NI	DT04-2P-RT22	Product Drawing 3D PDF	Housing for Male Terminals	2	Yes	-55 – 125 °C	1	No	Integrated in Housing	Wire-to-Wire	5.46 mm	1.59 mm	Black	Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
REC, 2P, GRN, DIODE, NI	DT04-2P-RT06	Product Drawing 3D PDF	Housing for Male Terminals	2	Yes	-55 – 125 °C	1	No	Integrated in Housing	Wire-to-Wire	5.46 mm	1.59 mm	Green	Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
REC, 12P, GRY, BUSBAR 2X6, GOLD, A	DT04-12PA-P027	Product Drawing 3D PDF	Housing for Male Terminals	102	Yes	-55 – 125 °C	12	No	Integrated in Housing	Wire-to-Wire	9.12 mm	1.59 mm, 2.39 mm, 3.61 mm, 5.72 mm	Black	Wire & Cable	13 A	Power	Cable Mount (Free-Hanging)	125 °C	12 V, 24 V, 48 V	A	-	-
PLG, 3P, BLK, SEAL RET, PROT CAP 120 OHM Buy on te.com	DT06-3S-PE01	Product Drawing 3D PDF	Housing for Female Terminals	3	Yes	-55 – 125 °C	2	No	Integrated in Housing	Component-to-Wire	8.66 mm	1.59 mm	Black	Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
REC, 12P, GRY, BUSBAR 4X3, GOLD, A Buy on te.com	DT04-12PA-P031	3D PDF	Housing for Male Terminals	12	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	4.44 mm	1.59 mm	Gray	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	A	-	-
REC, 3P, GRY, 120 OHM RESISTOR Buy on te.com	DT04-3P-P006	Product Drawing 3D PDF	Housing for Male Terminals	3	Yes	-55 – 125 °C	2	No	Integrated in Housing	Wire-to-Wire	8.7 mm	1.59 mm	Gray	Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
REC, 12P, GRY, BUSBAR 1X12, NICKEL, A Buy on te.com	DT04-12PA-P021	3D PDF	Housing for Male Terminals	12	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	4.44 mm	1.59 mm	Gray	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	A	-	-
REC, 12P, GRY, BUSBAR 2X6, NICKEL, A Buy on te.com	DT04-12PA-P026	Product Drawing 3D PDF	Housing for Male Terminals	12	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	4.44 mm	1.59 mm	Gray	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	A	-	-
REC, 4P, GRY, 600V, 1.28V, 4A DIODE Buy on te.com	DT04-4P-RT03	Product Drawing 3D PDF	Housing for Male Terminals	4	Yes	-55 – 125 °C	2	No	Integrated in Housing	Wire-to-Wire	4.47 mm	1.59 mm	Gray	Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
REC, 6P, BLK, BUSBAR 1X6, NICKEL Buy on te.com	DT04-6P-EP13	Product Drawing 3D PDF	Housing for Male Terminals	6	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	3.81 mm	1.59 mm	Black	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
PLG, 3P, BLK, SEAL RET, 120 OHM RESISTOR Buy on te.com	DT06-3S-PP01	Product Drawing 3D PDF	Housing for Female Terminals	3	Yes	-55 – 125 °C	2	No	Integrated in Housing	Component-to-Wire	8.66 mm	1.59 mm	Black	Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
REC, 2P, BLK, BUSBAR, NI Buy on te.com	YDT04-2P-P06000000	Product Drawing 3D PDF	Housing for Male Terminals	2	Yes	-55 – 125 °C	1	No	Integrated in Housing	Bus Bar-to-Wire	5.46 mm	1.59 mm	Black	Bus Bar, Wire & Cable	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	-	-	-
2POS. DT. REC HSG. ASSY. SEALED	2286003-2	Product Drawing 3D PDF	Housing for Female Terminals	2	Yes	-55 – 125 °C	1	No	Integrated in Housing	Wire-to-Wire	4.5 mm	1.59 mm	Natural	Wire & Cable	13 A	Power	Cable Mount (Free-Hanging)	125 °C	12 V, 24 V, 42 V, 48 V	-	-	-
2POS. DT. REC HSG. ASSY. SEALED Buy on te.com	2286003-3	Product Drawing 3D PDF	Housing for Female Terminals	2	Yes	-55 – 125 °C	1	No	Integrated in Housing	Wire-to-Wire	4.5 mm	1.59 mm	Natural	Wire & Cable	13 A	Power	Cable Mount (Free-Hanging)	125 °C	12 V, 24 V, 42 V, 48 V	-	-	-
2POS. DT. REC HSG. ASSY. SEALED	2286003-4	Product Drawing 3D PDF	Housing for Female Terminals	2	Yes	-55 – 125 °C	1	No	Integrated in Housing	Wire-to-Wire	4.5 mm	1.59 mm	Natural	Wire & Cable	13 A	Power	Cable Mount (Free-Hanging)	125 °C	12 V, 24 V, 42 V, 48 V	-	-	-
DT04-08PA-P089, REC, 8P GRY,BUSBAR,3X2,A Buy on te.com	2298173-1	3D PDF	Receptacle	8	Yes	-55 – 125 °C	2	No	Integrated in Housing	Bus Bar-to-Wire	3.81 mm	1.59 mm	Gray	Bus Bar	13 A	Power	Bus Bar Mount	125 °C	12 V, 24 V, 48 V	A	-	-
DT04-2P-TR32-100K, REC,2P,BLK,SNAPCAP,AU Buy on te.com	1-2322907-1	Product Drawing 3D PDF	Housing for Female Terminals	2	Yes	-55 – 125 °C	1	No	Integrated in Housing	Wire-to-Wire	5.5 mm	1.5 mm	Black	Wire & Cable	13 A	Power	Cable Mount (Free-Hanging)	125 °C	12 V, 24 V, 48 V	-	-	-
DT04-2P-TR31-750, REC,2P,GRY,SNAPCAP,AU Buy on te.com	2-2322907-2	Product Drawing 3D PDF	Housing for Female Terminals	2	Yes	-55 – 125 °C	1	No	Integrated in Housing	Wire-to-Wire	5.5 mm	1.5 mm	Gray	Wire & Cable	13 A	Power	Cable Mount (Free-Hanging)	125 °C	12 V, 24 V, 48 V	-	-	-

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Mixed & Hybrid Connector No
Connector Shape Rectangular, Triangular
Connector & Housing Type Housing for Female Terminals, Housing for Male Terminals, Receptacle
Connector System Bus Bar-to-Wire, Component-to-Wire, Wire-to-Wire
Sealable No, Yes
Primary Locking Feature Integrated in Housing
Connector & Contact Terminates To Bus Bar, Wire & Cable

Configuration Features

Blank Cavity Position 0
Connector Seal Code E Seal, N Seal
Connector Modification (1) 12 Pin Buss, (1) 2 Pin Buss, (1) 3 Pin Buss & (1) 5 Pin Buss, (1) 4 Pin Buss, (1) 6 Pin Buss, (1) 8 Pin Buss, (2) 3 Pin Busses, (2) 4 Pin Busses, (2) 6 Pin Busses, (3) 4 Pin Busses, (4) 3 Pin Busses, Enhanced Seal Retention, Enhanced Seal Retention, Terminating Resistor, End Cap, J1939, J1939, Terminating Resistor, Molded-In Diode, Molded-In Diode (MUR460), Molded-In Diode (Vishay 1N5625GP), Molded-In Resistor, Terminating Resistor, Terminating Resistor, End Cap, J1939, Terminating Resistor, J1939, Two Molded-In Diodes (MUR460)
Number of Positions 2, 3, 4, 6, 8, 12, 102
Number of Rows 1, 2, 12

Electrical Characteristics

Operating Voltage (VDC) 42, 250
Operating Voltage (VAC) 250
Nominal Voltage Architecture (V) 12, 24, 42, 48, 55, 56, 58, 79

Body Features

Cable Exit Angle 180°
Primary Product Color Black, Gray, Green, Natural
Connector & Keying Code A, B

Contact Features

Contact Type Pin, Receptacle, Socket
Contact Size 16mm, Size 16, Size 20
Mating Pin Diameter (mm) 1.02, 1.5, 1.57, 1.59, 1.6, 2.39, 3.61, 5.72
Mating Pin Diameter (in) .04, .06, .062, .063, .094, .142, .225
Contact Current Rating (Max) (A) 7.5, 13

Mechanical Attachment

Mating Alignment With
Terminal Position Assurance No, Yes
Mating Alignment Type Keyed, Polarization
Strain Relief Add By Accessory, Without
Connector Mounting Type Bus Bar Mount, Cable Mount (Free-Hanging)

Housing Features

Housing Material PA 66 GF15, PA GF, PEI (Polyetherimide)
Centerline (Pitch) (mm) 3.81, 4.19, 4.44, 4.47, 4.5, 5.46, 5.5, 8.66, 8.7, 9.09, 9.12
Centerline (Pitch) (in) .15, .165, .175, .176, .215, .216, .341, .358, .359

Dimensions

Product Width (mm) 15.77, 16.54, 17.15, 18.71, 20.83, 21.13, 25.4, 27.43, 36.45, 40.56, 46.2
Product Width (in) .62, .651, .675, .737, .82, .832, 1, 1.08, 1.435, 1.597, 1.81
Compatible Insulation Diameter Range (mm) 1.35 – 3.05, 1.4 – 2.5
Compatible Insulation Diameter Range (in) .053 – .12, .055 – .1
Wire Size (AWG) 20 – 14
Connector Height (mm) 16.21, 17, 17.02, 17.05, 19.71, 22.25, 22.71, 23.88, 23.89, 24.16, 24.38, 24.71, 27.26, 31.6, 46.9
Connector Height (in) .638, .669, .67, .776, .873, .876, .94, .951, .96, .973, 1.073, 1.244, 1.84, 1.85
Row-to-Row Spacing (mm) 4.45, 9.12, 45.45
Row-to-Row Spacing (in) .175, .359
Wire Size (mm²) .52 – 1.3
Product Length (mm) 15, 17.1, 29.67, 31.19, 33.91, 36.4, 39.5, 42.67, 44.65, 46.18, 46.94, 47.19, 47.45, 51.89
Product Length (in) .6, .673, 1.168, 1.228, 1.335, 1.43, 1.555, 1.68, 1.758, 1.818, 1.848, 1.868, 2.043

Usage Conditions

Operating Temperature (Max) 125 °C [ 257 °F ]
Operating Temperature Range -55 – 125 °C [ -67 – 257 °F ]

Operation/Application

Circuit Application Power

Industry Standards

UL Flammability Rating 12mm Flame Test per Standard UL-94, 20mm Flame Test per Standard UL-94, Not Tested, UL 94V-0
IP Rating IP67, IP68, IP6K9K
Compatible With Agency/Standards Products SAE J2030

Packaging Features

Packaging Method Bag, Box, Package
Packaging Quantity 1, 250, 285, 300, 500, 650, 750, 950, 960, 1000

Other

Serviceable No, Yes
Connector Position Assurance Capable No

Reference Number

TE Internal Number CAT-J41-DDIC
