Single Pair Ethernet (SPE) Industrial Connectors for High-Speed Data in Harsh Environments

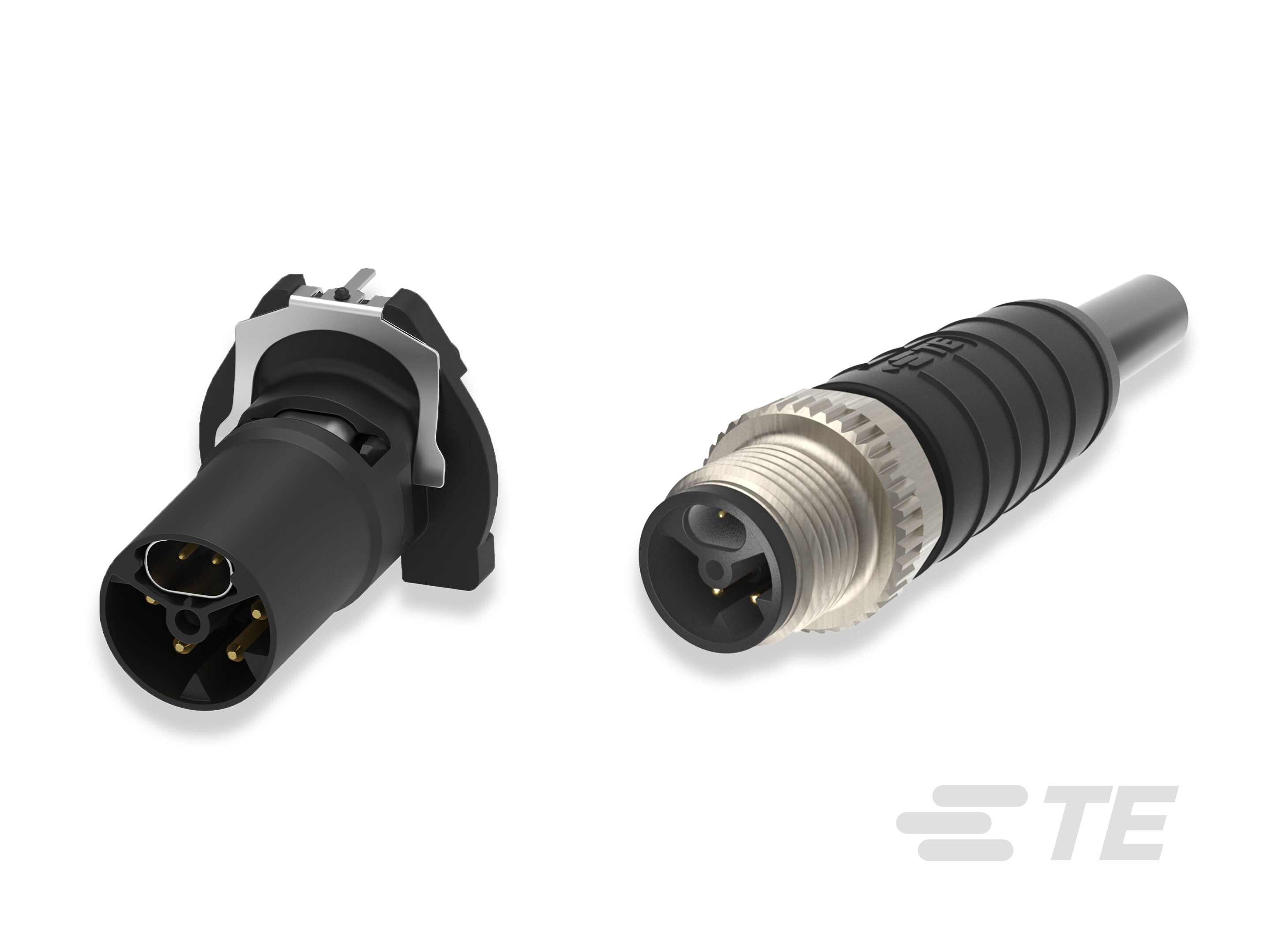

Single Pair Ethernet (SPE) Industrial Connectors for High-Speed Data in Harsh Environments-CAT-J37-SPE
The SPE-M12 Hybrid is an industrial connector for Single Pair Ethernet (SPE) that combines data and power transmission in one interface. It supports high-speed data (up to 1 Gbps) and power delivery (up to 1kW/ 2x 8A). Designed for harsh environments, it offers robust protection (IP67) and a secure locking mechanism. Fully compliant with IEC 63171-7, it ensures interoperability across devices and manufacturers. This interface supports trends as decentralization, miniaturization and digitalization in the industrial environment.
More Less
Connect with Us

Product Features

  • Cable Assembly Length (m): .5 | 1 – 1.05 | 1 | 1.45 – 1.55 | 1.5 | 1.9 – 2.05 | 1.9 – 2 | 2.92 – 3.08 | 3 – 3.05 | 5 – 5.05 | 5.9 – 6.08 | 6.92 – 7.08 | 7.05 | 10.05 | 14.85 – 15.15 | 15 | 15.15 – 14.85

  • Cable Assembly Length (ft): 1.6 | 3.2 – 3.4 | 3.2 | 4.7 – 5 | 4.9 | 6.2 – 6.5 | 6.2 – 6.7 | 9.58 – 10.1 | 9.84 – 10 | 16.4 – 16.5 | 19.3 – 19.9 | 22.7 – 23.2 | 23.1 | 32.9 | 48.5 – 49.7 | 49.2 | 49.7

  • M8/M12 Application Type : Industrial Ethernet

  • Industrial Protocols : Single Pair Ethernet (SPE)

  • Number of Positions : 6

  • Cable Assembly Type : M12 Pigtail | M12 to M12

Available from

LADD Inc
Overview
  1. SPE M12 hybrid connectors

The compact SPE M12 hybrid connectors support the transmission of high-speed data and unprecedented current levels over a single cable. This makes this connection technology excellent for robotics systems and drives, as well as for future IIoT applications in automation technology. In particular, the trend toward miniaturization is supported, as devices (eg. cobots, grippers, sensors and vision systems) can feature higher performance within the same M12 form factor and without increasing space requirements.

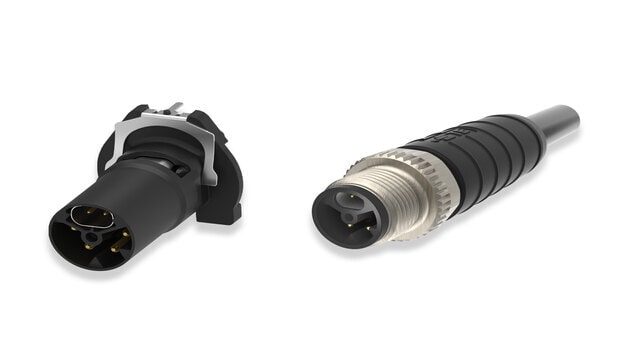

SPE M12 hybrid connectors
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Cable Assembly Type  M12 Pigtail | M12 to M12

  • Cable Assembly (End A)  M12 Plug

  • Cable Assembly (End B)  M12 Plug

Configuration Features

  • Number of Positions  6

Electrical Characteristics

  • Operating Voltage (VDC) 50

  • Operating Voltage (VAC) 63

Body Features

  • Conductor Material  Copper

  • Connector Color (End B)  Black

  • Jacket Material  PUR

  • Connector Color (End A)  Black

  • Cable Color  Black

Contact Features

  • Contact Current Rating (Max) (A) 8

Mechanical Attachment

  • Connector Orientation (End A)  Straight

  • Connector Orientation (End B)  Straight

Housing Features

  • Housing Material  6T PA GF 30 | PBT

Dimensions

  • Wire Size (AWG) 16

Usage Conditions

  • Operating Temperature Range (°C) -45 – 85 | -40 – 85

  • Operating Temperature Range (°F) -49 – 185 | -40 – 185

Operation/Application

  • M8/M12 Application Type  Industrial Ethernet

  • Shielded  Yes

Industry Standards

  • IP Rating  IP67

  • Industrial Protocols  Single Pair Ethernet (SPE)

Other

  • Cable Assembly Length (m) .5 | 1 – 1.05 | 1 | 1.45 – 1.55 | 1.5 | 1.9 – 2.05 | 1.9 – 2 | 2.92 – 3.08 | 3 – 3.05 | 5 – 5.05 | 5.9 – 6.08 | 6.92 – 7.08 | 7.05 | 10.05 | 14.85 – 15.15 | 15 | 15.15 – 14.85

  • Cable Assembly Length (ft) 1.6 | 3.2 – 3.4 | 3.2 | 4.7 – 5 | 4.9 | 6.2 – 6.5 | 6.2 – 6.7 | 9.58 – 10.1 | 9.84 – 10 | 16.4 – 16.5 | 19.3 – 19.9 | 22.7 – 23.2 | 23.1 | 32.9 | 48.5 – 49.7 | 49.2 | 49.7

  • Cable Assembly Configuration  Double Ended | Single Ended

Related Materials

Catalog

  • SPE-M12 HYBRID The SPE-M12 Hybrid is an industrial connector for Single Pair Ethernet (SPE) that combines data and power transmission in one interface. It supports highspeed data (up to 1 Gbps) and power delivery (16A to 2x8A). Designed for harsh environments, it offers robust protection (IP67), and secure locking mechanism. Fully compliant with IEC 63171-7, it ensures interoperability across devices and manufacturers. This interface supports trends as decentralization, miniaturization and digitalization in the industrial environment.
