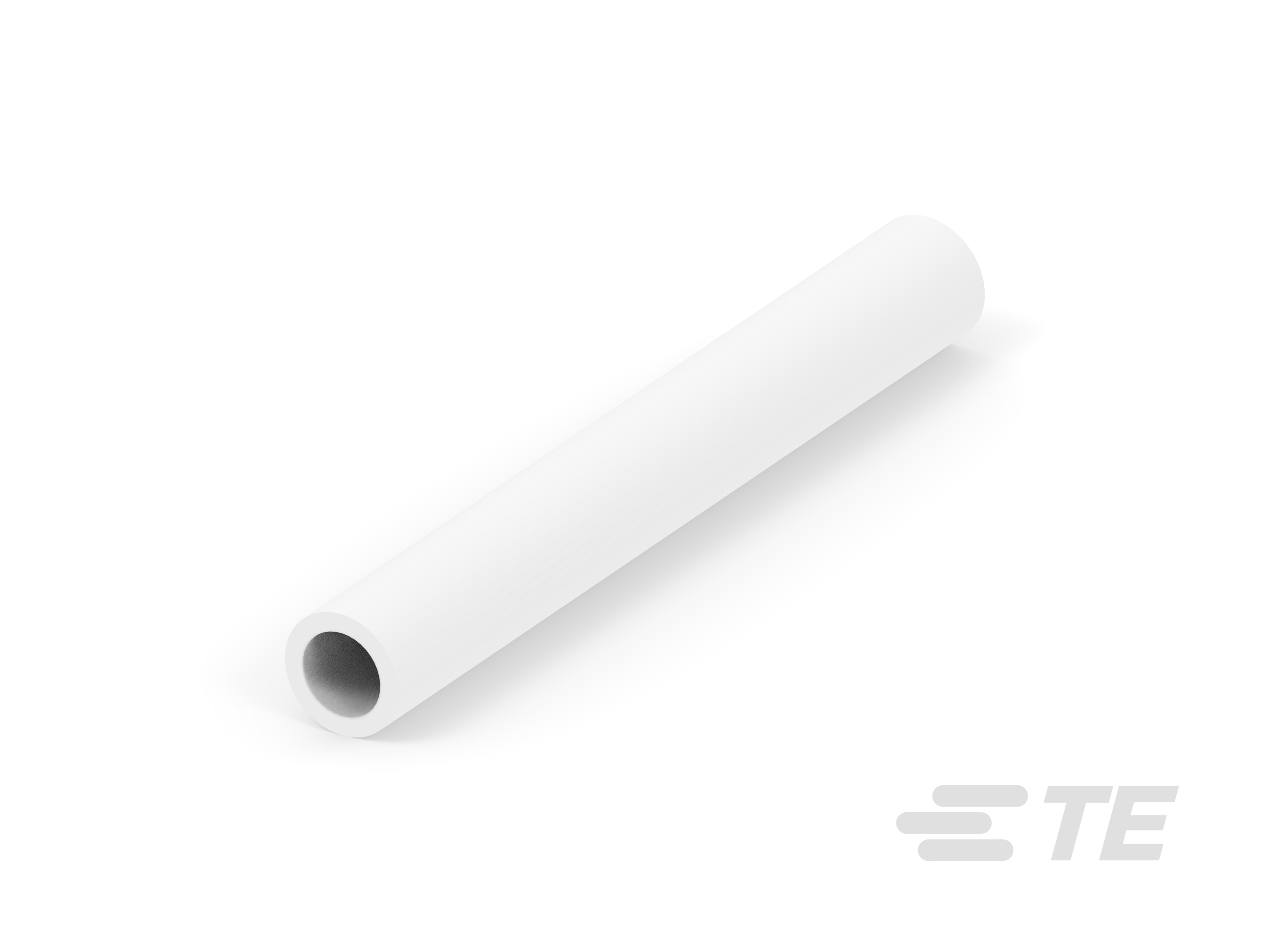

RT-220 Heat Shrink Tubing

RAYCHEM

TE's RT220 Single wall heat shrink tubing, made of Crosslinked Fluoropolymer that provides flexibility. RT-220 is resistant to abrasion, fluids, mechanical damage, and strain. Low outgassing product with shrink ratio of 2:1.

More Less

Product Features

Tubing Product Type : Heat Shrink Tubing
Primary Product Color : Black, White
Shrink Ratio : 2:1
Wall Type : Single Wall
Recovered Inside Diameter (Max) (mm): .79, 1.17, 1.6, 2.36, 3.18, 4.75, 6.35, 9.53, 12.7
Recovered Inside Diameter (Max) (in): .031, .046, .062, .093, .125, .187, .25, .375, .5

Available from

Product	TE Part #	Documents	Primary Product Color	Expanded Inside Diameter (Min)	Recovered Inside Diameter (Max)	Mechanical Resistance
RT-220-1/4-0-SP	NB30774001	Product Drawing	Black	6.35 mm	3.18 mm	Abrasion, Fluids, Mechanical Damage, Strain Relief
RT-220-1-9-SP	NB15884001	Product Drawing	White	25.4 mm	12.7 mm	Abrasion, Fluids, Mechanical Damage, Strain Relief
RT-220-3/16-9-SP	NB15894001	Product Drawing	White	4.75 mm	2.36 mm	Abrasion, Fluids, Mechanical Damage, Strain Relief
RT-220-3/4-9-SP	NB30794001	Product Drawing	White	19.05 mm	9.53 mm	Abrasion, Fluids, Mechanical Damage, Strain Relief
RT-220-1/16-9-SP	NB30824001	Product Drawing	White	1.6 mm	.79 mm	Abrasion, Fluids, Mechanical Damage, Strain Relief
RT-220-3/16-0-SP	NB34134001	Product Drawing	Black	4.75 mm	2.36 mm	Abrasion, Fluids, Mechanical Damage, Strain Relief
RT-220-1/2-9-SP	NB15854001	Product Drawing	White	12.7 mm	6.35 mm	Abrasion, Fluids, Mechanical Damage, Strain Relief
RT-220-3/8-9-SP	NB15914001	Product Drawing	White	9.53 mm	4.75 mm	Abrasion, Fluids, Mechanical Damage, Strain Relief
RT-220-1/4-9-SP	NB15864001	Product Drawing	White	6.35 mm	3.18 mm	Abrasion, Fluids, Mechanical Damage, Strain Relief
RT-220-1/8-0-SP	NB30804001	Product Drawing	Black	3.18 mm	1.6 mm	Abrasion, Fluids, Mechanical Damage, Strain Relief
RT-220-1/8-9-SP	NB15874001	Product Drawing	White	3.18 mm	1.6 mm	Abrasion, Fluids, Mechanical Damage, Strain Relief
RT-220-3/32-9-SP	NB15904001	Product Drawing	White	2.36 mm	1.17 mm	Abrasion, Fluids, Mechanical Damage, Strain Relief

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Tubing Product Type Heat Shrink Tubing
Wall Type Single Wall

Electrical Characteristics

Operating Voltage (Max) (kV) .6

Body Features

Fluid Type Aviation Fuel, Chemicals/Solvents, Hydraulic Fluid, Lubricating Oil, Trichloroethane, Water
Primary Product Color Black, White
Shrink Ratio 2:1
Primary Product Material Crosslinked Fluoropolymer
Flexibility Flexible

Dimensions

Recovered Wall Thickness (Nominal) (mm) .23, .28, .41, .46
Recovered Wall Thickness (Nominal) (in) .009, .011, .016, .018
Recovered Wall Thickness (Tolerance) (mm) .12, .18
Recovered Wall Thickness (Tolerance) (in) .005, .007
Recovered Inside Diameter (Max) (mm) .79, 1.17, 1.6, 2.36, 3.18, 4.75, 6.35, 9.53, 12.7
Recovered Inside Diameter (Max) (in) .031, .046, .062, .093, .125, .187, .25, .375, .5
Expanded Inside Diameter (Min) (mm) 1.6, 2.36, 3.18, 4.75, 6.35, 9.53, 12.7, 19.05, 25.4
Expanded Inside Diameter (Min) (in) .063, .093, .125, .187, .25, .375, .5, .75, 1

Usage Conditions

Resistance Properties Splash Protection
Shrink Temperature (Min) (°C) 110
Tubing Flammability Type Highly Flame-Retardant
Operating Temperature Range (°C) -55 – 150
Recovery Temperature (°C) 150

Operation/Application

Mechanical Resistance Abrasion, Fluids, Mechanical Damage, Strain Relief

Product Availability

Applicable Region Global

Packaging Features

Packaging Method Spool

Other

Meets Low Outgassing Requirements Yes
Product Source Czech Republic

Reference Number

TE Internal Number CAT-HST-RT220

Related Materials

Datasheets & Catalog Pages

Selecting_Correct_Tubing_1216 pdf English

RT-220 Heat Shrink Tubing

Product Features

Tubing Product Type : Heat Shrink Tubing

Primary Product Color : Black, White

Shrink Ratio : 2:1

Wall Type : Single Wall

Recovered Inside Diameter (Max) (mm): .79, 1.17, 1.6, 2.36, 3.18, 4.75, 6.35, 9.53, 12.7

Recovered Inside Diameter (Max) (in): .031, .046, .062, .093, .125, .187, .25, .375, .5

Product Type Features

Tubing Product Type Heat Shrink Tubing

Wall Type Single Wall

Electrical Characteristics

Operating Voltage (Max) (kV) .6

Body Features

Fluid Type Aviation Fuel, Chemicals/Solvents, Hydraulic Fluid, Lubricating Oil, Trichloroethane, Water

Primary Product Color Black, White

Shrink Ratio 2:1

Primary Product Material Crosslinked Fluoropolymer

Flexibility Flexible

Dimensions

Recovered Wall Thickness (Nominal) (mm) .23, .28, .41, .46

Recovered Wall Thickness (Nominal) (in) .009, .011, .016, .018

Recovered Wall Thickness (Tolerance) (mm) .12, .18

Recovered Wall Thickness (Tolerance) (in) .005, .007

Recovered Inside Diameter (Max) (mm) .79, 1.17, 1.6, 2.36, 3.18, 4.75, 6.35, 9.53, 12.7

Recovered Inside Diameter (Max) (in) .031, .046, .062, .093, .125, .187, .25, .375, .5

Expanded Inside Diameter (Min) (mm) 1.6, 2.36, 3.18, 4.75, 6.35, 9.53, 12.7, 19.05, 25.4

Expanded Inside Diameter (Min) (in) .063, .093, .125, .187, .25, .375, .5, .75, 1

Usage Conditions

Resistance Properties Splash Protection

Shrink Temperature (Min) (°C) 110

Tubing Flammability Type Highly Flame-Retardant

Operating Temperature Range (°C) -55 – 150

Recovery Temperature (°C) 150

Operation/Application

Mechanical Resistance Abrasion, Fluids, Mechanical Damage, Strain Relief

Product Availability

Applicable Region Global

Packaging Features

Packaging Method Spool

Other

Meets Low Outgassing Requirements Yes

Product Source Czech Republic

Reference Number

TE Internal Number CAT-HST-RT220
