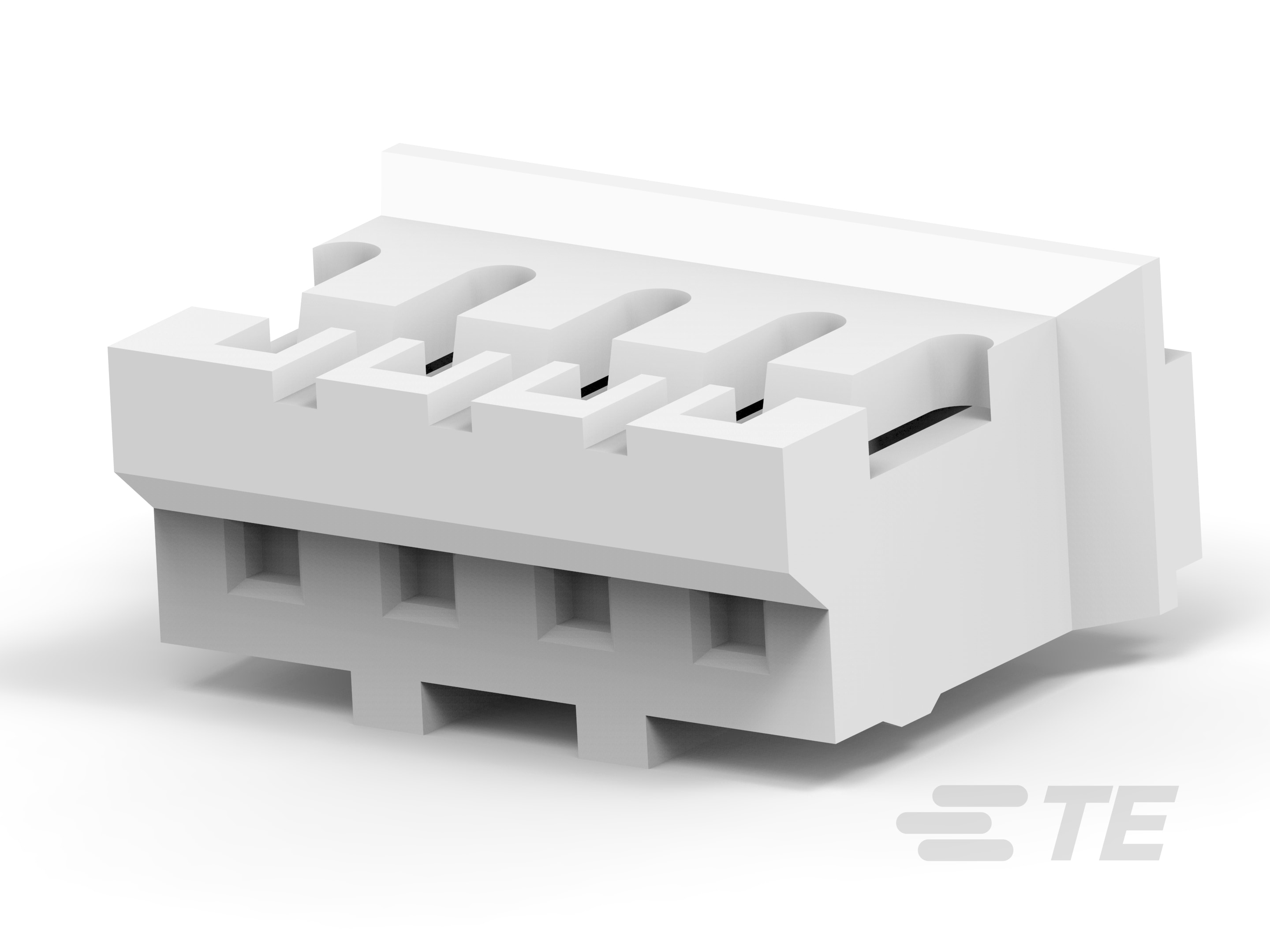

AMP HPI 2.0 mm Receptacle Housings

AMP HPI 2.0 mm Receptacle Housings-CAT-H857-H817220
High Performance Interconnect 2.0mm Housings are the female receptacle connector of the 2.0mm High Performance Interconnect product family. They are available in single row with 2 to 16 positions and dual row with 6 to 32 positions, and mate with a male header. High Performance Interconnects can be used across several industries including Business & Retail Equipment, Industrial, Consumer Devices and Medical. Common applications for High Performance Interconnects are copiers, printers, appliances, industrial controls, laptops, game consoles and medical monitors.
More Less
Connect with Us

Product Features

  • Connector Product Type : Housing

  • Connector & Housing Type : Receptacle

  • Mating Retention Type : Detent | Latch

  • Connector & Housing Type : Receptacle

  • Connector System : Wire-to-Board | Wire-to-Wire

Available from

LADD Inc
Overview

AMP HPI 2.0MM Receptacle Housings

  • Position count: 2 to 15 for single row and 6-32 for dual row
  • Available in single or dual row
  • Single row capable of accomodating 24-30
  • AWG wire and dual row capable of accomodating 22-28 AWG wire

Select Applications

  • Business equipment
  • Industrial machines
  • Wire-to-board applications
  • Plasma display panels
  • LCD monitors
  • Small electronics equipment
  • Anywhere signals or power is routed
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Connector Product Type  Housing

  • Connector & Housing Type  Receptacle

  • Connector & Housing Type  Receptacle

  • Connector System  Wire-to-Board | Wire-to-Wire

  • Sealable  No

  • Connector & Contact Terminates To  Wire & Cable

Configuration Features

  • Number of Positions  2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15 | 16 | 18 | 20 | 22 | 24 | 26 | 28 | 30 | 32

  • Number of Rows  1 | 2

  • Number of Rows  1 | 2

Electrical Characteristics

  • Insulation Resistance (MΩ) 1000

  • Dielectric Withstanding Voltage (Max) (VAC) 1000

  • Termination Resistance (mΩ) 5

  • Operating Voltage (VAC) 250

  • Operating Voltage (VDC) 100 | 250

Body Features

  • Primary Product Color  Black | Blue | Natural | Red | White | Yellow

  • Primary Product Color  Black | Blue | Natural | Red | White | Yellow

Contact Features

  • Contact Base Material  Copper Alloy

  • Contact Type  Socket

  • Contact Current Rating (Max) (A) 3

Termination Features

  • Termination Method to Wire & Cable  Crimp

  • Termination Method to Wire & Cable  Crimp

Mechanical Attachment

  • Panel Mount Feature  Without

  • Strain Relief  Without

  • Mating Retention Type  Detent | Latch

  • Mating Retention  With

  • Mating Retention  With

  • Connector Mounting Type  Cable Mount (Free-Hanging)

Housing Features

  • Housing Entry Configuration  Both Ends Closed

  • Centerline (Pitch)  2 mm [ .079 in ]

  • Housing Material  Thermoplastic

Dimensions

  • Compatible Insulation Diameter Range  .9 – 1.5 mm [ .035 – .059 in ]

  • Connector Length (mm) 5.8 | 6.8 | 7.8 | 8 | 8.8 | 9.8 | 10 | 10.8 | 11.8 | 12 | 12.8 | 13.8 | 14 | 14.8 | 15.8 | 16 | 16.8 | 17.8 | 18 | 18.8 | 19.8 | 20 | 20.8 | 21.9 | 22 | 22.8 | 23.9 | 24 | 24.8 | 25.9 | 26 | 26.8 | 27.9 | 28 | 28.8 | 29.9 | 30 | 31.9 | 32 | 33.9 | 34

  • Connector Length (in) .228 | .268 | .307 | .314 | .346 | .386 | .393 | .425 | .465 | .472 | .504 | .543 | .551 | .583 | .622 | .63 | .661 | .701 | .709 | .74 | .78 | .787 | .819 | .862 | .866 | .898 | .941 | .945 | .976 | 1.02 | 1.024 | 1.055 | 1.098 | 1.102 | 1.134 | 1.177 | 1.181 | 1.255 | 1.26 | 1.334 | 1.339

  • Connector Width (mm) 6.55 | 6.9 | 7.4 | 9.4

  • Connector Width (in) .255 | .272 | .291 | .37

  • Connector Height (mm) 4.5 | 5.1 | 6.55 | 9.4

  • Connector Height (in) .177 | .2 | .258 | .37

  • Row-to-Row Spacing  2 mm [ .079 in ]

  • Row-to-Row Spacing  2 mm [ .079 in ]

  • Wire Size (AWG) 28 – 22 | 30 – 24

  • Wire Size (mm²) .05 – .22 | .05 – .02 | .081 – .326

Usage Conditions

  • Operating Temperature Range  -25 – 85 °C [ -13 – 185 °F ]

Operation/Application

  • Circuit Application  Power & Signal | Signal

Industry Standards

  • UL Flammability Rating  UL 94V-0

  • Glow Wire Rating  Standard Part - Not Glow Wire

Packaging Features

  • Packaging Quantity  600 | 1000 | 2000

  • Packaging Method  Bag | Bag/Carton

Reference Number

  • TE Internal Number CAT-H857-H817220
