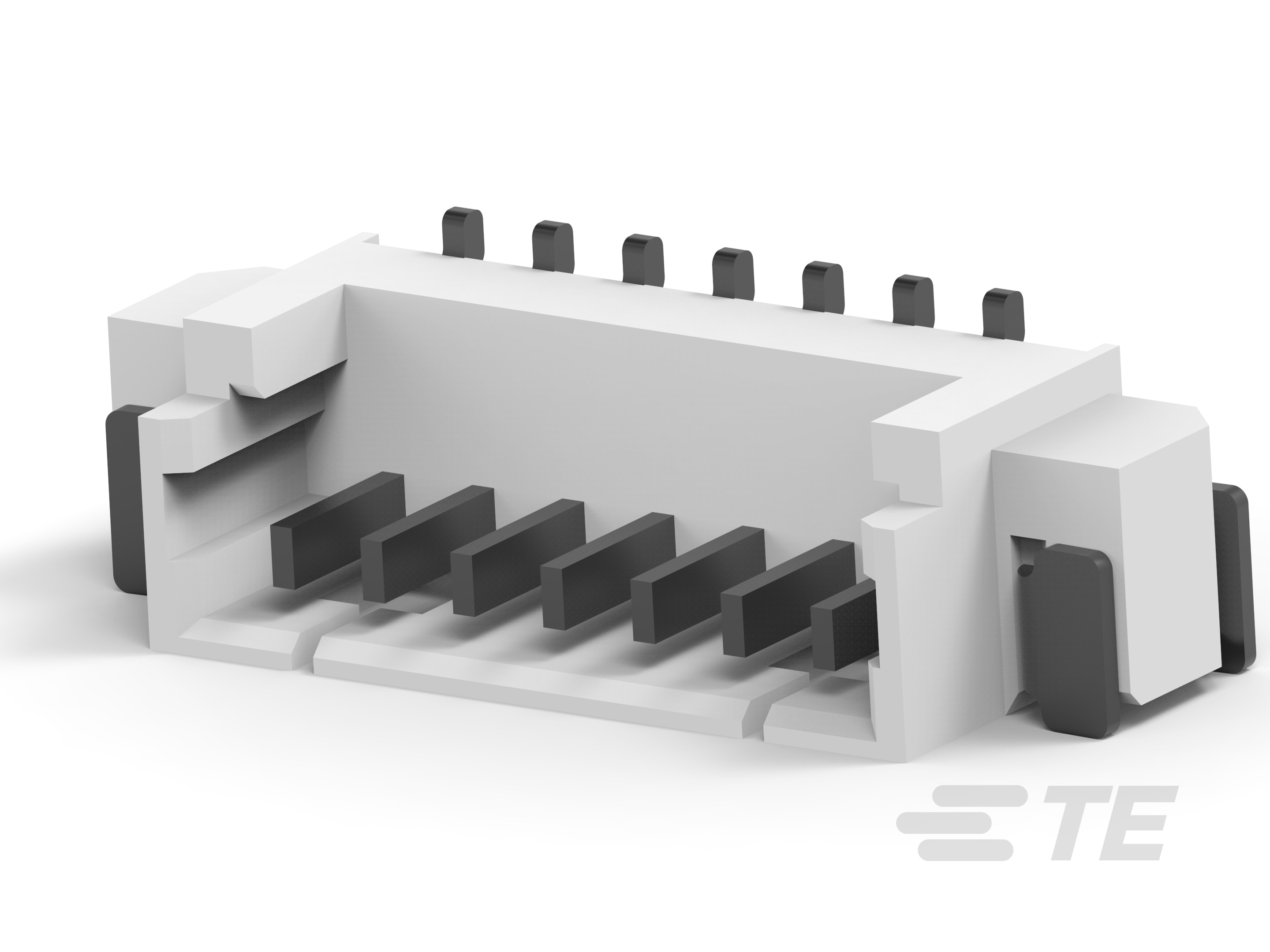

AMP HPI 1.25 mm Headers

AMP HPI 1.25 mm Headers-CAT-H857-H342125
High Performance Interconnect 1.25mm Headers are the male header in the 1.25mm High Performance Interconnect product family. They are available with 2 to 15 positions, a vertical or right angle orientation, SMT or DIP mount style and mate with a female receptacle housing. High Performance Interconnects can be used across several industries including Business & Retail Equipment, Industrial, Consumer Devices and Medical. Common applications for High Performance Interconnects are copiers, printers, appliances, industrial controls, laptops, game consoles and medical monitors.
More Less

Product Features

  • PCB Connector Type : PCB Mount Header

  • PCB Mount Orientation : Right Angle | Vertical

  • Connector System : Wire-to-Board

  • Number of Positions : 2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15

  • Number of Rows : 1

Available from

LADD Inc

Build and price the product now

Overview

AMP HPI 1.25MM Headers

  • Position count: 2 to 15
  • Available in single row
  • Mounting style: SMT or DIP
  • Available with vertical or right angle orientation

Select Applications

  • Business equipment
  • Industrial machines
  • Wire-to-board applications
  • Plasma display panels
  • LCD monitors
  • Small electronics equipment
  • Anywhere signals or power is routed
FAQ
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • PCB Connector Type  PCB Mount Header

  • Connector System  Wire-to-Board

  • Header Type  Fully Shrouded | Partially Shrouded

  • Sealable  No

  • Connector & Contact Terminates To  Printed Circuit Board

Configuration Features

  • Connector Contact Load Condition  Fully Loaded

  • PCB Mount Orientation  Right Angle | Vertical

  • Number of Positions  2 | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 | 11 | 12 | 13 | 14 | 15

  • Number of Rows  1

Electrical Characteristics

  • Operating Voltage (VDC) 100 | 125

  • Operating Voltage (VAC) 100 | 125

Body Features

  • Primary Product Color  Natural

Contact Features

  • Contact Underplating Material  Nickel

  • Mating Tab Width (mm) .74 | .76

  • Contact Layout  Inline

  • Mating Tab Width (mm) .74 | .76

  • Mating Tab Width (in) .029 | .03

  • PCB Contact Termination Area Plating Material Thickness (µm) 2.54 | 3.08

  • PCB Contact Termination Area Plating Material Thickness (µin) 100 | 120

  • Contact Mating Area Plating Material Finish  Matte

  • PCB Contact Termination Area Plating Material Finish  Matte

  • Mating Tab Thickness  .3 mm [ .012 in ]

  • Contact Base Material  Phosphor Bronze

  • Contact Mating Area Plating Material Thickness (µm) .762 | 1.27 | 2.54 | 3.048

  • Contact Mating Area Plating Material Thickness (µin) 30 | 50 | 100 | 120

  • PCB Contact Termination Area Plating Material  Tin

  • Contact Mating Area Plating Material  Nickel (Ni) | Tin (Sn)

  • Contact Type  Pin

  • Contact Current Rating (Max) (A) .8 | 1 | 3

Termination Features

  • Rectangular Termination Post & Tail Width  .35 mm [ .014 in ]

  • Rectangular Termination Post & Tail Thickness  .3 mm [ .012 in ]

  • Terminations per Post (Max)  3

  • Termination Post & Tail Length (mm) 1.7 | 2.3 | 3.7

  • Termination Post & Tail Length (in) .067 | .091 | .146

  • Termination Method to PCB  Surface Mount | Through Hole - Solder

Mechanical Attachment

  • PCB Mount Retention Type  Solder Peg

  • Mating Retention  Without

  • Mating Alignment Type  Polarization

  • PCB Mount Retention  With | Without

  • PCB Mount Alignment  With | Without

  • Connector Mounting Type  Board Mount

  • Mating Alignment  With

Housing Features

  • Housing Material  High Temperature Thermoplastic | LCP GF30 | PA 9T GF | Thermoplastic

  • Centerline (Pitch)  1.25 mm [ .049 in ]

Dimensions

  • Connector Length (mm) 4.2 | 5.5 | 6.75 | 7.79 | 8 | 9.04 | 9.25 | 10.29 | 10.5 | 11.54 | 11.75 | 12.79 | 13 | 14.04 | 14.25 | 15.29 | 15.5 | 16.54 | 16.75 | 17.79 | 18 | 19.04 | 19.25 | 20.29 | 20.5 | 20.59 | 21.54 | 22.79 | 24.04

  • Connector Length (in) .165 | .216 | .266 | .307 | .314 | .355 | .364 | .405 | .413 | .454 | .463 | .503 | .511 | .553 | .561 | .602 | .61 | .651 | .659 | .7 | .709 | .749 | .758 | .799 | .807 | .811 | .848 | .897 | .946

  • Connector Width (mm) 3.2 | 4.25 | 4.7

  • Connector Width (in) .126 | .167 | .185

  • Connector Height (mm) 3.2 | 3.45 | 4.7 | 4.75

  • Connector Height (in) .126 | .136 | .185 | .187

Operation/Application

  • Circuit Application  Signal

Industry Standards

  • UL Flammability Rating  UL 94V-0

Packaging Features

  • Packaging Quantity  30 | 32 | 34 | 36 | 39 | 43 | 47 | 52 | 58 | 66 | 76 | 90 | 110 | 141 | 1000

  • Packaging Method  Bag | Box | Reel | Tube

Reference Number

  • TE Internal Number CAT-H857-H342125
