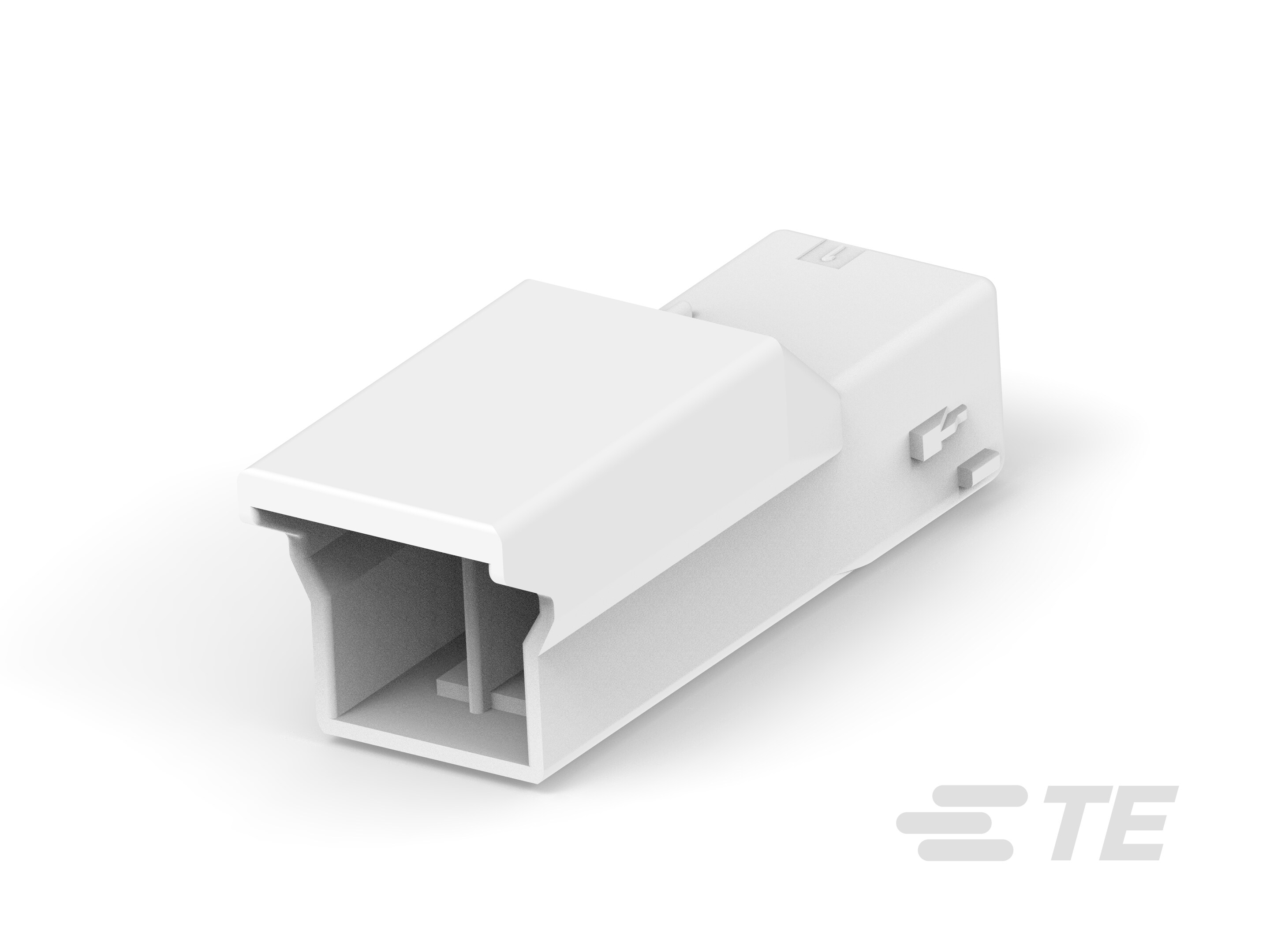

Glow Wire GRACE INERTIA Cap

Please review product documents or contact us for the latest agency approval information.

• Compatible With Discrete Wire Type  Stranded

• Connector Product Type  Housing

• Connector & Housing Type  Cap

• Connector System  Wire-to-Wire

• Sealable  No

• Connector & Contact Terminates To  Wire & Cable

• Number of Positions  2

• Number of Rows  1

• Number of Power Positions  2

• Number of Signal Positions  2 | 3

• Insulation Resistance (MΩ) 1000

• Operating Voltage (VAC) 300

• Operating Voltage (VDC) 300

• Primary Product Color  Black | Blue | Natural | Red | Yellow

• Connector & Keying Code  A | C | D

• Contact Layout  Inline

• Contact Base Material  Copper Alloy

• Contact Mating Area Plating Material  Tin (Sn)

• Contact Retention Within Housing  With | Without

• Contact Type  Tab

• Contact Current Rating (Max) (A) 7

• Wire Contact Termination Area Plating Material  Tin

• Contact Mating Area Plating Material Thickness  .8 µm [ 31.5 µin ]

• Termination Method to Wire & Cable  Crimp

• Panel Mount Feature  Without

• Strain Relief  Without

• Mating Alignment  With

• Mating Alignment Type  Keyed

• Mating Retention  With

• Mating Retention Type  Inertia Locking | Latch | Locking Latch

• Connector Mounting Type  Cable Mount (Free-Hanging)

• Centerline (Pitch) (mm) 3.5

• Centerline (Pitch) (in) .137 | .138

• Housing Material  PA 66

• Connector Length  9.05 mm [ .356 in ]

• Connector Width  26.4 mm [ 1.039 in ]

• Connector Height  9.3 mm [ .366 in ]

• Wire Size (AWG) 26 – 18

• Wire Size (mm²) .13 – .9

• Wire Size (CMA) 256.56 – 1776.17

• Operating Temperature Range  -30 – 105 °C [ -22 – 221 °F ]

• Circuit Application  Power & Signal

• UL Rating  Recognized

• Compatible With Agency/Standards Products  CSA | UL

• UL Flammability Rating  UL 94V-0

• Glow Wire Rating  GWT 750°C (Without Flame)

• Packaging Quantity  400

• Packaging Method  Bag
