THIN MINIATURE LOAD CELL

THIN MINIATURE LOAD CELL-CAT-FLS0021
  • MEAS
|
  • MEAS XFL212R

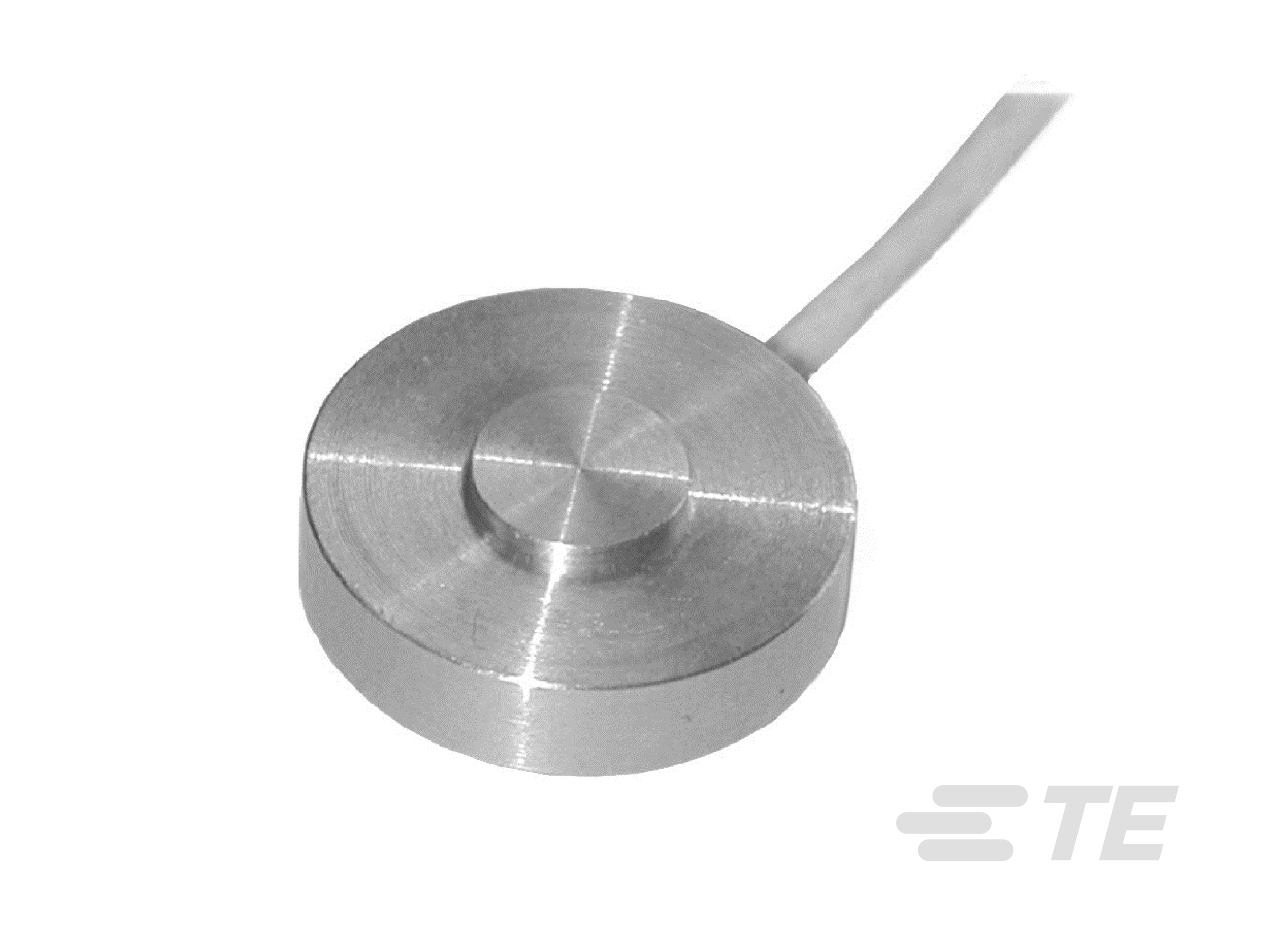

The XFL212R series is an extraordinarily thin miniature load cell with a temperature compensation module integrated into the output cable.
More Less
Connect with Us

Product Features

  • Force Sensor Type : Miniature Load Cells

  • Force Direction : Compression

  • Full Scale Range (Newton): 0 – 200 | 0 – 50 | 0 – 10 | 0 – 20 | 0 – 100 | 0 – 500 | 0 – 5

  • Full Scale Range (lbf): 0 – 22.5 | 0 – 11.2 | 0 – 45 | 0 – 112.4 | 0 – 1.12 | 0 – 2.25 | 0 – 4.5

  • Operating Temperature Range : -40 – 120 °C [ -40 – 248 °F ]

Available from

LADD Inc
Overview

This design allows Measurement Specialties, Inc. to manufacture extremely small sensors without sacrificing thermal zero and sensitivity performance. The XFL212R measures strain during compression in static and dynamic applications. Unlike sensors with flat force application surfaces, the XFL212R incorporates a spherical load button, which assures more precise loading and in return more accurate measurements.
The sensing element is fitted with a fully temperature compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gages. The use of silicon strain gages optimizes its performance at low ranges and frequencies. The sensor is available in aluminum alloy or stainless steel, depending on the full scale range and can withstand considerable overloads.

BENEFITS

  • 0-5 to 0-500N [0-1 to 100 lbf]
  • Compression
  • Extremely Flat 3,5 mm [0.14”]
  • Diameter Only 12 mm [0.49”]
  • Integrated Spherical Load Button
  • For Static and Dynamic Applications
  • Small size
  • High Stiffness
  • Other designs available on request
Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Force Sensor Type  Miniature Load Cells

Electrical Characteristics

  • Full Scale Range (Newton) 0 – 200 | 0 – 50 | 0 – 10 | 0 – 20 | 0 – 100 | 0 – 500 | 0 – 5

  • Full Scale Range (lbf) 0 – 22.5 | 0 – 11.2 | 0 – 45 | 0 – 112.4 | 0 – 1.12 | 0 – 2.25 | 0 – 4.5

  • Supply Voltage Range (VDC) 10

Usage Conditions

  • Operating Temperature Range  -40 – 120 °C [ -40 – 248 °F ]

  • Accuracy (% of FS) ±1

Operation/Application

  • Output Signal Type  ±100 mV

Industry Standards

  • IP Rating  IP50

Other

  • Force Direction  Compression

  • Zero Shift in CTR (%FS/°C) ±2/50

  • Sensitivity Shift (%FS/°C) ±2/50

Reference Number

  • TE Internal Number CAT-FLS0021
