MINIATURE LIGHTWEIGHT LOAD CELL TO 200N

MINIATURE LIGHTWEIGHT LOAD CELL TO 200N-CAT-FLS0020
  • MEAS
|
  • MEAS XFC205R

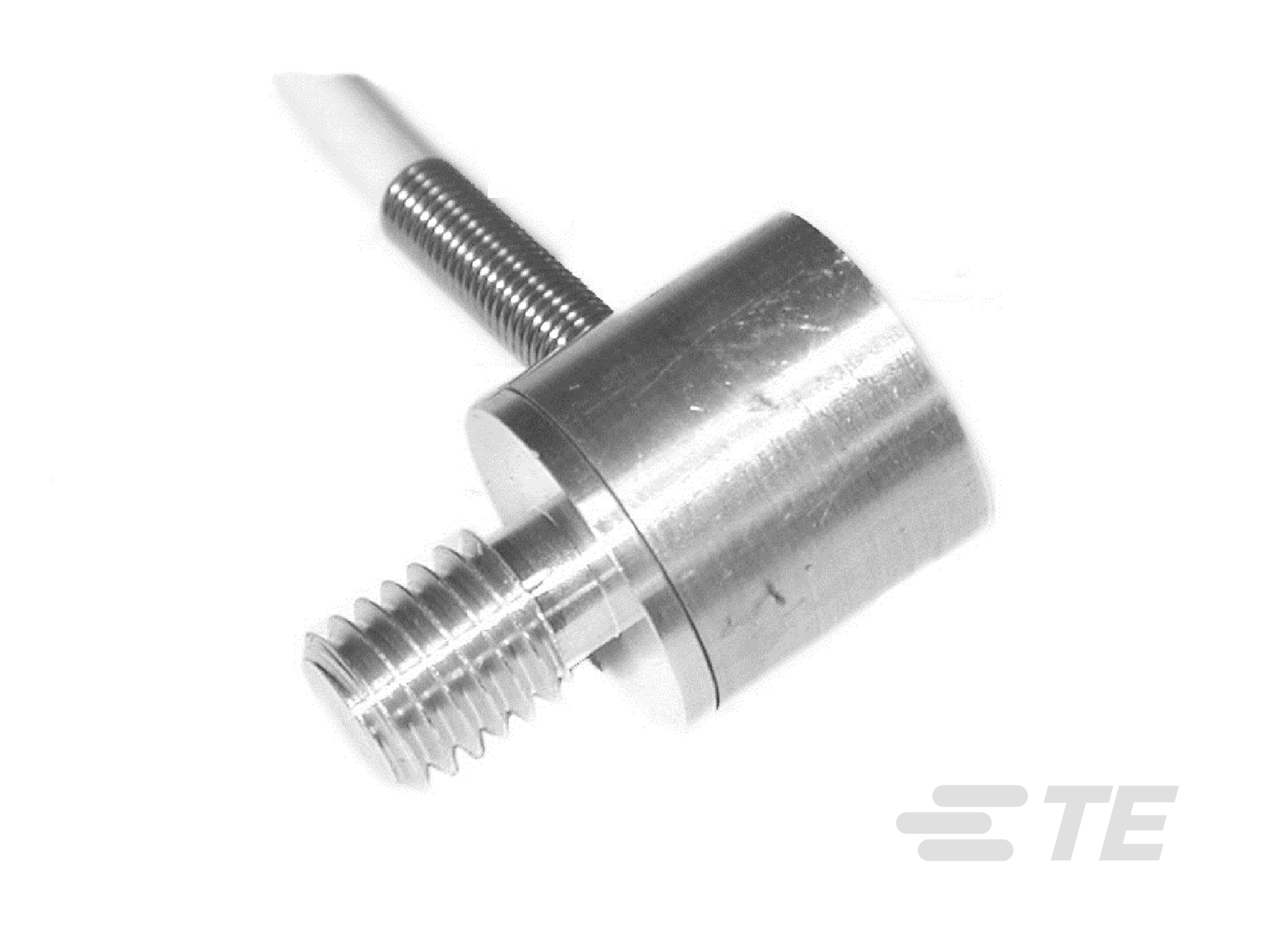

The miniature size and lightweight of the XFC205R facilitates testing where these conditions are necessary.
More Less
Connect with Us

Product Features

  • Force Sensor Type : Miniature Load Cells

  • Force Direction : Compression

  • Full Scale Range (Newton): 0 – 200 | 0 – 10 | 0 – 2 | 0 – 50 | 0 – 20 | 0 – 100 | 0 – 5

  • Full Scale Range (lbf): 0 – 22.5 | 0 – 2.248 | 0 – 44.96 | 0 – 22.48 | 0 – .45 | 0 – 11.24 | 0 – 4.496

  • Operating Temperature Range (°C): -40 – 120

  • Operating Temperature Range (°F): -40 – 248 | -40 – 250

Available from

LADD Inc
Overview

Unlike sensors with flat force application surfaces, the XFC205R incorporates a spherical load button resulting in more precise measurements.  Its high stiffness, for the size and measurement ranges, allows measurements in dynamic applications. A strain relief spring strengthens the cable output. The sensing element is fitted with a fully temperature compensated Wheatstone bridge equipped with high stability micro-machined silicon strain gages. With a threaded M5 male base, the XFC205R is easily installed in industrial or OEM applications.
To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.
On request, Instruction documents can be provided to ease the selection and use of our sensors and provide helpful tips.

BENEFITS

  • Ranges from 0-2 to 0-200N[0-0.4 to 0-40 lbf]
  • Important Overload Capacity
  • Linearity < 0.5% FS
  • Easy Installation with Threaded M5 Male Base
  • Integrated Spherical Load Button
  • High IP rating on request
  • Other thread and design on request



Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

  • Force Sensor Type  Miniature Load Cells

Electrical Characteristics

  • Full Scale Range (Newton) 0 – 200 | 0 – 10 | 0 – 2 | 0 – 50 | 0 – 20 | 0 – 100 | 0 – 5

  • Full Scale Range (lbf) 0 – 22.5 | 0 – 2.248 | 0 – 44.96 | 0 – 22.48 | 0 – .45 | 0 – 11.24 | 0 – 4.496

  • Supply Voltage Range (VDC) 10

Usage Conditions

  • Operating Temperature Range (°C) -40 – 120

  • Operating Temperature Range (°F) -40 – 248 | -40 – 250

  • Accuracy (% of FS) ±.5

Operation/Application

  • Output Signal Type  ±100 mV | 120mV | 150 mV

Industry Standards

  • IP Rating  IP50

Other

  • Force Direction  Compression

  • Zero Shift in CTR (%FS/°C) ±2/50

  • Sensitivity Shift (%FS/°C) ±2/50

Reference Number

  • TE Internal Number CAT-FLS0020
