Multi-Axis Load Cell

MULTI-AXIAL LOAD CELL FOR 1 TO 50 KLB-CAT-FLS0017

MEAS

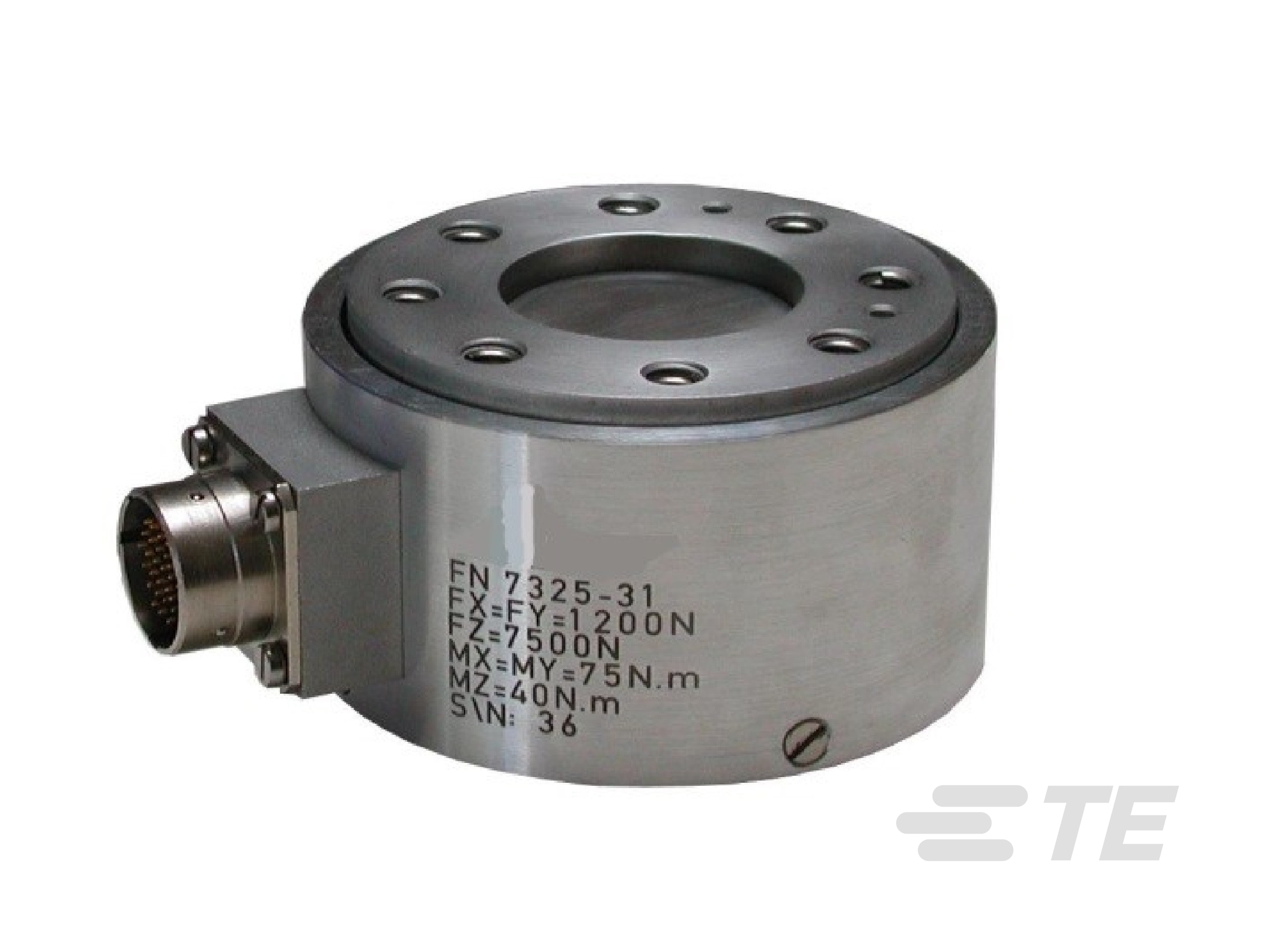

MEAS FN7325

The multiaxial FN7325 measures force from 0-5 kN to 0-250 kN along three axes as well as the corresponding torque from 0-200 Nm to 0-7000 Nm.

More Less

Documents |

Connect with Us

Product Features

Force Sensor Type : Multiaxial Load Cells
Force Direction : Compression | Multiaxial | Tension
Full Scale Range (Newton): 0 – 300 | 0 – 40000 | 0 – 100000 | 0 – 50000 | 0 – 2500 | 0 – 1500 | 0 – 600 | 0 – 200000 | 0 – 250000 | 0 – 15000 | 0 – 2800 | 0 – 200 | 0 – 30000 | 0 – 5000 | 0 – 7000 | 0 – 60000 | 0 – 20000 | 0 – 500000 | 5000 – 15000
Full Scale Range (lbf): 0 – 440 | 0 – 145 | 0 – 20000 | 0 – 3000 | 0 – 10000 | 0 – 1000 | 0 – 12000 | 0 – 5160 | 0 – 50000 | 0 – 2065 | 0 – 6000 | 1000 – 3000
Operating Temperature Range : -20 – 80 °C [ -4 – 176 °F ]

Available from

Product	TE Part #	Documents	Force Direction	Full Scale Range	Full Scale Range	IP Rating	Supply Voltage Range	Output Signal Details	Zero Shift in CTR	Sensitivity Shift	EU RoHS Compliance	EU ELV Compliance
FN7325-63-M8-XYZ	10200673-00		Multiaxial	0 – 15000 Newton, 0 – 30000 Newton	-	IP50	5 VDC	±10 mV/V	±2/50 %FS/°C	±2/50 %FS/°C	-	-
FN7325-64-M12-6V	10205194-00		Multiaxial	0 – 100000 Newton, 0 – 60000 Newton	-	-	IP50	10 VDC	±10 mV/V	±2/50 %FS/°C	±2/50 %FS/°C	-	-
FN7325-65-M6-XYZ	10209596-00		Multiaxial	0 – 5000 Newton, 0 – 2500 Newton	-	-	IP50	10 VDC	±10 mV/V	±2/50 %FS/°C	±2/50 %FS/°C	-	-
FN7325-66-M16-1V	10213147-00		Multiaxial	0 – 250000 Newton	-	-	IP65	-15 – 15 VDC	±5 V	±1/50 %FS/°C	±2/50 %FS/°C	-	-
FN7325-M16-XYZ	10215395-00		Multiaxial	0 – 250000 Newton, 0 – 100000 Newton	0 – 20000 lbf, 0 – 50000 lbf	IP50	10 VDC	±10 mV/V	±2/50 %FS/°C	±2/50 %FS/°C	-	-
FN7325-67-M6-5V	10215938-00		Multiaxial	0 – 5000 Newton, 0 – 1500 Newton	-	-	IP50	10 VDC	±10 mV/V	±1/50 %FS/°C	±2/50 %FS/°C	-	-
FN7325-M16-XYZLMN	10217485-00		Multiaxial	0 – 7000 Newton, 0 – 250000 Newton, 0 – 100000 Newton	0 – 50000 lbf, 0 – 20000 lbf, 0 – 5160 lbf	IP50	10 VDC	±10 mV/V	±2/50 %FS/°C	±2/50 %FS/°C	-	-
FN7325-68-M6-XYN	10218289-00		Multiaxial	0 – 300 Newton	-	-	IP50	10 – 30 VDC	±2 V	±2/50 %FS/°C	±2/50 %FS/°C	-	-
FN7325-69-M10-6V	10219133-00		Multiaxial	0 – 50000 Newton, 0 – 30000 Newton	-	-	IP50	10 VDC	±10 mV/V	±2/50 %FS/°C	±2/50 %FS/°C	-	-
FN7325-M6-A1-XYZ	20007674-00		Multiaxial	0 – 5000 Newton, 0 – 15000 Newton	0 – 1000 lbf, 0 – 3000 lbf	IP50	10 – 30 VDC	±2 V	±2/50 %FS/°C	±2/50 %FS/°C	-	-
FN7325-M12-A1-XYZLMN	20020404-00		Multiaxial	0 – 2800 Newton, 0 – 100000 Newton, 0 – 60000 Newton	0 – 20000 lbf, 0 – 12000 lbf, 0 – 2065 lbf	IP50	10 – 30 VDC	±2 V	±2/50 %FS/°C	±2/50 %FS/°C	-	-
FN7325-30-M20-XYZ	20022224-00	Product Drawing	Multiaxial	0 – 500000 Newton, 0 – 200000 Newton	-	-	IP50	10 VDC	±15 mV/V	±1/50 %FS/°C	±2.5/50 %FS/°C	-	-
FN7325-73-M6-XYZ	20023226-00		Multiaxial	0 – 5000 Newton, 0 – 1500 Newton	-	-	IP50	10 VDC	±10 mV/V	±1/50 %FS/°C	±2/50 %FS/°C	-	-
FN7325-29-M12-XYZ	20025563-00		Multiaxial	0 – 100000 Newton, 0 – 60000 Newton	-	-	IP50	-15 – 15 VDC	±5 V	±1/50 %FS/°C	±2.5/50 %FS/°C	-	-
FN7325-M8-A1-XYZLMN	20031241-00		Multiaxial	0 – 15000 Newton, 0 – 30000 Newton, 0 – 600 Newton	0 – 440 lbf, 0 – 6000 lbf, 0 – 3000 lbf	IP50	10 – 30 VDC	±2 V	±2/50 %FS/°C	±2/50 %FS/°C	-	-
FN7325-M6-XYZ	EFN73-3V-S00002		Multiaxial	0 – 5000 Newton, 0 – 15000 Newton	0 – 1000 lbf, 0 – 3000 lbf	IP50	10 VDC	±10 mV/V	±2/50 %FS/°C	±2/50 %FS/°C	-	-
FN7325-M10-XYZ	EFN73-3V-S00003		Multiaxial	0 – 50000 Newton, 0 – 30000 Newton	0 – 10000 lbf, 0 – 6000 lbf	IP50	10 VDC	±10 mV/V	±2/50 %FS/°C	±2/50 %FS/°C	-	-
FN7325-48-M6	EFN73-3V-S00005		Compression, Tension	5000 – 15000 Newton	1000 – 3000 lbf	IP50	10 VDC	±10 mV/V	±2/50 %FS/°C	±2/50 %FS/°C	-	-
FN7325-M6-XYZN	EFN73-4V-S00001		Multiaxial	0 – 5000 Newton, 0 – 200 Newton, 0 – 15000 Newton	0 – 145 lbf, 0 – 1000 lbf, 0 – 3000 lbf	IP50	10 VDC	±10 mV/V	±2/50 %FS/°C	±2/50 %FS/°C	-	-
FN7325-45-M8-5V	EFN73-5V-S00002		Multiaxial	0 – 20000 Newton, 0 – 40000 Newton	-	-	IP50	10 VDC	±10 mV/V	±2/50 %FS/°C	±2/50 %FS/°C	-	-
FN7325-M6-XYZLMN	EFN73-6V-S00001		Multiaxial	0 – 5000 Newton, 0 – 200 Newton, 0 – 15000 Newton	0 – 145 lbf, 0 – 1000 lbf, 0 – 3000 lbf	IP50	10 VDC	±10 mV/V	±2/50 %FS/°C	±2/50 %FS/°C	-	-
FN7325-M6-A1-XYZLMN	EFN73-6V-S00006		Multiaxial	0 – 5000 Newton, 0 – 200 Newton, 0 – 15000 Newton	0 – 145 lbf, 0 – 1000 lbf, 0 – 3000 lbf	IP50	10 – 30 VDC	±2 V	±2/50 %FS/°C	±2/50 %FS/°C	-	-
FN7325-M12-XYZLMN	EFN73-6V-S00007		Multiaxial	0 – 2800 Newton, 0 – 100000 Newton, 0 – 60000 Newton	0 – 20000 lbf, 0 – 12000 lbf, 0 – 2065 lbf	IP50	10 VDC	±10 mV/V	±2/50 %FS/°C	±2/50 %FS/°C	-	-
FN7325-M8-XYZLMN	EFN73-6V-S00008		Multiaxial	0 – 15000 Newton, 0 – 30000 Newton, 0 – 600 Newton	0 – 440 lbf, 0 – 6000 lbf, 0 – 3000 lbf	IP50	10 VDC	±10 mV/V	±2/50 %FS/°C	±2/50 %FS/°C	-	-

Overview

The FN7325 is a multiaxial sensor based on strain gauge technology assembled in a Wheatstone full bridge. Each sensor is able to measure up to 6 channels Fx, Fy, Fz, Mx, My & Mz which can be selected by customer, as example FN7325-M6ZLM corresponds to 3 channel (Fz, Mx & My) with a M6 sensor design. Multiple designs and options can be adapted to this sensor such as integrated amplifier (A1 or A2) or separated connectors or cable outputs. The interfaces can also be modified to fit customer’s specifications.

Features

6-Component load cell
Range from 5 to 250 kN (1 to 50 klbf)
Measures force in three directions X, Y, Z
Measures torque in three directions Mx, My, Mz
Minimal cross effects
High level output model with optional integrated amplifier
Multiple and custom designs available

Applications

Crash testing
Automotive testing
Industrial test benches
Mechanical linkage
Structure testing

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Force Sensor Type Multiaxial Load Cells

Electrical Characteristics

Full Scale Range (Newton) 0 – 300 | 0 – 40000 | 0 – 100000 | 0 – 50000 | 0 – 2500 | 0 – 1500 | 0 – 600 | 0 – 200000 | 0 – 250000 | 0 – 15000 | 0 – 2800 | 0 – 200 | 0 – 30000 | 0 – 5000 | 0 – 7000 | 0 – 60000 | 0 – 20000 | 0 – 500000 | 5000 – 15000
Full Scale Range (lbf) 0 – 440 | 0 – 145 | 0 – 20000 | 0 – 3000 | 0 – 10000 | 0 – 1000 | 0 – 12000 | 0 – 5160 | 0 – 50000 | 0 – 2065 | 0 – 6000 | 1000 – 3000
Supply Voltage Range (VDC) -15 – 15 | 5 | 10 – 30 | 10

Usage Conditions

Operating Temperature Range -20 – 80 °C [ -4 – 176 °F ]
Accuracy ('% de la pleine échelle) ±1

Operation/Application

Output Signal Details ±10 mV/V | ±15 mV/V | ±2 V | ±5 V

Industry Standards

IP Rating IP50 | IP65

Other

Force Direction Compression | Multiaxial | Tension
Zero Shift in CTR (%FS/°C) ±1/50 | ±2/50
Sensitivity Shift (%FS/°C) ±2/50 | ±2.5/50
