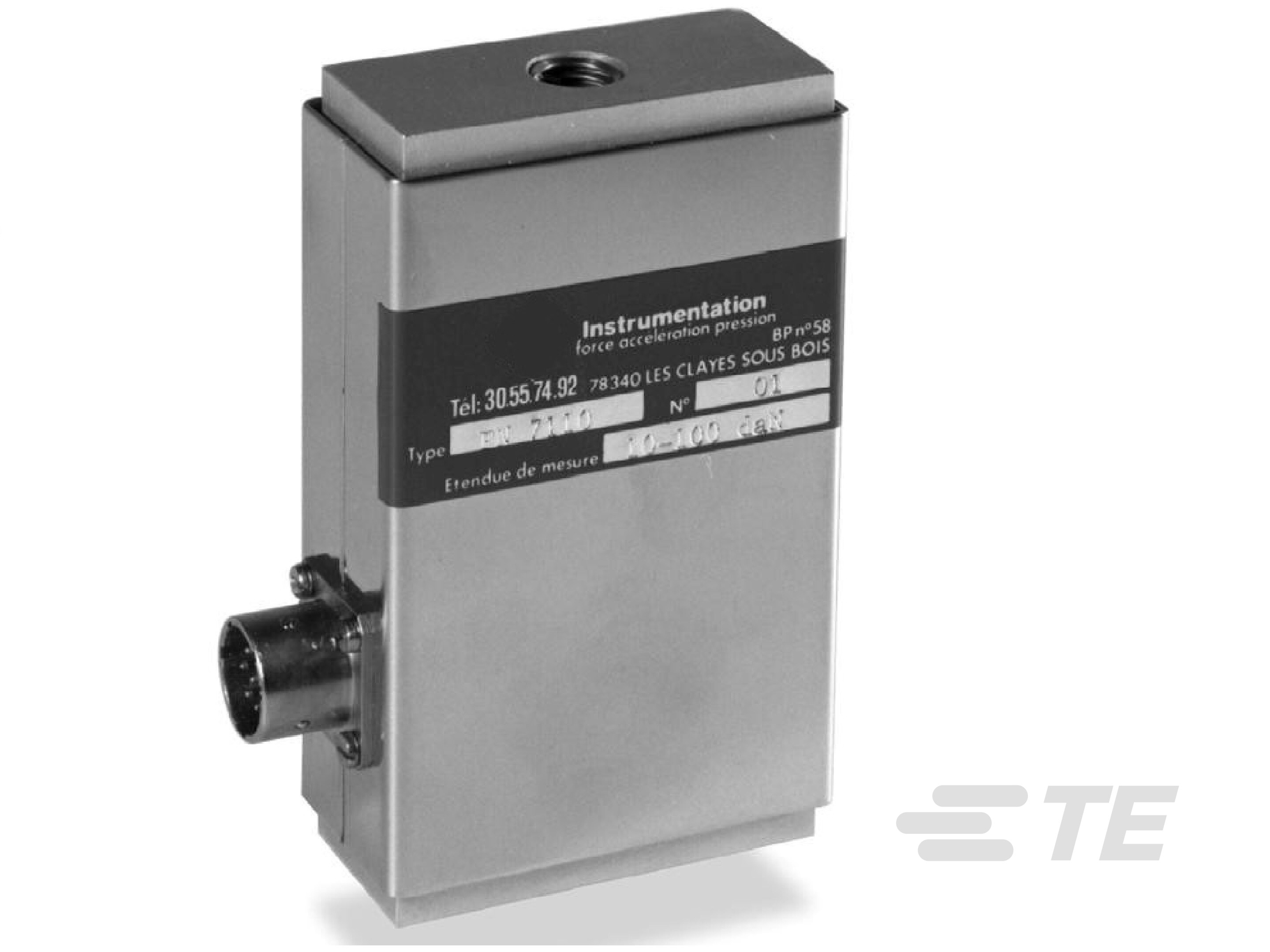

Double S-Beam Load Cell

MEAS

MEAS FN7110

The FN7110 features high accuracy measurement channels in two ranges in the same load cell. The standard ratio between the ranges is 1 to 10, and standard load range combinations go from 0-10 and 0-100 N through 0-1000 and 0-10,000 N. The FN7110's percentage accuracy is the same over each range in the load cell.

More Less

Documents |

Connect with Us

Product Features

Force Sensor Type : Multiaxial Load Cells
Force Direction : Compression | Multiaxial | Tension
Full Scale Range (Newton): 0 – 2000 | 0 – 200 | 0 – 10 | 0 – 5000 | 0 – 500 | 0 – 50 | 0 – 10000 | 0 – 1000 | 0 – 100
Full Scale Range (lbf): 0 – 200 | 0 – 2000 | 0 – 100 | 0 – 10 | 0 – 20 | 0 – 40 | 0 – 2 | 0 – 1000 | 0 – 112.4 | 0 – 400
Operating Temperature Range : -20 – 80 °C [ -4 – 176 °F ]

Available from

Product	TE Part #	Force Direction	Full Scale Range	Full Scale Range	Supply Voltage Range	Output Signal Details	EU RoHS Compliance	EU ELV Compliance
FN7110-A2-200N-2KN	10208726-00	Compression, Tension	0 – 200 Newton, 0 – 2000 Newton	0 – 400 lbf, 0 – 40 lbf	-15 – 15 VDC	±5 V	-	-
FN7110-A2-500N-5KN	10214638-00	Compression, Tension	0 – 500 Newton, 0 – 5000 Newton	0 – 100 lbf, 0 – 1000 lbf	-15 – 15 VDC	±5 V	-	-
FN7110-10N-100N	EFN71-10N-C00001	Compression, Tension	0 – 100 Newton, 0 – 10 Newton	0 – 2 lbf, 0 – 20 lbf	2 – 12 VDC	±2 mV/V	-	-
FN7110-A1-10N-100N	EFN71-10N-C00002	Compression, Tension	0 – 100 Newton, 0 – 10 Newton	0 – 2 lbf, 0 – 20 lbf	10 – 30 VDC	±2 V	-	-
FN7110-1KN-10KN	EFN71-1KN-C00001	Compression, Tension	0 – 1000 Newton, 0 – 10000 Newton	0 – 200 lbf, 0 – 2000 lbf	2 – 12 VDC	±2 V	-	-
FN7110-A1-500N-5KN	EFN71-500N-C00001	Compression, Tension	0 – 500 Newton, 0 – 5000 Newton	0 – 100 lbf, 0 – 1000 lbf	10 – 30 VDC	±2 V	-	-
FN7110-500N-5000N	EFN71-500N-C00002	Multiaxial	0 – 500 Newton	0 – 112.4 lbf	2 – 12 VDC	±2 mV/V	-	-
FN7110-A1-50N-500N	EFN71-50N-C00001	Compression, Tension	0 – 500 Newton, 0 – 50 Newton	0 – 100 lbf, 0 – 10 lbf	10 – 30 VDC	±2 V	-	-
FN7110-50N-500N	EFN71-50N-C00002	Compression, Tension	0 – 500 Newton, 0 – 50 Newton	0 – 100 lbf, 0 – 10 lbf	2 – 12 VDC	±2 V	-	-
FN7110-A2-50N-500N	EFN71-50N-C00003	Compression, Tension	0 – 500 Newton, 0 – 50 Newton	0 – 100 lbf, 0 – 10 lbf	-15 – 15 VDC	±5 V	-	-

Overview

Features

Double S-Beam load cell
Integrated mechanical stops
10/100 N to 1,000 /10,000 N (2/20 lbf to 200/2,000 lbf)
High resolution
Built-in amplifiers on request
Double full-scale range
Accuracy : 0.1% F.S.

Applications

Process control equipment
Robotics and effectors
Product validation testing
Laboratory and research

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Force Sensor Type Multiaxial Load Cells

Electrical Characteristics

Full Scale Range (Newton) 0 – 2000 | 0 – 200 | 0 – 10 | 0 – 5000 | 0 – 500 | 0 – 50 | 0 – 10000 | 0 – 1000 | 0 – 100
Full Scale Range (lbf) 0 – 200 | 0 – 2000 | 0 – 100 | 0 – 10 | 0 – 20 | 0 – 40 | 0 – 2 | 0 – 1000 | 0 – 112.4 | 0 – 400
Supply Voltage Range (VDC) -15 – 15 | 2 – 12 | 10 – 30

Usage Conditions

Operating Temperature Range -20 – 80 °C [ -4 – 176 °F ]
Accuracy (Porcentaje del valor máximo) ±.1

Operation/Application

Output Signal Details ±2 mV/V | ±2 V | ±5 V

Industry Standards

IP Rating IP50

Other

Force Direction Compression | Multiaxial | Tension
Zero Shift in CTR (%FS/°C) ±.5/50
Sensitivity Shift (%FS/°C) ±1/50
