S Beam Load Cell with Mechanical Stops

MEAS

MEAS FN3148

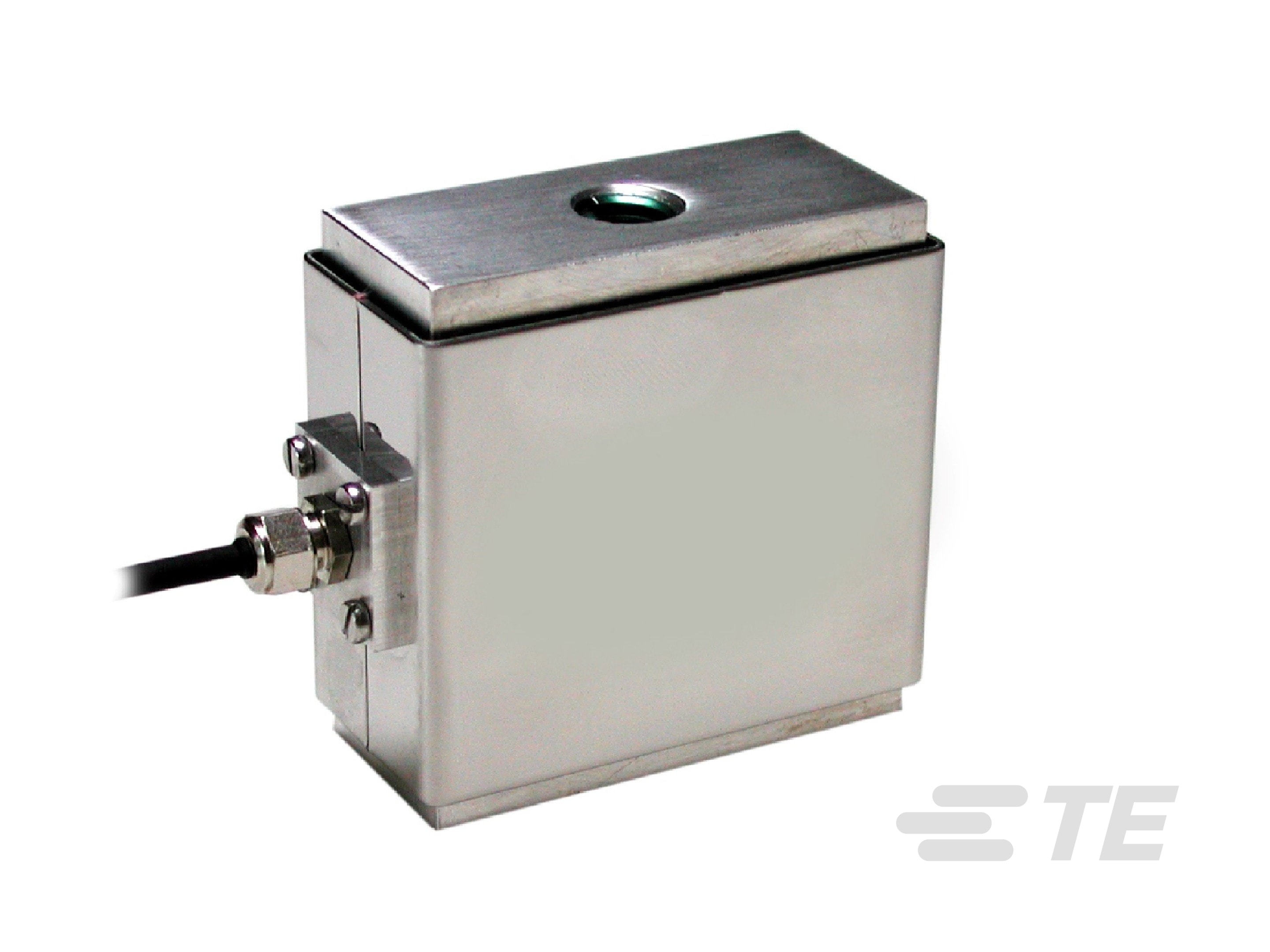

The FN3148 high precision S Beam load cell features accuracy of 0.05% F.S. It is available in standard ranges from 0-10 N to 0-2000 N.

More Less

Datasheet |
Digital Datasheet|

Connect with Us

Product Features

Force Sensor Type : Force Load Cells
Force Direction : Compression | Tension
Full Scale Range (Newton): 0 – 2000 | 0 – 200 | 0 – 10 | 0 – 500 | 0 – 50 | 0 – 20 | 0 – 1000 | 0 – 100
Full Scale Range (lbf): 0 – 22.5 | 0 – 45 | 0 – 2.248 | 0 – 449.6 | 0 – 2.25 | 0 – 44.96 | 0 – 22.48 | 0 – 224.8 | 0 – 11.24 | 0 – 11.2 | 0 – 4.496 | 0 – 112.4
Operating Temperature Range : -20 – 80 °C [ -4 – 176 °F ]

Available from

Product	TE Part #	Force Direction	Full Scale Range	Full Scale Range	Supply Voltage Range	Output Signal Type	Zero Shift in CTR	EU RoHS Compliance	EU ELV Compliance
FN3148-1KN-/L24M	EFN31-1KN-C20004	Compression, Tension	0 – 1000 Newton	0 – 224.8 lbf	10 VDC	±2 mV/V	±.5 %FS/°C	-	-
FN3148-A1-200N-/Z14/L3M	10211737-00	Compression, Tension	0 – 200 Newton	0 – 45 lbf	10 – 30 VDC	±2 V	±.5/50 %FS/°C	-	-
FN3148-1KN	EFN31-1KN-C20003	Compression, Tension	0 – 1000 Newton	0 – 224.8 lbf	10 VDC	±2 mV/V	±.5 %FS/°C	-	-
FN3148-A1-10N-/SC	EFN31-10N-C20001	Compression, Tension	0 – 10 Newton	0 – 2.248 lbf	10 – 30 VDC	±2 V	±.5 %FS/°C	-	-
FN3148-10N-/SC	EFN31-10N-C20002	Compression, Tension	0 – 10 Newton	0 – 2.248 lbf	10 VDC	±2 mV/V	±.5 %FS/°C	-	-
FN3148-A1-50N-/SC	EFN31-50N-C20001	Compression, Tension	0 – 50 Newton	0 – 11.24 lbf	10 – 30 VDC	±2 V	±.5 %FS/°C	-	-
FN3148-A2-10N-/SC	EFN31-10N-C20006	Compression, Tension	0 – 10 Newton	0 – 2.248 lbf	-15 – 15 VDC	±5 V	±.5 %FS/°C	-	-
FN3148-200N	EFN31-200N-C20005	Compression, Tension	0 – 200 Newton	0 – 44.96 lbf	10 VDC	±2 mV/V	±.5 %FS/°C	-	-
FN3148-1KN-/SC	EFN31-1KN-C20002	Compression, Tension	0 – 1000 Newton	0 – 224.8 lbf	10 VDC	±2 mV/V	±.5 %FS/°C	-	-
FN3148-A1-100N-/L4M	EFN31-100N-C20006	Compression, Tension	0 – 100 Newton	0 – 22.48 lbf	10 – 30 VDC	±2 V	±.5 %FS/°C	-	-
FN3148-2KN-/L3M	EFN31-2KN-C20005	Compression, Tension	0 – 2000 Newton	0 – 449.6 lbf	10 VDC	±2 mV/V	±.5 %FS/°C	-	-
FN3148-100N-/L10M	EFN31-100N-C20004	Compression, Tension	0 – 100 Newton	0 – 22.48 lbf	10 VDC	±2 mV/V	±.5 %FS/°C	-	-
FN3148-100N-/SC	EFN31-100N-C20005	Compression, Tension	0 – 100 Newton	0 – 22.48 lbf	10 VDC	±2 mV/V	±.5 %FS/°C	-	-
FN3148-A1-2KN	EFN31-2KN-C20008	Compression, Tension	0 – 2000 Newton	0 – 449.6 lbf	10 – 30 VDC	±2 V	±.5 %FS/°C	-	-
FN3148-A1-500N-/SC	EFN31-500N-C20001	Compression, Tension	0 – 500 Newton	0 – 112.4 lbf	10 – 30 VDC	±2 V	±.5 %FS/°C	-	-
FN3148-10N-/L5M	EFN31-10N-C20004	Compression, Tension	0 – 10 Newton	0 – 2.248 lbf	10 VDC	±2 mV/V	±.5 %FS/°C	-	-
FN3148-A1-1KN-/SC	EFN31-1KN-C20001	Compression, Tension	0 – 1000 Newton	0 – 224.8 lbf	10 – 30 VDC	±2 V	±.5 %FS/°C	-	-
FN3148-A2-1KN-/Z04/SC	20017046-00	Compression, Tension	0 – 1000 Newton	0 – 224.8 lbf	-15 – 15 VDC	±5 V	±.5 %FS/°C	-	-
FN3148-A2-50N-/Z04/SC	20017043-00	Compression, Tension	0 – 50 Newton	0 – 11.24 lbf	-15 – 15 VDC	±5 V	±.5 %FS/°C	-	-
FN3148-A2-10N-/L10M	10221705-00	Compression, Tension	0 – 10 Newton	0 – 2.25 lbf	-15 – 15 VDC	±5 V	±.5/50 %FS/°C	-	-
FN3148-A2-10N-/L3M	EFN31-10N-C20008	Compression, Tension	0 – 10 Newton	0 – 2.248 lbf	-15 – 15 VDC	±5 V	±.5 %FS/°C	-	-
FN3148-100N-/L3M	EFN31-100N-C20008	Compression, Tension	0 – 100 Newton	0 – 22.48 lbf	10 VDC	±2 mV/V	±.5 %FS/°C	-	-
FN3148-1KN-/L5M	EFN31-1KN-C20005	Compression, Tension	0 – 1000 Newton	0 – 224.8 lbf	10 VDC	±2 mV/V	±.5 %FS/°C	-	-
FN3148-A2-10N-/Z14	10217338-00	Compression, Tension	0 – 10 Newton	0 – 2.25 lbf	-15 – 15 VDC	±5 V	±.5/50 %FS/°C	-	-
FN3148-500N-/Z35	20012448-00	Compression, Tension	0 – 500 Newton	0 – 112.4 lbf	10 VDC	±2 mV/V	±.5/50 %FS/°C	-	-
FN3148-A2-100N	20009134-00	Compression, Tension	0 – 100 Newton	0 – 22.5 lbf	-15 – 15 VDC	±5 V	±.5/50 %FS/°C	-	-
FN3148-A1-500N	EFN31-500N-C20002	Compression, Tension	0 – 500 Newton	0 – 112.4 lbf	10 – 30 VDC	±2 V	±.5 %FS/°C	-	-
FN3148-A1-100N-/SC	EFN31-100N-C20001	Compression, Tension	0 – 100 Newton	0 – 22.48 lbf	10 – 30 VDC	±2 V	±.5 %FS/°C	-	-
FN3148-A1-100N	EFN31-100N-C20002	Compression, Tension	0 – 100 Newton	0 – 22.48 lbf	10 – 30 VDC	±2 V	±.5 %FS/°C	-	-
FN3148-A2-200N-/SC	EFN31-200N-C20006	Compression, Tension	0 – 200 Newton	0 – 44.96 lbf	-15 – 15 VDC	±5 V	±.5 %FS/°C	-	-
FN3148-A1-10N	EFN31-10N-C20007	Compression, Tension	0 – 10 Newton	0 – 2.248 lbf	10 – 30 VDC	±2 V	±.5 %FS/°C	-	-
FN3148-100N-/L8M	10205187-00	Compression, Tension	0 – 100 Newton	0 – 22.5 lbf	10 VDC	±2 mV/V	±.5/50 %FS/°C	-	-
FN3148-500N	EFN31-500N-C20004	Compression, Tension	0 – 500 Newton	0 – 112.4 lbf	10 VDC	±2 mV/V	±.5 %FS/°C	-	-
FN3148-10N-/L3M	EFN31-10N-C20009	Compression, Tension	0 – 10 Newton	0 – 2.248 lbf	10 VDC	±2 mV/V	±.5 %FS/°C	-	-
FN3148-2KN	EFN31-2KN-C20004	Compression, Tension	0 – 2000 Newton	0 – 449.6 lbf	10 VDC	±2 mV/V	±.5 %FS/°C	-	-
FN3148-A1-50N	EFN31-50N-C20004	Compression, Tension	0 – 50 Newton	0 – 11.24 lbf	10 – 30 VDC	±2 V	±.5 %FS/°C	-	-
FN3148-100N	EFN31-100N-C20003	Compression, Tension	0 – 100 Newton	0 – 22.48 lbf	10 VDC	±2 mV/V	±.5 %FS/°C	-	-
FN3148-S105-20N-/L3M	EFN31-20N-S00001	Compression, Tension	0 – 20 Newton	0 – 4.496 lbf	10 VDC	±2 mV/V	±.5 %FS/°C	-	-
FN3148-A2-1KN-/SC	EFN31-1KN-C20009	Compression, Tension	0 – 1000 Newton	0 – 224.8 lbf	-15 – 15 VDC	±5 V	±.5/50 %FS/°C	-	-
FN3148-A2-50N	EFN31-50N-C20006	Compression, Tension	0 – 50 Newton	0 – 11.24 lbf	-15 – 15 VDC	±5 V	±.5 %FS/°C	-	-
FN3148-50N-/L4M	10212409-00	Compression, Tension	0 – 50 Newton	0 – 11.2 lbf	10 VDC	±2 mV/V	±.5/50 %FS/°C	-	-
FN3148-A2-50N-/SC	EFN31-50N-C20005	Compression, Tension	0 – 50 Newton	0 – 11.2 lbf	-15 – 15 VDC	±5 V	±.5/50 %FS/°C	-	-
FN3148-50N-/L3M	EFN31-50N-C20009	Compression, Tension	0 – 50 Newton	0 – 11.2 lbf	10 VDC	±2 mV/V	±.5/50 %FS/°C	-	-
FN3148-2KN-/SC	EFN31-2KN-C20002	Compression, Tension	0 – 2000 Newton	0 – 449.6 lbf	10 VDC	±2 mV/V	±.5/50 %FS/°C	-	-
FN3148-A1-200N	EFN31-200N-C20002	Compression, Tension	0 – 200 Newton	0 – 45 lbf	10 – 30 VDC	±2 V	±.5/50 %FS/°C	-	-
FN3148-50N-/SC	EFN31-50N-C20003	Compression, Tension	0 – 50 Newton	0 – 11.24 lbf	10 VDC	±2 mV/V	±.5 %FS/°C	-	-
FN3148-500N-/SC	EFN31-500N-C20006	Compression, Tension	0 – 500 Newton	0 – 112.4 lbf	10 VDC	±2 mV/V	±.5/50 %FS/°C	-	-
FN3148-A2-500N-/SC	EFN31-500N-C20011	Compression, Tension	0 – 500 Newton	0 – 112.4 lbf	-15 – 15 VDC	±5 V	±.5/50 %FS/°C	-	-
FN3148-50N	EFN31-50N-C20002	Compression, Tension	0 – 50 Newton	0 – 11.24 lbf	10 VDC	±2 mV/V	±.5 %FS/°C	-	-
FN3148-10N	EFN31-10N-C20003	Compression, Tension	0 – 10 Newton	0 – 2.248 lbf	10 VDC	±2 mV/V	±.5 %FS/°C	-	-

Overview

Integrated mechanical stops protect against accidental overloads in tension and compression. For high-level output a model with integrated amplifier is available. For lower ranges, another sensor, model FN3280, can measure 0-1 to 0-5N [0.2 to 1 lbf]. With many years of experience as a designer and manufacturer of sensors, Measurement Specialties, Inc. often works with customers to design or customize sensors for specific uses and testing environments. To meet your needs we also offer complete turnkey systems. The matched components (sensor, power, amplifier and digital display) are formatted, calibrated and ready for immediate use.

BENEFITS

Ranges from 10 to 2 000 N [2 to 400 lbf]
S-Beam sensor with mechanical stops in tension and compression
Combined linearity & hysteresis < 0.05% F.S.
High level output with integrated amplifier
High accuracy
Tension and Compression
Integrated Mechanical Stops
Integrated Amplifier optional
Cable or connector output

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Force Sensor Type Force Load Cells

Electrical Characteristics

Full Scale Range (Newton) 0 – 2000 | 0 – 200 | 0 – 10 | 0 – 500 | 0 – 50 | 0 – 20 | 0 – 1000 | 0 – 100
Full Scale Range (lbf) 0 – 22.5 | 0 – 45 | 0 – 2.248 | 0 – 449.6 | 0 – 2.25 | 0 – 44.96 | 0 – 22.48 | 0 – 224.8 | 0 – 11.24 | 0 – 11.2 | 0 – 4.496 | 0 – 112.4
Supply Voltage Range (VDC) -15 – 15 | 10 | 10 – 30

Usage Conditions

Operating Temperature Range -20 – 80 °C [ -4 – 176 °F ]
Accuracy (% of FS) ±.05

Operation/Application

Output Signal Type ±2 mV/V | ±2 V | ±5 V

Industry Standards

IP Rating IP50

Other

Force Direction Compression | Tension
Zero Shift in CTR (%FS/°C) ±.5 | ±.5/50
Sensitivity Shift (%FS/°C) ±.5/50

Reference Number

TE Internal Number CAT-FLS0014
