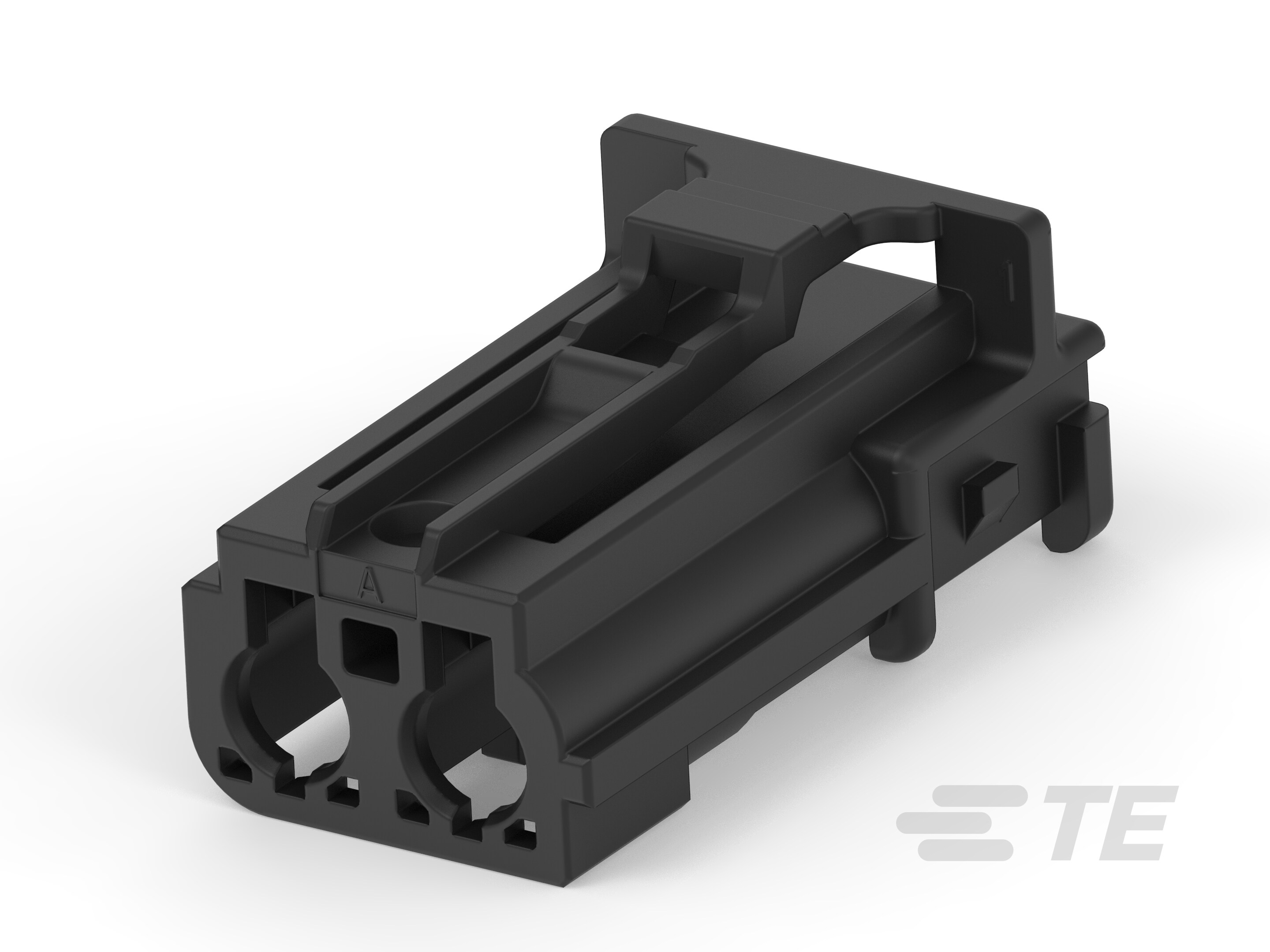

Connector Housings, 180 Degree, Coax

Please review product documents or contact us for the latest agency approval information.

• Primary Locking Feature  On the Terminal

• Connector & Contact Terminates To  Wire & Cable

• Mixed & Hybrid Connector  No

• Connector System  Cable-to-Board, Cable-to-Cable

• Sealable  No

• Connector & Housing Type  Housing for Female Terminals, Housing for Male Terminals

• Number of Rows  1

• Snap-Lock  Without

• Number of Positions  1

• Cable Exit Type  Fixed

• Ferrule  With

• Body Material  PBT

• Cable Exit Angle  180°

• Connector & Keying Code  A

• Contact Mating Area Plating Material  Gold (Au)

• Contact Type  Pin, Socket

• Center Contact  With

• Mating Pin Diameter  .4 mm [ .01 in ]

• Contact Current Rating (Max) (A) 1

• Termination Method to Wire & Cable  Crimp

• Connector Mounting Type  Cable Mount (Free-Hanging)

• Housing Color  Black

• Product Width (mm) 21.05, 29.85

• Product Width (in) .82, 1.17

• Connector Height (mm) 9.3, 12.6

• Connector Height (in) .36, .49

• Product Length (mm) 6.7, 13.1

• Product Length (in) .26, .51

• Operating Temperature (Max)  105 °C [ 221 °F ]

• Cable Type  Coaxial

• Operating Temperature Range  -40 – 105 °C [ -40 – 221 °F ]

• Shielded  No

• Circuit Application  Signal

• Packaging Method  Box, Tray

• Packaging Quantity  60, 500

• Connector Position Assurance Capable  No
