Extruded EMI Gasket Conductive Strip

Kemtron

Kemtron 1201 Series
Kemtron 1202 Series

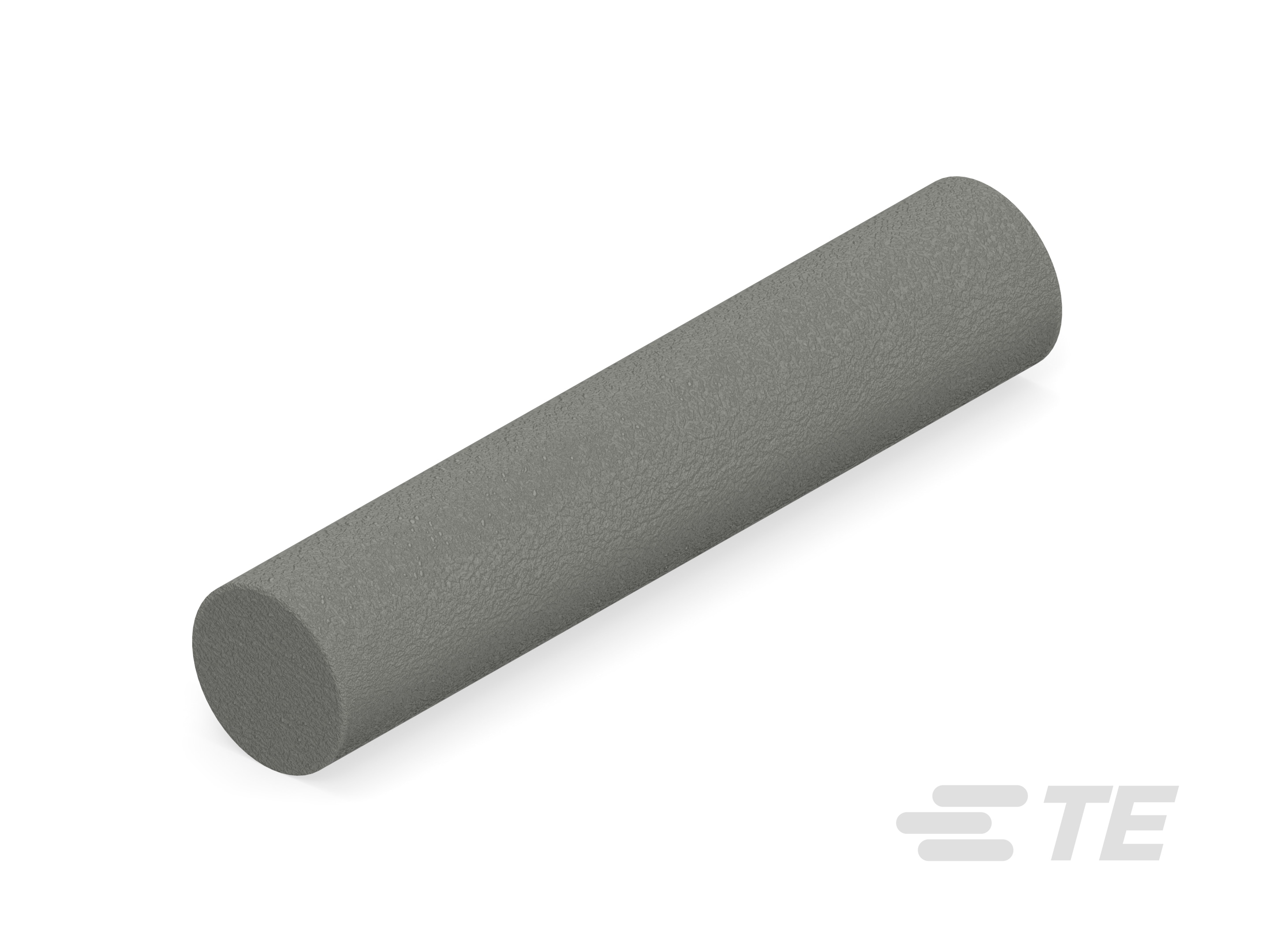

Extrusion EMI Gasket in solid round and tube shape having conductive strip of fluorosilicone binding, filled with nickel plated graphite and Silver Plated Aluminum material with 1 - 10 meter length.

More Less

Product Features

Gasket Type: Extruded EMI Gasket
Finished Type: Conductive Strip
Reuse Limits: Reusable More Than 3 Times

Available from

Product	TE Part #	Documents	Binding Material	Filler Material	Gasket Shape	Product Length	Operating Temperature Range	Resistance to Petroleum	Volume Resistivity (Max)	Outside Diameter	Inside Diameter
FNG Cord 1.0mm x 1m L Buy on te.com	2420744-1	Product Drawing	Fluorosilicone	Nickel Plated Graphite (Ni/C)	Solid Round	1 m	-55 – 160 °C	Yes	.05 Ω.cm	1 mm	-
FNG Cord 1.6mm x 1m L Buy on te.com	2420745-1	Product Drawing	Fluorosilicone	Nickel Plated Graphite (Ni/C)	Solid Round	1 m	-55 – 160 °C	Yes	.05 Ω.cm	1.6 mm	-
FNG Cord 1.8mm x 1m L Buy on te.com	2420746-1	Product Drawing	Fluorosilicone	Nickel Plated Graphite (Ni/C)	Solid Round	1 m	-55 – 160 °C	Yes	.05 Ω.cm	1.8 mm	-
FNG Cord 2.0mm x 1m L Buy on te.com	2420747-1	Product Drawing	Fluorosilicone	Nickel Plated Graphite (Ni/C)	Solid Round	1 m	-55 – 160 °C	Yes	.05 Ω.cm	2 mm	-
FSA Cord 1.0mm x 1m L Buy on te.com	2420748-1	Product Drawing	Fluorosilicone	Silver Plated Aluminum (Ag/Al)	Solid Round	1 m	-55 – 160 °C	Yes	.012 Ω.cm	1 mm	-
FSA Cord 1.6mm x 1m L Buy on te.com	2420749-1	Product Drawing	Fluorosilicone	Silver Plated Aluminum (Ag/Al)	Solid Round	1 m	-55 – 160 °C	Yes	.012 Ω.cm	1.6 mm	-
FSA Cord 1.8mm x 1m L Buy on te.com	2420750-1	Product Drawing	Fluorosilicone	Silver Plated Aluminum (Ag/Al)	Solid Round	1 m	-55 – 160 °C	Yes	.012 Ω.cm	1.8 mm	-
FSA Cord 2.0mm x 1m L Buy on te.com	2420751-1	Product Drawing	Fluorosilicone	Silver Plated Aluminum (Ag/Al)	Solid Round	1 m	-55 – 160 °C	Yes	.012 Ω.cm	2 mm	-
SNG Cord 1.0mm x 1m L Buy on te.com	2420730-1	Product Drawing	Silicone	Nickel Plated Graphite (Ni/C)	Solid Round	1 m	-55 – 160 °C	No	.05 Ω.cm	1 mm	-
SNG Cord 1.6mm x 1m L Buy on te.com	2420731-1	Product Drawing	Silicone	Nickel Plated Graphite (Ni/C)	Solid Round	1 m	-55 – 160 °C	No	.05 Ω.cm	1.6 mm	-
SNG Cord 1.8mm x 1m L Buy on te.com	2420732-1	Product Drawing	Silicone	Nickel Plated Graphite (Ni/C)	Solid Round	1 m	-55 – 160 °C	No	.05 Ω.cm	1.8 mm	-
SNG Cord 2.0mm x 1m L Buy on te.com	2420733-1	Product Drawing	Silicone	Nickel Plated Graphite (Ni/C)	Solid Round	1 m	-55 – 160 °C	No	.05 Ω.cm	2 mm	-
SSA Cord 1.6mm x 1m L Buy on te.com	2420735-1	Product Drawing	Silicone	Silver Plated Aluminum (Ag/Al)	Solid Round	1 m	-55 – 160 °C	No	.008 Ω.cm	1.6 mm	-
SSA Cord 1.8mm x 1m L Buy on te.com	2420736-1	Product Drawing	Silicone	Silver Plated Aluminum (Ag/Al)	Solid Round	1 m	-55 – 160 °C	No	.008 Ω.cm	1.8 mm	-
FNG Tube 2.6mm OD x 1.1mm ID x 1m L Buy on te.com	2420753-1	Product Drawing	Fluorosilicone	Nickel Plated Graphite (Ni/C)	Tube	1 m	-55 – 160 °C	Yes	.05 Ω.cm	2.6 mm	1.1 mm
FSA Tube 1.6mm OD x 0.5mm ID x 1m L Buy on te.com	2420755-1	Product Drawing	Fluorosilicone	Silver Plated Aluminum (Ag/Al)	Tube	1 m	-55 – 160 °C	Yes	.012 Ω.cm	1.6 mm	.5 mm
FSA Tube 2.6mm OD x 1.1mm ID x 1m L Buy on te.com	2420756-1	Product Drawing	Fluorosilicone	Silver Plated Aluminum (Ag/Al)	Tube	1 m	-55 – 160 °C	Yes	.012 Ω.cm	2.6 mm	1.1 mm
SNG Tube 1.6mm OD x 0.5mm ID x 1m L Buy on te.com	2420738-1	Product Drawing	Silicone	Nickel Plated Graphite (Ni/C)	Tube	1 m	-55 – 160 °C	No	.05 Ω.cm	1.6 mm	.5 mm
SNG Tube 2.6mm OD x 1.1mm ID x 1m L Buy on te.com	2420739-1	Product Drawing	Silicone	Nickel Plated Graphite (Ni/C)	Tube	1 m	-55 – 160 °C	No	.05 Ω.cm	2.6 mm	1.1 mm
SSA Tube 1.6mm OD x 0.5mm ID x 1m L Buy on te.com	2420741-1	Product Drawing	Silicone	Silver Plated Aluminum (Ag/Al)	Tube	1 m	-55 – 160 °C	No	.008 Ω.cm	1.6 mm	.5 mm
FNG Cord 1.0mm x 10m L	2418116-1	Product Drawing	Fluorosilicone	Nickel Plated Graphite (Ni/C)	Solid Round	10 m	-55 – 160 °C	Yes	.05 Ω.cm	1 mm	-
FNG Cord 1.6mm x 10m L	2418210-1	Product Drawing	Fluorosilicone	Nickel Plated Graphite (Ni/C)	Solid Round	10 m	-55 – 160 °C	Yes	.05 Ω.cm	1.6 mm	-
FNG Cord 1.8mm x 10m L	2418211-1	Product Drawing	Fluorosilicone	Nickel Plated Graphite (Ni/C)	Solid Round	10 m	-55 – 160 °C	Yes	.05 Ω.cm	1.8 mm	-
FNG Cord 2.0mm x 10m L	2418212-1	Product Drawing	Fluorosilicone	Nickel Plated Graphite (Ni/C)	Solid Round	10 m	-55 – 160 °C	Yes	.05 Ω.cm	2 mm	-
FSA Cord 1.0mm x 10m L	2418121-1	Product Drawing	Fluorosilicone	Silver Plated Aluminum (Ag/Al)	Solid Round	10 m	-55 – 160 °C	Yes	.012 Ω.cm	1 mm	-
FSA Cord 1.6mm x 10m L	2418213-1	Product Drawing	Fluorosilicone	Silver Plated Aluminum (Ag/Al)	Solid Round	10 m	-55 – 160 °C	Yes	.012 Ω.cm	1.6 mm	-
FSA Cord 1.8mm x 10m L	2418214-1	Product Drawing	Fluorosilicone	Silver Plated Aluminum (Ag/Al)	Solid Round	10 m	-55 – 160 °C	Yes	.012 Ω.cm	1.8 mm	-
FSA Cord 2.0mm x 10m L	2418215-1	Product Drawing	Fluorosilicone	Silver Plated Aluminum (Ag/Al)	Solid Round	10 m	-55 – 160 °C	Yes	.012 Ω.cm	2 mm	-
SNG Cord 1.0mm x 10m L	2418192-1	Product Drawing	Silicone	Nickel Plated Graphite (Ni/C)	Solid Round	10 m	-55 – 160 °C	No	.05 Ω.cm	1 mm	-
SNG Cord 1.6mm x 10m L	2418091-1	Product Drawing	Silicone	Nickel Plated Graphite (Ni/C)	Solid Round	10 m	-55 – 160 °C	No	.05 Ω.cm	1.6 mm	-
SNG Cord 1.8mm x 10m L	2418092-1	Product Drawing	Silicone	Nickel Plated Graphite (Ni/C)	Solid Round	10 m	-55 – 160 °C	No	.05 Ω.cm	1.8 mm	-
SNG Cord 2.0mm x 10m L	2418093-1	Product Drawing	Silicone	Nickel Plated Graphite (Ni/C)	Solid Round	10 m	-55 – 160 °C	No	.05 Ω.cm	2 mm	-
SSA Cord 1.0mm x 10m L	2418094-1	Product Drawing	Silicone	Silver Plated Aluminum (Ag/Al)	Solid Round	10 m	-55 – 160 °C	No	.008 Ω.cm	1 mm	-
SSA Cord 1.0mm x 1m L	2420734-1	Product Drawing	Silicone	Silver Plated Aluminum (Ag/Al)	Solid Round	1 m	-55 – 160 °C	No	.008 Ω.cm	1 mm	-
SSA Cord 1.6mm x 10m L	2418095-1	Product Drawing	Silicone	Silver Plated Aluminum (Ag/Al)	Solid Round	10 m	-55 – 160 °C	No	.008 Ω.cm	1.6 mm	-
SSA Cord 1.8mm x 10m L	2418096-1	Product Drawing	Silicone	Silver Plated Aluminum (Ag/Al)	Solid Round	10 m	-55 – 165 °C	No	.008 Ω.cm	1.8 mm	-
SSA Cord 2.0mm x 10m L	2418193-1	Product Drawing	Silicone	Silver Plated Aluminum (Ag/Al)	Solid Round	10 m	-55 – 165 °C	No	.008 Ω.cm	2 mm	-
SSA Cord 2.0mm x 1m L	2420737-1	Product Drawing	Silicone	Silver Plated Aluminum (Ag/Al)	Solid Round	1 m	-55 – 160 °C	No	.008 Ω.cm	2 mm	-
FNG Tube 1.6mm OD x 0.5mm ID x 10m L	2418216-1	Product Drawing	Fluorosilicone	Nickel Plated Graphite (Ni/C)	Tube	10 m	-55 – 160 °C	Yes	.05 Ω.cm	1.6 mm	.5 mm
FNG Tube 1.6mm OD x 0.5mm ID x 1m L	2420752-1	Product Drawing	Fluorosilicone	Nickel Plated Graphite (Ni/C)	Tube	1 m	-55 – 160 °C	Yes	.05 Ω.cm	1.6 mm	.5 mm
FNG Tube 2.6mm OD x 1.1mm ID x 10m L	2418217-1	Product Drawing	Fluorosilicone	Nickel Plated Graphite (Ni/C)	Tube	10 m	-55 – 160 °C	Yes	.05 Ω.cm	2.6 mm	1.1 mm
FNG Tube 3.2mm OD x 1.1mm ID x 10m L	2418218-1	Product Drawing	Fluorosilicone	Nickel Plated Graphite (Ni/C)	Tube	10 m	-55 – 160 °C	Yes	.05 Ω.cm	3.2 mm	1.1 mm
FNG Tube 3.2mm OD x 1.1mm ID x 1m L	2420754-1	Product Drawing	Fluorosilicone	Nickel Plated Graphite (Ni/C)	Tube	1 m	-55 – 160 °C	Yes	.05 Ω.cm	3.2 mm	1.1 mm
FSA Tube 1.6mm OD x 0.5mm ID x 10m L	2418219-1	Product Drawing	Fluorosilicone	Silver Plated Aluminum (Ag/Al)	Tube	10 m	-55 – 160 °C	Yes	.012 Ω.cm	1.6 mm	.5 mm
FSA Tube 2.6mm OD x 1.1mm ID x 10m L	2418220-1	Product Drawing	Fluorosilicone	Silver Plated Aluminum (Ag/Al)	Tube	10 m	-55 – 160 °C	Yes	.012 Ω.cm	2.6 mm	1.1 mm
FSA Tube 3.2mm OD x 1.1mm ID x 10m L	2418221-1	Product Drawing	Fluorosilicone	Silver Plated Aluminum (Ag/Al)	Tube	10 m	-55 – 160 °C	Yes	.012 Ω.cm	3.2 mm	1.1 mm
FSA Tube 3.2mm OD x 1.1mm ID x 1m L	2420757-1	Product Drawing	Fluorosilicone	Silver Plated Aluminum (Ag/Al)	Tube	1 m	-55 – 160 °C	Yes	.012 Ω.cm	3.2 mm	1.1 mm
SNG Tube 1.6mm OD x 0.5mm ID x 10m L	2418098-1	Product Drawing	Silicone	Nickel Plated Graphite (Ni/C)	Tube	10 m	-55 – 160 °C	No	.05 Ω.cm	1.6 mm	.5 mm
SNG Tube 2.6mm OD x 1.1mm ID x 10m L	2418194-1	Product Drawing	Silicone	Nickel Plated Graphite (Ni/C)	Tube	10 m	-55 – 160 °C	No	.05 Ω.cm	2.6 mm	1.1 mm
SNG Tube 3.2mm OD x 1.1mm ID x 10m L	2418195-1	Product Drawing	Silicone	Nickel Plated Graphite (Ni/C)	Tube	10 m	-55 – 160 °C	No	.05 Ω.cm	3.2 mm	1.1 mm
SNG Tube 3.2mm OD x 1.1mm ID x 1m L	2420740-1	Product Drawing	Silicone	Nickel Plated Graphite (Ni/C)	Tube	1 m	-55 – 160 °C	No	.05 Ω.cm	3.2 mm	1.1 mm
SSA Tube 1.6mm OD x 0.5mm ID x 10m L	2418196-1	Product Drawing	Silicone	Silver Plated Aluminum (Ag/Al)	Tube	10 m	-55 – 160 °C	No	.008 Ω.cm	1.6 mm	.5 mm
SSA Tube 2.6mm OD x 1.1mm ID x 10m L	2418197-1	Product Drawing	Silicone	Silver Plated Aluminum (Ag/Al)	Tube	10 m	-55 – 160 °C	No	.008 Ω.cm	2.6 mm	1.1 mm
SSA Tube 2.6mm OD x 1.1mm ID x 1m L	2420742-1	Product Drawing	Silicone	Silver Plated Aluminum (Ag/Al)	Tube	1 m	-55 – 160 °C	No	.008 Ω.cm	2.6 mm	1.1 mm
SSA Tube 3.2mm OD x 1.1mm ID x 10m L	2418198-1	Product Drawing	Silicone	Silver Plated Aluminum (Ag/Al)	Tube	10 m	-55 – 160 °C	No	.008 Ω.cm	3.2 mm	1.1 mm
SSA Tube 3.2mm OD x 1.1mm ID x 1m L	2420743-1	Product Drawing	Silicone	Silver Plated Aluminum (Ag/Al)	Tube	1 m	-55 – 160 °C	No	.008 Ω.cm	3.2 mm	1.1 mm

Features

Please review product documents or contact us for the latest agency approval information.

Product Type Features

Finished Type Conductive Strip
Binding Material Fluorosilicone, Silicone
Filler Material Nickel Plated Graphite (Ni/C), Silver Plated Aluminum (Ag/Al)
Closing Force (N/cm) 2.4, 3.8, 6.1, 6.7, 9.7

Electrical Characteristics

Resistance to Petroleum No, Yes
Volume Resistivity (Max) (Ω.cm) .008, .012, .05

Body Features

Gasket Type Extruded EMI Gasket
Gasket Shape Solid Round, Tube

Dimensions

Product Length (m) 1, 10
Product Length (ft) 3.28, 32.8
Outside Diameter (mm) 1, 1.6, 1.8, 2, 2.6, 3.2
Outside Diameter (in) .039, .062, .07, .078, .102, .125
Inside Diameter (mm) .5, 1.1
Inside Diameter (in) .019, .043

Usage Conditions

Operating Temperature Range (°C) -55 – 160, -55 – 165
Operating Temperature Range (°F) -67 – 320

Other

Reuse Limits Reusable More Than 3 Times

Reference Number

TE Internal Number CAT-EMIG-0001
