Contact: Component To Wire; 55-60A, 16-6 Wire Size

Contact: Component To Wire; 55-60A, 16-6 Wire Size-CAT-D9934-A86

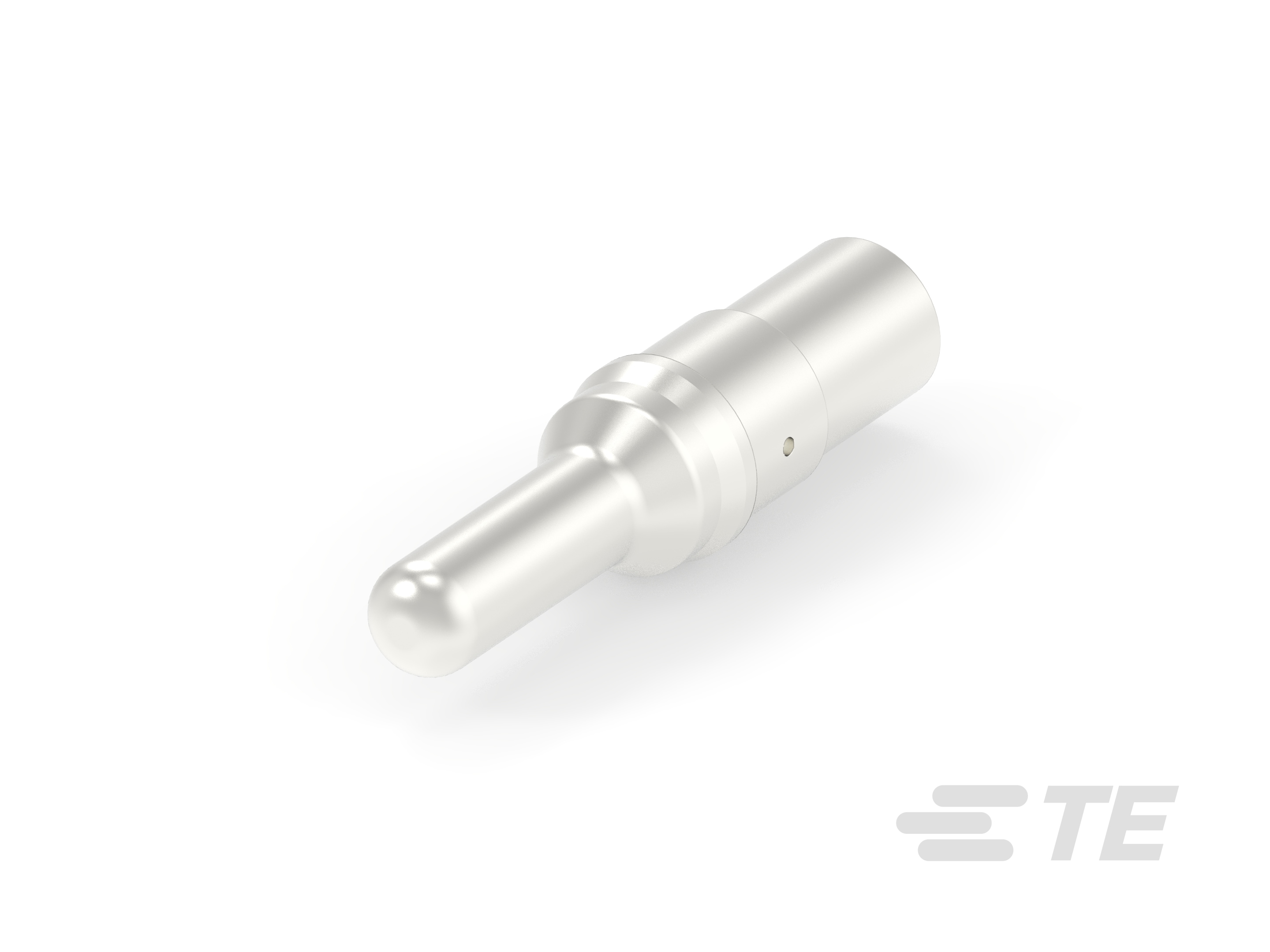

The Dynamic 7000 contact tabs and receptacles are designed with a maximum 65A contact current rating, 16 - 6 wire size, and available with gold or silver plating. Used in power circuit applications.
More Less
Connect with Us

Product Features

  • Contact Type : Pin | Socket

  • Contact Mating Area Plating Material : Gold (Au) | Silver (Ag)

  • Operating Voltage (VAC): 630

  • Operating Voltage (VDC): 630

  • Wire Size (AWG): 6 | 8 | 12 – 10 | 16 – 14

Available from

LADD Inc
Features

Please review product documents or contact us for the latest agency approval information.

Electrical Characteristics

  • Operating Voltage (VAC) 630

  • Operating Voltage (VDC) 630

Contact Features

  • Barrel Type  Closed

  • Contact Type  Pin | Socket

  • Contact Mating Area Plating Material  Gold (Au) | Silver (Ag)

  • Contact Base Material  Copper Alloy

  • Contact Current Rating (Max) (A) 65

  • Mating Pin Diameter  6.28 mm [ .25 in ]

  • Contact Mating Area Plating Material Thickness  2.54 µm [ 100 µin ]

  • Contact Orientation  Straight

  • Contact Underplating Material  Nickel

  • Contact Underplating Material Thickness  1.3 µm [ 51.18 µin ]

Termination Features

  • Termination Method to Wire & Cable  Crimp

  • Product Terminates To  Wire & Cable

Dimensions

  • Wire Size (AWG) 6 | 8 | 12 – 10 | 16 – 14

  • Wire Size (mm²) 1.23 – 2.27 | 2.7 – 6.6 | 6.7 – 10.5 | 7.95 – 8.92 | 10.6 – 16.7

  • Compatible Insulation Diameter Range  1 – 2.5 mm [ .039 – .098 in ]

Usage Conditions

  • Operating Temperature Range  -55 – 105 °C [ -67 – 221 °F ]

Operation/Application

  • Circuit Application  Power

Packaging Features

  • Packaging Quantity  30

  • Packaging Method  Box & Tray

Reference Number

  • TE Internal Number CAT-D9934-A86
